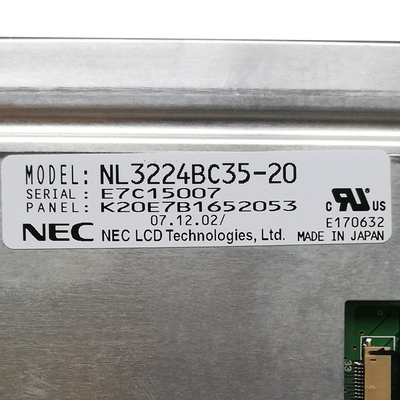

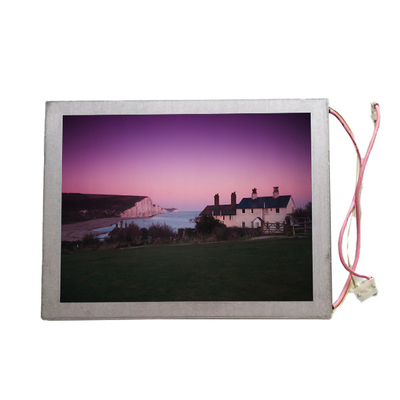

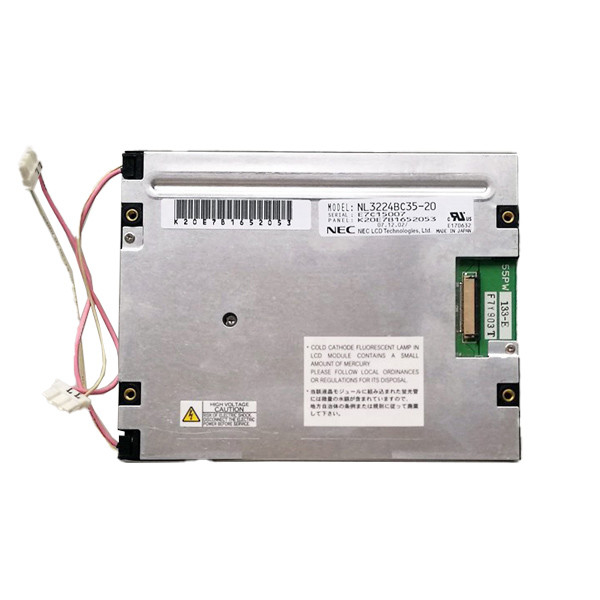

NL3224BC35-20 320*240 33 Pins Tft Lcd Display 5.5 Inch
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL3224BC35-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL3224BC35-20 | Diagonal Size: | 5.5" |
|---|---|---|---|
| Resolution: | 320(RGB)×240 [QVGA] 72PPI | Display Size: | 111.36(W)×83.52(H) Mm |
| Pixel Layout: | RGB Vertical Bar | Physical Dimension: | 134 × 104.5 × 13 Mm (H×V×D) |
| Visual Size: | 116.4 × 88.5 Mm (H×V) | ||
| High Light: | 33 Pins Tft Lcd Display,Tft Lcd Display 5.5Inch,NL3224BC35-20 Lcd Panel |
||
Product Description
5.5 inch NL3224BC35-20 320*240 33 pins tft lcd display
NL3224BC35-20 LCD Panel Product details :
| NEC LCD Screen NL3224BC35-20 | |
|---|---|
| manufacturer | NEC |
| Model Name | NL3224BC35-20 |
| Screen Size | 5.5 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 320(RGB)×240 [QVGA] 72PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 111.36 × 83.52 mm (H×V) |
| physical dimension | 134 × 104.5 × 13 mm (H×V×D) |
| Visual size | 116.4 × 88.5 mm (H×V) |
| Surface treatment | Antiglare, Hard coating (3H), Antireflection |
| Brightness (cd/m²) | 400 (Typ.) |
| Contrast | 400: 1 (Typ.) [Transmission] |
| Best angle | 12 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 55/55/50/40 (Typ.)(CR≥10) |
| responding speed | 5/25 (Typ.)(Tr/Td) ms |
| Number of colors | 262K, 50% NTSC |
| Backlight type | 2 pcs CCFL, 40K hours, without driver |
| Refresh rate | 60Hz |
| signal system | CMOS (1 ch, 6-bit), connector, 33 pins |
| Supply voltage | 3.3/5.0V (Typ.)(VCC) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -10 ~ 70 °C; Vibration resistance: 3.0G (29.4 m/s²) |
| 5.5 inch NL3224BC35-20 320*240 33 pins tft lcd display | |
Compatibility Assurance: Rest assured, the LCD screen you receive will be compatible with your device. While it may not be identical to the model specified in the title, please note that we prioritize sending compatible models. If you require an exact match, kindly reach out to us before making your purchase. In cases where our stock permits, we will provide photos of the exact model for your reference.
Precautionary Measures: Prior to ordering, we strongly advise removing your old screen. Additionally, please furnish us with details of your LCD model and laptop model. This information allows us to ensure that you receive the correct product. International shipping costs are significant, and we urge buyers to verify their requirements thoroughly to avoid any unnecessary expenses or inconvenience.
Consideration for Glued Notebooks: With modern notebooks often featuring glued components, separating the LCD screen from the cover or front touch panel can be challenging. Therefore, it is prudent to consider whether you require a standalone LCD screen or a complete LCD assembly before making your purchase. Many customers have encountered issues in the past due to this consideration. Hence, we recommend assessing your maintenance needs carefully to determine the most suitable option for your requirements.
NL3224BC35-20 LCD Screen About Company:
Specialization and Expertise: With a decade of experience in foreign trade, our company specializes in providing a wide range of computer spare parts. Our expertise lies in the professional sales of motherboards, graphics cards, screens, keyboards, and various other computer peripheral accessories. We are committed to offering high-quality products to meet the diverse needs of our customers.
Long-Term Partnership: We value establishing long-term partnerships with our clients. If you are interested in our products, we invite you to reach out to us. By collaborating with us, you can benefit from more favorable pricing and enhanced warranty policies. We prioritize building lasting relationships built on trust, reliability, and mutual benefit.
Terms and Conditions: By placing an order with us, you acknowledge and agree to abide by all the policies outlined above. We aim to ensure transparency and clarity in our business transactions, fostering a positive shopping experience for our customers.
NL3224BC35-20 LCD Panel Shipping and Package :
NL3224BC35-20 LCD Screen Return and Warranty:
Quality Inspection: Prior to shipment, all goods undergo rigorous inspection procedures twice to ensure optimal quality. However, if you find yourself unsatisfied with your purchase, you are entitled to exchange the items within one week of receipt. It is imperative to reach out to us within 24 hours of receiving your purchase to initiate the exchange process.
Warranty Coverage: Enjoy peace of mind with our comprehensive warranty coverage. All items are backed by a 6-month warranty period. Should any issues arise that are not attributable to human error, we will replace the item free of charge. Our commitment to providing top-notch after-sales service ensures that any problems encountered will be promptly addressed, with our team striving to deliver satisfactory resolutions to our valued customers.
Return Policy: To facilitate smooth returns, please ensure that all return items are in their original condition, complete with the original packaging and accessories. Please note that defects resulting from mishandling or improper use, such as breakage or scratching, are not covered under our warranty policy.
Shipping Instructions: When returning any items, we kindly request that you utilize EMS or your local postal service for shipping purposes. This helps expedite the return process and ensures the safe and secure transit of the item.
NL3224BC35-20 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of NL3224BC35-20 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of NL3224BC35-20 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of NL3224BC35-20 ?
A: We accept T/T , Paypal , western union
.
Q: How long is the warranty ?
A: We offer 90days warranty .
