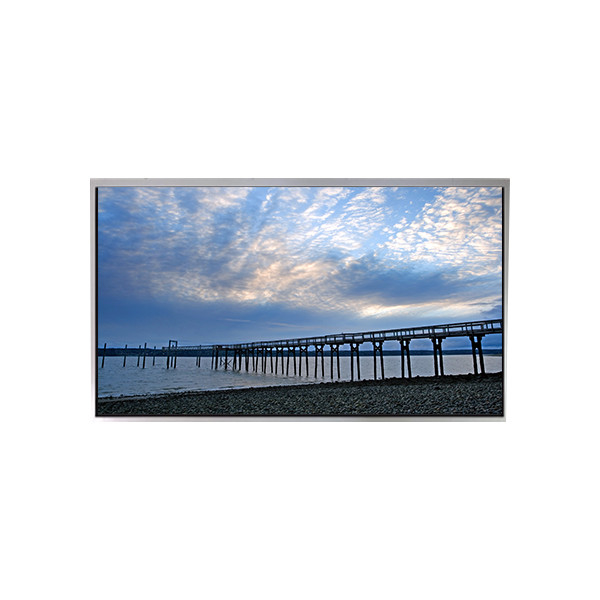

5.5 inch 720*1280 lcd display TA055JVHM03 for Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TA055JVHM03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TA055JVHM03 | Diagonal Size: | 5.5" |
|---|---|---|---|
| Resolution: | 720(RGB)×1280, WXGA 268PPI | Active Area: | 68.04(W)×120.96(H) Mm |
| Outline (mm): | 72.48(W)×149.05(H)×1.81(D) Mm | Bezel Opening: | 350 Cd/m² (Typ.) |
| View Direction: | Symmetry | Support Color: | 16.7M 100% NTSC |
| Frame Rate: | 60Hz | Designed For: | Mobile Phone |
Product Description
5.5 inch 720*1280 lcd display TA055JVHM03 for Mobile Phone
TA055JVHM03 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TA055JVHM03 |
| Diagonal Size | 5.5" |
| Panel Type | AM-OLED, Assembly |
| Resolution | 720(RGB)×1280, WXGA 268PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×120.96(H) mm |
| Bezel Opening | - |
| Outline Dim. | 72.48(W)×149.05(H)×1.81(D) mm |
| Luminance | 350 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Support Color | 16.7M 100% NTSC |
| Weight | TBD |
| Frame Rate | 60Hz |
| Treatment | - |
| Contrast Ratio | 10000:1 (Min.) (TM) |
| Response Time | 1 (Typ.)(Ton+Toff) |
| Operating Mode | - |
| Light Source | self |
| Designed For | Mobile Phone |
| Touch Panel | On-Cell Touch, I²C |
| Interface Type | MIPI (4 data lanes)40 pins Connector |
| Power Supply | 1.8/3.0/6.4/4.6V (Typ.)(VDDI/VDD/AVDD/PVDD) |
| Environment | Operating Temperature: -40 ~ 85 °C; Storage Temperature: -55 ~ 125 °C |
TA055JVHM03 LCD Screen payment:
-PayPal is our preferred payment method, as it is the fastest, simplest, and most secure way to pay for goods or services online.
-PayPal provides protection for buyers and sellers in case of any issues. In addition, we also support payment methods such as T/T and Western Union.
-Order verification: Once you place an order, we will promptly review your purchase details to ensure everything is correct and there are no discrepancies.
-The price does not include tariffs. Different countries may require buyers to clear customs and pay tariffs.
TA055JVHM03 LCD Screen About Company:
Specialization and Expertise: With a decade of experience in foreign trade, our company specializes in providing a wide range of computer spare parts. Our expertise lies in the professional sales of motherboards, graphics cards, screens, keyboards, and various other computer peripheral accessories. We are committed to offering high-quality products to meet the diverse needs of our customers.
Long-Term Partnership: We value establishing long-term partnerships with our clients. If you are interested in our products, we invite you to reach out to us. By collaborating with us, you can benefit from more favorable pricing and enhanced warranty policies. We prioritize building lasting relationships built on trust, reliability, and mutual benefit.
Terms and Conditions: By placing an order with us, you acknowledge and agree to abide by all the policies outlined above. We aim to ensure transparency and clarity in our business transactions, fostering a positive shopping experience for our customers.
TA055JVHM03 LCD Panel Shipping and Package :
TA055JVHM03 LCD Screen Acceptable returns and exchanges:
✅ Quality issue (7-30 day no reason return or exchange, depending on product category)
Bright spots, dark spots, and bad spots appear on the screen (exceeding industry standards, such as ISO 9241-307 Class II)
Display abnormalities (flicker, color cast, uneven backlight, residual image, etc.)
Physical damage (non-human damage, such as internal cable breakage, panel fragmentation)
Interface malfunction (HDMI/eDP/LVDS interface cannot recognize signals properly)
✅ Transportation damage (feedback within 48 hours after receipt)
Severe damage to the outer packaging (such as cardboard box rupture, obvious compression deformation)
Screen breakage and leakage (unboxing inspection video required)
✅ Wrong/missed delivery (feedback within 7 days)
The received model, size, and interface do not match the order
Missing accessories (such as screws, cables, driver boards, etc.)
TA055JVHM03 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of TA055JVHM03 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of TA055JVHM03 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of TA055JVHM03 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
