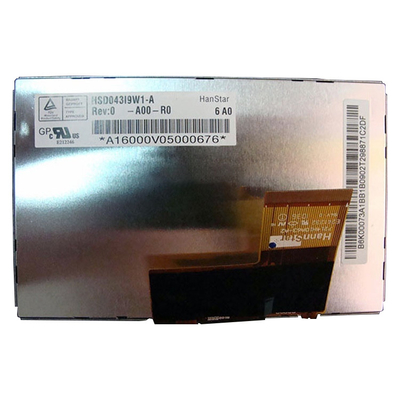

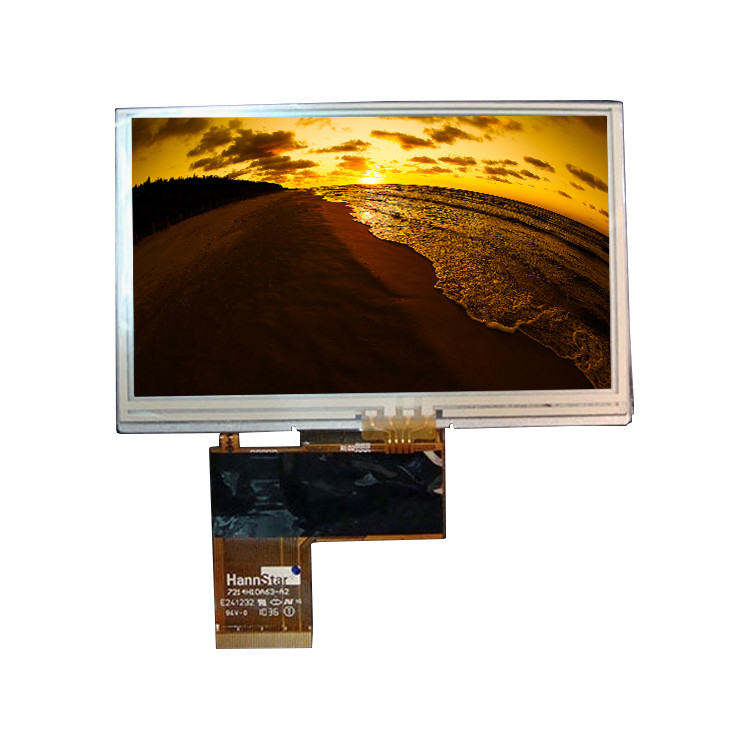

New HSD043I9W1-A00-R00 LCD screen 4.3 inch LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |

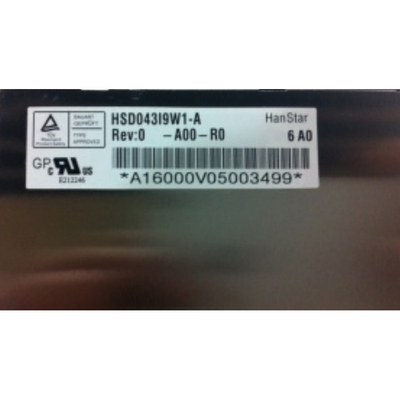

| Model Number: | HSD043I9W1-A00-R00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD043I9W1-A00-R00 | Diagonal Size: | 4.3" |
|---|---|---|---|
| Resolution: | 480(RGB)×272, WQVGA 128PPI | Active Area: | 95.04(W)×53.856(H) Mm |
| Outline Size: | 105.5(W)×67.2(H) ×4.25(D) Mm | Surface: | Antiglare, Hard Coating (3H) |
| Touch Screen: | 4-wire Resistive Touch | Panel Weight: | 57.5g (Typ.) |
| Used For: | Desktop Monitor / Industrial | Signal Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
Product Description
New HSD043I9W1-A00-R00 LCD screen 4.3 inch LCD Panel
HSD043I9W1-A00-R00 LCD Panel Product details :
| HannStar LCD Screen HSD043I9W1-A00-R00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD043I9W1-A00-R00 |
| Diagonal Size | 4.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×272, WQVGA 128PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 95.04(W)×53.856(H) mm |
| Outline Dim. | 105.5(W)×67.2(H)×4.25(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M |
| Light Source | WLED [6S2P] , 10K hours , W/O Driver |
| Weight | 57.5g (Typ.) |
| Designed For | Portable Navigation / MP3 PMP |
| Touch Panel | 4-wire Resistive Touch |

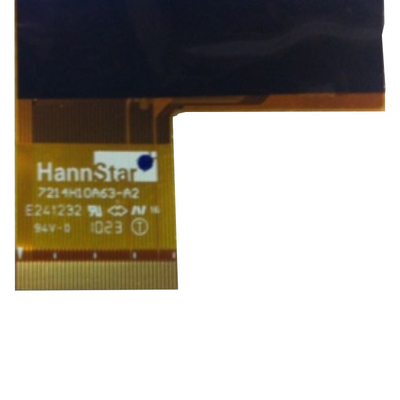

| Interface Type | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| New HSD043I9W1-A00-R00 LCD screen 4.3 inch LCD Panel | |
HSD043I9W1-A00-R00 LCD Screen Specification :
Installation Instructions: Not Included. Note: There is a layer of polarizer film under the protective film on the front of the panel. If the display appears blurry after installation, please remove the polarizer film.
Quality Assurance: Prior to dispatch, we conduct comprehensive quality checks and testing to ensure product reliability and performance.
Compatibility: This item is suitable for replacing touch panels that are broken, damaged, cracked, or otherwise unusable.
HSD043I9W1-A00-R00 LCD Panel Shipping and Package :
HSD043I9W1-A00-R00 LCD Screen Return Policy:
Warranty Coverage:
Used products: 90 days warranty.
New products: 180 days warranty.
Please note that this warranty does not cover consumables.
We provide a warranty for all of our products to ensure customer satisfaction and peace of mind.Buyers are responsible for bearing the shipping costs when returning both defective and non-defective items to us.Return items should be in the same good condition as when we originally sent them, without any damage.Approval by our team is required for all returned items, and they should be in their original box as when initially sent.In the case of receiving physically damaged items, please report this within 2 days of receipt.For all NON-Seller Mistake returns, a 15% re-stocking fee is applicable, and shipping and handling charges are non-refundable. (For example, if you bought the wrong item)
