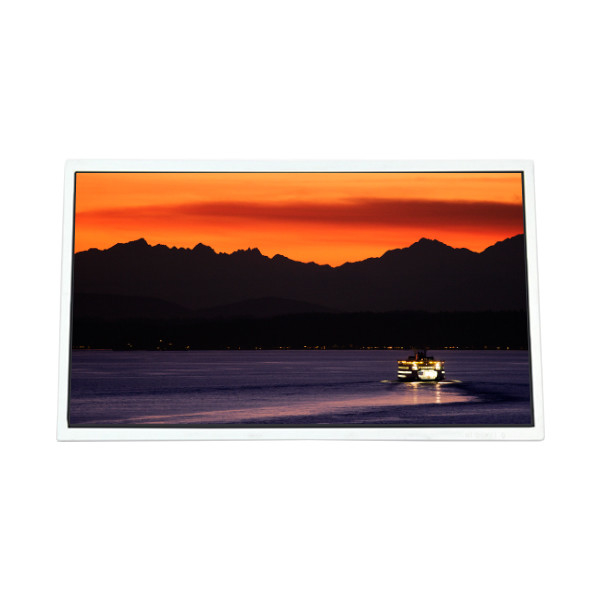

23.8 inch LCD Display Screen MV238FHM-N50 LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238FHM-N50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV238FHM-N50 | Diagonal Size: | 23.8" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 92PPI | Pixel Layout: | RGB Vertical Stripe |
| Outline (mm): | 534.9(W)×306.95(H)×13.4(D) | Active Area: | 527.04(W)×296.46(H) Mm |
| Luminance: | 250 (Typ.)(cd/m²) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Color Depth: | 16.7M 100% SRGB | Used For: | Desktop Monitor |
Product Description
23.8 inch LCD Display Screen MV238FHM-N50 LCD Panel
MV238FHM-N50 LCD Panel Product details :
| Brand | BOE |
| Model P/N | MV238FHM-N50 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline(mm) | 534.9(W)×306.95(H)×13.4(D) |
| Luminance | 250 (Typ.)(cd/m²) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 100% sRGB |
| Mass | 2.25Kgs (Typ.) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | ADS, Normally Black, Transmissive |
| Response | 14 (Typ.)(G to G) ms |
| Backlight | 11S6P WLED , 30K hours , No Driver |
| Used for | Desktop Monitor |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
MV238FHM-N50 LCD Screen Tips:
Installation precautions:
Do not use adhesive to stick the screen before confirming its functionality.
We do not accept returns or refunds for screens that have already been glued in.
Testing and Validation:
Before installation, conduct a comprehensive test on the LCD screen.
Record a video during the testing process to ensure proper functionality.
Installation can only proceed after confirming the operational status of the screen.
If any malfunctions occur, please provide us with a test video for easy resolution.
MV238FHM-N50 LCD Panel Shipping and Package :
MV238FHM-N50 LCD Screen Returns Policy:
1. The return shipping fee shall be borne by the customer; We will pay for the cost of returning the goods to the customer.
2. We suggest hiring professionals to install the product and contacting us in case of installation issues. However, we are not responsible for installation or uninstallation.
If you are not satisfied with the received product, please return, exchange or refund it within 30 days. Please contact me before returning the item.
Attention: Component damage or missing
Our products are all brand new and undergo careful inspection before shipment. Please check the package before the courier leaves.
Defective items must be reported and returned to us within the warranty period (if possible, original packaging should also be used). You must tell us what the defect is and provide us with your contact information.
MV238FHM-N50 LCD Panel FAQ :
Q: Can You declare my order of MV238FHM-N50 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: If I place order now,when will you ship the goods of MV238FHM-N50 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of MV238FHM-N50 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
