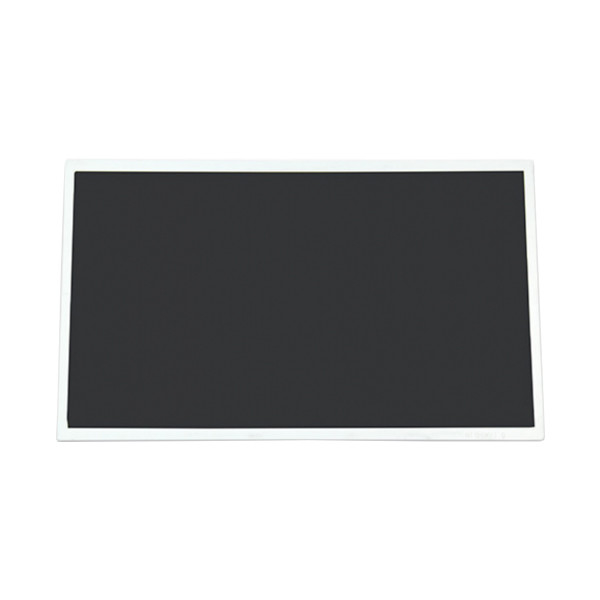

MV238FHM-N00 23.8 inch LCD Display 1920*1080 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238FHM-N00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV238FHM-N00 | Diagonal Size: | 23.8" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 92PPI | Pixel Layout: | RGB Vertical Stripe |
| Outline (mm): | 537.4(H)×325.85(V)×14.4(D) Mm | Active Area: | 527.04(W)×296.46(H) Mm |
| Luminance: | 250 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Light Source: | WLED [16S4P], 30K Hours, W/O Driver | Designed For: | Desktop Monitor |
Product Description
MV238FHM-N00 23.8 inch LCD Display 1920*1080 LCD Screen
MV238FHM-N00 LCD Panel Product details :
| Brand | BOE |
| Model P/N | MV238FHM-N00 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline Dim. | 537.4(H)×325.85(V)×14.4(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 72%NTSC |
| Light Source | WLED [16S4P], 30K hours, W/O Driver |
| Weight | TBD |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
MV238FHM-N00 LCD Screen About us:
We have over 10 years of experience in the electronics industry, and our products sell well in both domestic and overseas markets.
We will provide you with bulk orders at an acceptable low price.
2. There are various types of parts, please visit our store to learn more.
3. Fast delivery: Most products will be shipped within 24 hours.
4. Provide extensive after-sales support through SMS, email, and other means.
5. Friendly return policy.
MV238FHM-N00 LCD Panel Shipping and Package :
MV238FHM-N00 LCD Screen After arrival:
1. Ensure that the motherboard is working properly and then install it correctly.
2.In the video, you can see models with our company logo (YONGS) and fragile labels
3.If you cannot use it correctly according to the operation, we will process the answer as soon as possible.
As long as it is confirmed to be our reason, our company will take responsibility.
MV238FHM-N00 LCD Panel FAQ :
Q: Can you tested the MV238FHM-N00 before shipping ?
A: Of course , our lcd panel MV238FHM-N00 was Strictly tested before shipping.
Q: How to order MV238FHM-N00 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel MV238FHM-N00 received can't work ?
A:MV238FHM-N00 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
