H499TAX03.0 5.0 inch 720*1280 tft lcd panel LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | H499TAX03.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | H499TAX03.0 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Luminance: | 0 Cd/m² | Outline (mm): | 64.1(W)×116.5(H)×0.3(D) Mm |
| Pixel Layout: | RGB Vertical Stripe | Active Area: | 62.1(W)×110.4(H) Mm |
| Used For: | Mobile Phone | Color Depth: | 16.7M 71%NTSC |
| Backlight: | No B/L | Work Mode: | AHVA, Normally Black, Transmissive |
Product Description

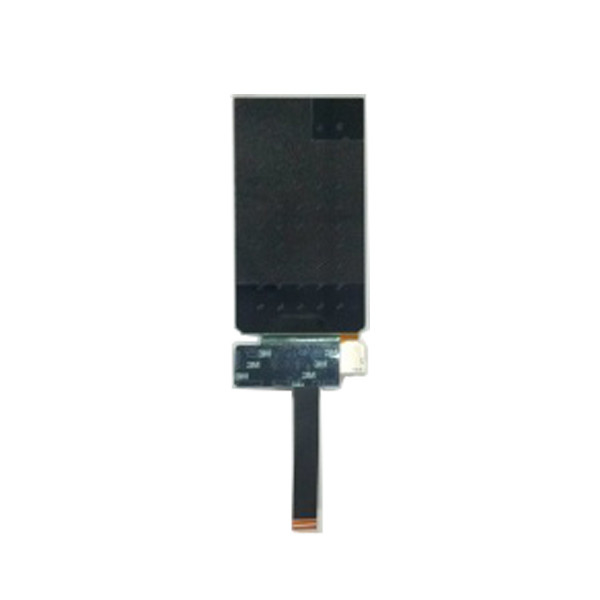

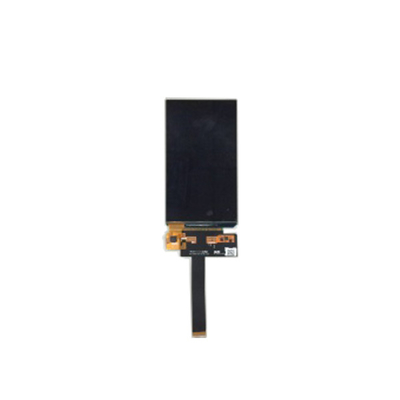

H499TAX03.0 5.0 inch 720*1280 tft lcd panel LCD Display
H499TAX03.0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | H499TAX03.0 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, CELL, COG |
| Resolution | 720(RGB)×1280, WXGA 294PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 62.1(W)×110.4(H) mm |
| Bezel Opening | - |
| Outline Size | 64.1(W)×116.5(H)×0.3(D) mm |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 35 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Glass Thickness | - |
| Transmissivity | 4.8% (Typ.)(with APCF) |
| Color Depth | 16.7M 71%NTSC |
| Backlight | No B/L |
| Mass | 10.0g (Typ.) |
| Used for | Mobile Phone |
| Refresh Rate | - |
| Touchscreen | PCAP |
| Driver IC list | Built-in COG FT8006M |
| Signal Type | MIPI |
| Max. Ratings | Storage Temp.: -55 ~ 110 °C Operating Temp.: -30 ~ 70 °C |
H499TAX03.0 LCD Screen About delivery :
H499TAX03.0 LCD Panel Shipping and Package :
H499TAX03.0 LCD Screen warranty:
We offer a standard 12-month warranty.
All products we sell come with a warranty period of at least 12 months (unless otherwise stated). If you encounter any issues with any products purchased from us, please contact us via email.
If your product malfunctions within the first 30 days of purchase, you can return the item for replacement or refund, provided that you return the device in the same condition as it was supplied. This will not affect any legal rights you may have. Please contact us via email to report your issue. If we find any problems with the product, we will inform you on how to use the eBay return system and provide you with a free return label.
H499TAX03.0 LCD Panel FAQ :
Q: Can I pay my order of H499TAX03.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of H499TAX03.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of H499TAX03.0 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
