new LM133LF1L03 LCD screen For Acer spin SP513-52N screen assembly
Product Details:
| Place of Origin: | China |
| Brand Name: | PANDA |
| Model Number: | LM133LF1L03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM133LF1L03 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 166PPI | Active Area: | 293.76(W)×165.24(H) Mm |
| Outline Size: | 305.2(W)×188.1(H) ×2.85(D) Mm | Display Mode: | FFS, Normally Black, Transmissive |
| Response Time: | 25 (Typ.)(Tr+Td) | Shape Style: | Slim (PCBA Flat, T≤3.2mm) |
| Application: | Laptop | Signal Interface: | EDP (2 Lanes) , 30 Pins Connector |
Product Description

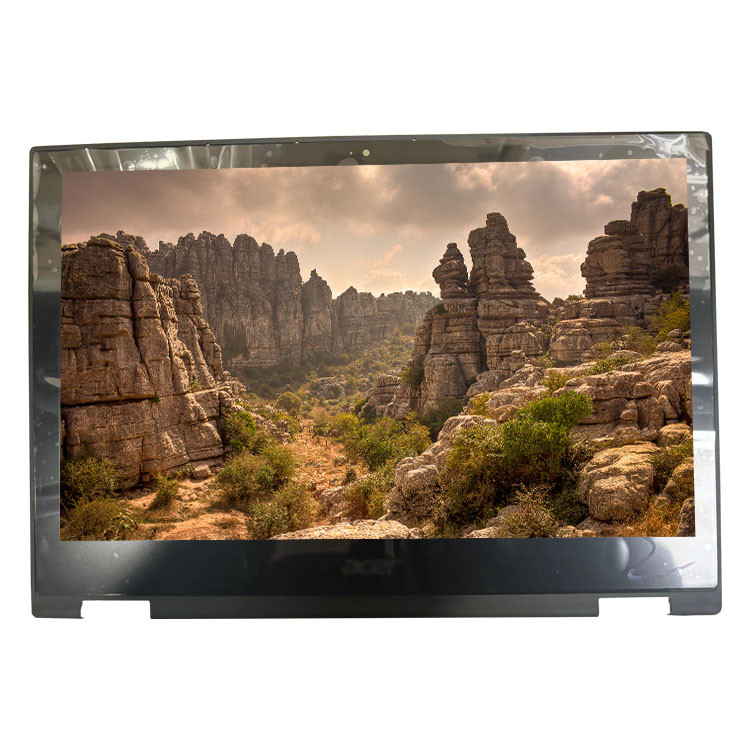

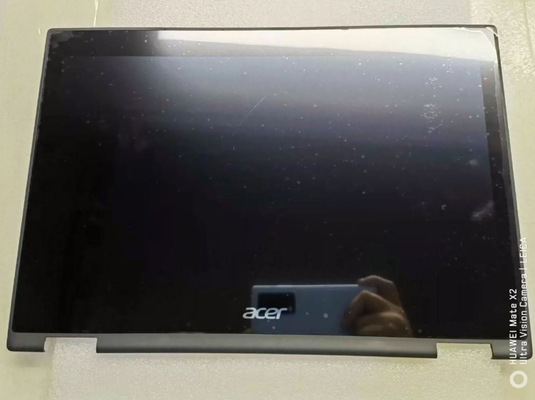

new LM133LF1L03 LCD screen For Acer spin SP513-52N screen assembly
LM133LF1L03 LCD Panel Product details :

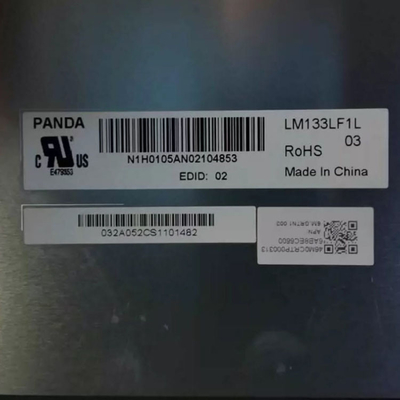

| PANDA LCD Screen LM133LF1L03 | |
|---|---|
| Manufacturer | PANDA |
| Model P/N | LM133LF1L03 |
| Diagonal Size | 13.3" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 166PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.76(W)×165.24(H) mm |
| Outline Size | 305.2(W)×188.1(H) ×2.85(D) mm |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | FFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.7M |
| Lamp Type | WLED , 10K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal Interface | eDP (2 Lanes) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| new LM133LF1L03 LCD screen For Acer spin SP513-52N screen assembly | |
LM133LF1L03 LCD Screen Payment For Resellers :
Greetings from YONGS, located in Shenzhen! With over 12 years of experience in the laptop parts sourcing field, we take pride in our established reputation and expertise. Our core mission is to collaborate with retailers and repairers globally, facilitating the sourcing of laptop and mobile phone parts while optimizing cost efficiency through consolidated shipping.
Here's what sets us apart:
Extensive Experience: With over a decade of industry experience, we have honed our skills and knowledge to effectively meet the diverse needs of our clients.
Global Partnerships: We have cultivated strong partnerships with retailers and repairers worldwide, enabling us to access a wide range of quality laptop and mobile phone parts.
Cost Savings: By leveraging our network and expertise, we offer consolidated shipping options that help minimize costs for our valued resellers.
Whether you're in need of LCD screens, batteries, keyboards, or other laptop and mobile phone parts, YONGS is your trusted partner for sourcing reliable products at competitive prices. Contact us today to discuss your requirements and discover how we can support your business needs effectively.

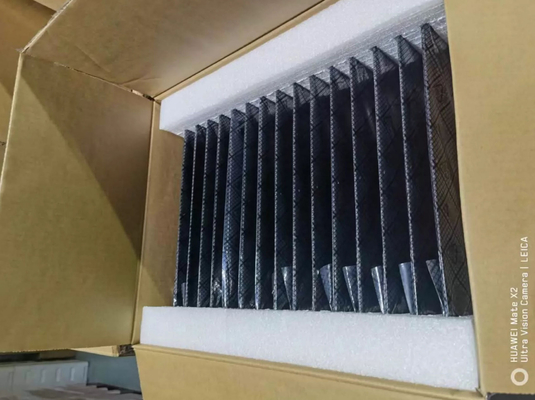

LM133LF1L03 LCD Panel Shipping and Package :
LM133LF1L03 LCD Screen Warranty Policy:
120-Days Replacement Warranty: We offer a 120-day replacement warranty for cases of DOA (Dead On Arrival) and all manufacturer defects. This includes issues such as vertical and horizontal lines, fuzzy images, and distorted images. If you encounter any of these problems within the warranty period, please contact us promptly for a replacement.
Dead Pixel Tolerance: In line with ISO 13406-2 standards, it's important to note that 2-5 dead pixels are considered acceptable within the industry norms. If you do not agree with this standard, we kindly ask that you refrain from purchasing this product.
LM133LF1L03 LCD Screen Returns :
Damaged or Wrong Item: In the event that you receive a damaged or incorrect item, please reach out to us promptly via Alibaba message. We will make arrangements for the return and replacement of the item without delay.
Return Period: Returns are accepted within a 30-day period following the receipt of the item. This timeframe allows you sufficient time to inspect the product and initiate a return if necessary.
Safe Packaging: When returning the item, please ensure that it is safely packaged, similar to how it was originally sent to you. LCD screens are delicate and prone to damage during transit, so it is crucial to use the original packaging or pack it securely to prevent any further damage.
Buyer Responsibility: In cases where the buyer has purchased the wrong product, wrong size, or has simply changed their mind, the buyer is responsible for covering the return shipping costs. This policy ensures fairness and allows us to continue offering competitive prices on our products.
LM133LF1L03 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order LM133LF1L03 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you declared low value for my order LM133LF1L03 when shipping?
A: Yes, We can do it for you if you need.
Q: What happen if the lcd panel LM133LF1L03 I received can't work ?
A: Our lcd display LM133LF1L03 tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
