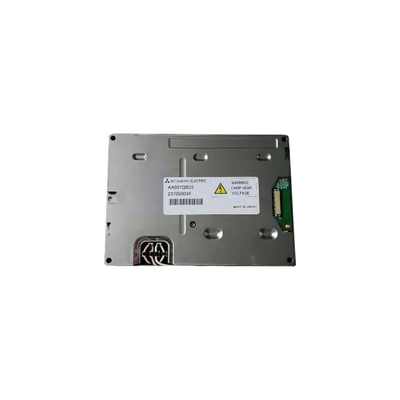

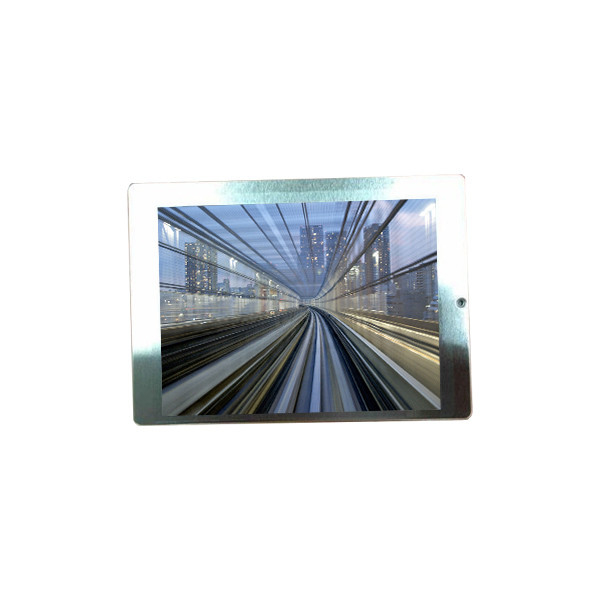

5.7 inch 320*240 33 pin TFT LCD Display AA057QB03
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA057QB03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AA057QB03 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320(RGB)×240, QVGA 70PPI | Active Area: | 115.2(W)×86.4(H) Mm |
| Outline Size: | 144(W)×104.8(H) ×13.5(D) Mm | Bezel Opening: | 119.8(W)×91.0(H) Mm |
| Surface: | Clear, Hard Coating (3H) | Weight: | 220g (Typ.) |
| Application: | Industrial | Signal Interface: | CMOS (1 Ch, 6-bit) , 33 Pins Connector |
Product Description
5.7 inch 320*240 33 pin TFT LCD Display AA057QB03
AA057QB03 LCD Panel Product details :
| Mitsubishi LCD SCREEN AA057QB03 | |
|---|---|
| manufacturer | Mitsubishi |
| Model Name | AA057QB03 |
| screen size | 5.7 inch |
| Screen type | LCM , a-Si TFT-LCD |
| Pixel Number | 320(RGB)×240 (QVGA) 70PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 115.2 × 86.4 (H×V) |
| Outline(mm) | 144 × 104.8 × 13.5 (H×V×D) |
| Bezel Area(mm) | 119.8 × 91.0 (H×V) |
| Treatment | Clear, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 450 : 1 (Typ.) (TM) |
| Response | 10/25 (Typ.)(Tr/Td) ms |
| Viewing Angle | 60/60/60/40 (Typ.)(CR≥10) |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 51% NTSC |
| Backlight | 1 pcs CCFL , 50K hours , No Driver |
| Mass | 220g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without5. |
| Signal Type | CMOS (1 ch, 6-bit) , 33 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 5.7 inch 320*240 33 pin TFT LCD Display AA057QB03 | |
AA057QB03 LCD Screen Notice:
Before placing your order, we kindly request you to carefully review and confirm whether the screen size, resolution, backlight type, interface type, and location are compatible with your laptop. If you are unsure or have any questions, please feel free to reach out to us for assistance.
To ensure prompt delivery, please provide us with your accurate contact details.
If you wish for us to declare a lower value to potentially reduce customs taxes, please inform us accordingly. However, please note that by doing so, you accept full responsibility for any associated risks.
AA057QB03 LCD Panel Shipping and Package :
AA057QB03 LCD Screen International Orders:
The buyer assumes responsibility for all customs fees and import taxes associated with international orders.
International orders may experience extended delivery times due to customs processing delays.
When shipping to Japan or South Korea via FedEx or DHL, the actual price of the item will be declared. Additionally, recipients in South Korea must provide a customs clearance serial number, for instance: "P123123456789". Please ensure to furnish us with the customs clearance serial number.
AA057QB03 LCD Screen About Item and Shipping Price:
For products that are seldom or never sold, the listed item price may not be accurate. Please contact us for an updated and precise quote.
Shipping prices to remote countries or islands may vary significantly. Kindly reach out to us for an accurate shipping quote tailored to your location.
AA057QB03 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of AA057QB03 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of AA057QB03 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of AA057QB03 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of AA057QB03 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
