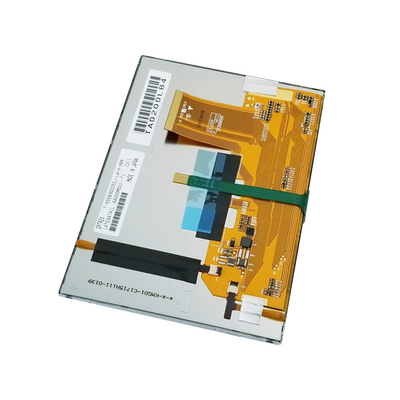

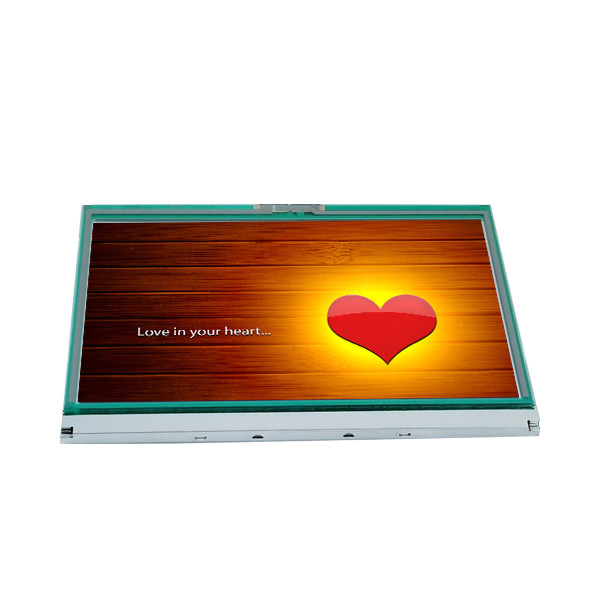

AA050MG01--T1 5.0 inch LCD display 800*480 Lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA050MG01--T1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | AA050MG01--T1 | Panel Size: | 5.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 188PPI | Active Area: | 108(W)×64.8(H) Mm |
| Bezel Opening: | 110.0(W)×66.8(H) Mm | Outline Size: | 118.5(W)×84.7(H) ×6.3(D) Mm |
| Touch Screen: | 4-wire Resistive Touch | Weight: | 99.0g (Typ.) |
| Application: | Industrial | Signal Interface: | CMOS (1 Ch, 8-bit) , 45 Pins FPC |
Product Description
AA050MG01--T1 5.0 inch LCD display 800*480 Lcd screen
AA050MG01--T1 Product details :
| Mitsubishi LCD SCREEN AA050MG01--T1 | |
|---|---|
| manufacturer | Mitsubishi |
| Model Name | AA050MG01--T1 |
| Panel Size | 5 inch |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480 [WVGA] 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 108(H)×64.8(V) mm |
| Bezel Opening | 110.0(W)×66.8(H) mm |
| Outline Size | 118.5(W)×84.7(H) ×6.3(D) mm |
| Surface | Clear, Hard coating (3H) |
| Brightness | 640 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | SWV, Normally Black, Transmissive |
| Response Time | 12/12 (Typ.)(Tr/Td) |
| Lamp Type | 4 strings WLED , Without Driver |
| Display Colors | 16.7M 50% NTSC |
| Panel Weight | 99.0g (Typ.) |
| Signal Interface | CMOS (1 ch, 8-bit) , 45 pins FPC |
| AA050MG01--T1 5.0 inch LCD display 800*480 Lcd screen | |
AA050MG01--T1 Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
AA050MG01--T1 Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
AA050MG01--T1 Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
AA050MG01--T1 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
AA050MG01--T1 Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
AA050MG01--T1 FAQ:
Q: How do you ship my goods AA050MG01--T1 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of Mitsubishi AA050MG01--T1 ?
A: 90 days warranty .
Q: How can I trace my order of AA050MG01--T1 ?
A: we will give you tracking number then you can trace your order form website.
Q: Can you give me a discount if I need a large quantity of AA050MG01--T1 ?
A: Of course!If you make a large order, we will give you a discount.
AA050MG01--T1 Shippment & Packing
