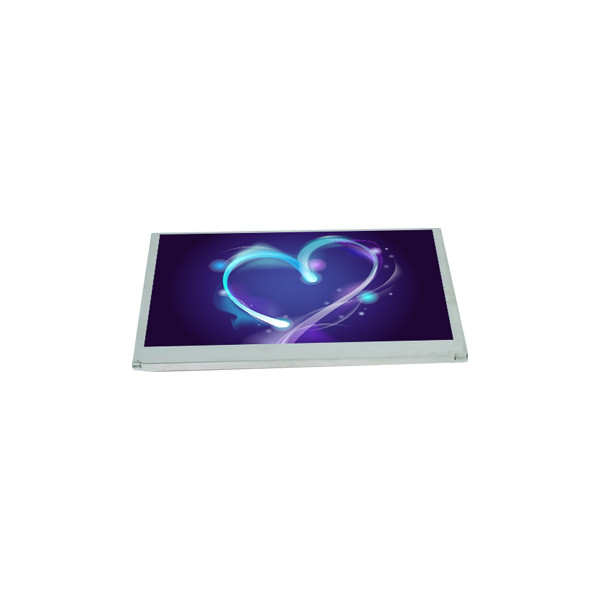

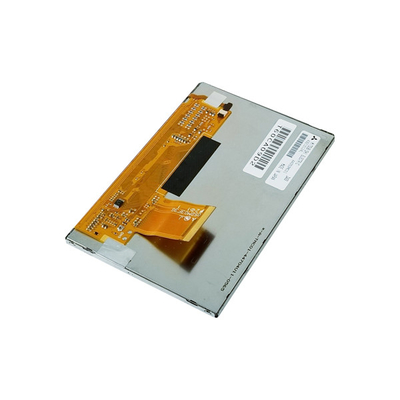

AA050MC01--T1 5.0 inch LCD display 800*480 LCD touch screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA050MC01--T1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | AA050MC01--T1 | Panel Size: | 5.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 188PPI | Active Area: | 108(W)×64.8(H) Mm |
| Bezel Opening: | 110.0(W)×66.8(H) Mm | Outline(mm): | 118.5(W)×77.8(H)×6.5(D) Mm |
| Touch Panel: | 4-wire Resistive Touch | Weight: | 89.0g (Typ.) |
| Designed For: | Industrial | Signal Type: | CMOS (1 Ch, 8-bit) , 45 Pins FPC |
Product Description
AA050MC01--T1 5.0 inch LCD display 800*480 LCD touch screen
AA050MC01--T1 Product details :
| Mitsubishi LCD SCREEN AA050MC01--T1 | |
|---|---|
| Manufacturer | Mitsubishi |
| Model Name | AA050MC01--T1 |
| Panel Size | 5 inch |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480 [WVGA] 188PPI |
| Configuration | RGB Vertical Stripe |
| Display Area | 108(W)×64.8(H) mm |
| Bezel Opening | 110.0(W)×66.8(H) mm |
| Outline Size | 118.5(W)×77.8(H) ×6.5(D) mm |
| Surface | Clear, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Colors | 16.7M 50% NTSC |
| Frequency | 60Hz |
| Panel Weight | 89.0g (Typ.) |
| Signal Interface | CMOS (1 ch, 8-bit) , 45 pins FPC |
| AA050MC01--T1 5.0 inch LCD display 800*480 LCD touch screen | |
AA050MC01--T1 Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
AA050MC01--T1 Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
AA050MC01--T1 Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
AA050MC01--T1 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
AA050MC01--T1 Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
AA050MC01--T1 FAQ:
Q: If I place order now,when will you ship the goods of AA050MC01--T1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of AA050MC01--T1 ?
A: Of course!sample order is welcome !
Q: How to make payment of AA050MC01--T1 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of AA050MC01--T1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
AA050MC01--T1 Shippment & Packing
