5.0 inch 800*480 LCD Screen Module AA050MA01
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA050MA01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | AA050MA01 | Panel Size: | 5.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 188PPI | Active Area: | 108(W)×64.8(H) Mm |
| Bezel Opening: | 110.0(W)×66.8(H) Mm | Outline Dim.: | 120(H)×76.5(V) ×5.8(D) Mm |
| Treatment: | Clear, Hard Coating (2H) | Weight: | 75.0g (Typ.) |
| Designed For: | Industrial | Signal Interface: | CMOS (1 Ch, 6/8-bit) , 45 Pins Connector |
Product Description

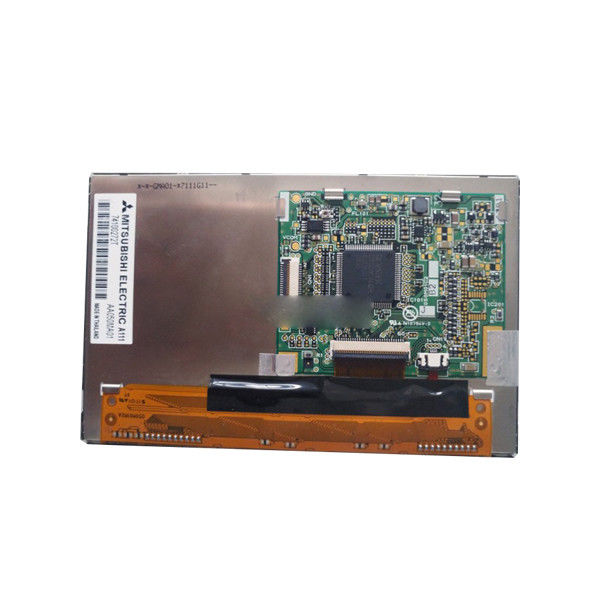

5.0 inch 800*480 LCD Screen Module AA050MA01
AA050MA01 Product details :
| Mitsubishi LCD SCREEN AA050MA01 | |
|---|---|
| manufacturer | Mitsubishi |
| Model Name | AA050MA01 |
| Panel Size | 5 inch |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480 [WVGA] 188PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 108(H)×64.8(V) mm |
| Bezel Area | 110.0(H)×66.8(V) mm |
| Outline Dim | 120(H)×76.5(V) ×5.8(D) mm |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Support Color | 262K/16.7M 49% NTSC |
| Light Source | WLED [2 strings] , W/O Driver |
| Weight | 75.0g (Typ.) |
| Frame Rate | 60Hz |
| Interface Type | CMOS (1 ch, 6/8-bit) , 45 pins Connector |
| 5.0 inch 800*480 LCD Screen Module AA050MA01 | |
AA050MA01 Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
AA050MA01 Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
AA050MA01 Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
AA050MA01 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
AA050MA01 Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
AA050MA01 FAQ:
Q: How do you ship my goods AA050MA01 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of AA050MA01 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel Mitsubishi AA050MA01 at a very low value ?
A: Yes , we can . pls inform us before shipping .
AA050MA01 Shippment & Packing
