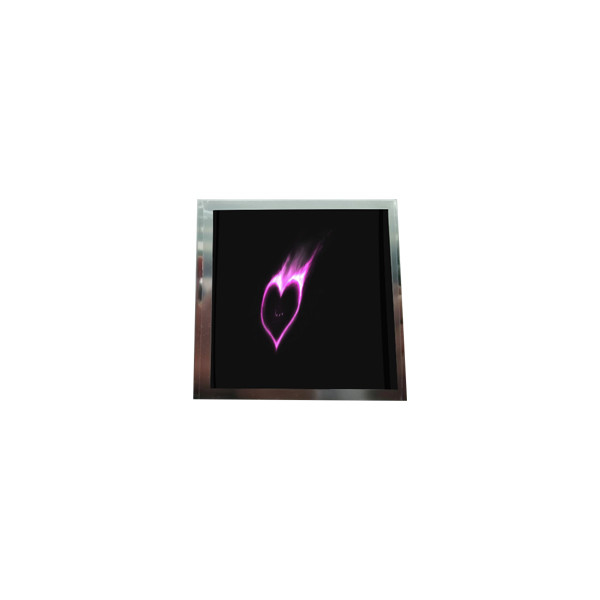

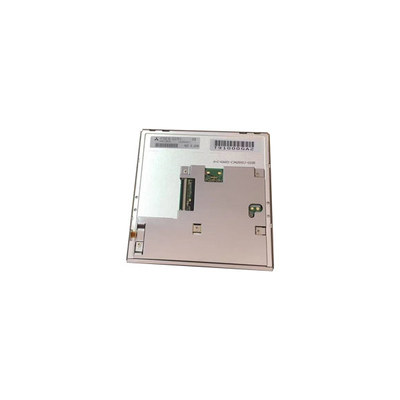

5.0 inch screen lcd panel 640*640 lcd module AA050AA01
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA050AA01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | AA050AA01 | Panel Size: | 5.0" |
|---|---|---|---|
| Resolution: | 640(RGB)×640 182PPI | Active Area: | 89.3(W)×89.3(H) Mm |
| Bezel Opening: | 91.28(W)×91.28(H) Mm | Outline Size: | 103.8(W)×105.8(H) ×12.4(D) Mm |
| Surface: | Antiglare, Hard Coating (3H) | Weight: | 155g (Typ.) |
| Application: | Industrial / Outdoor High Brightness | Signal Interface: | CMOS (1 Ch, 6/8-bit) , 45 Pins Connector |
Product Description
5.0 inch screen lcd panel 640*640 lcd module AA050AA01
AA050AA01 Product details :
| Mitsubishi LCD SCREEN AA050AA01 | |
|---|---|
| Manufacturer | Mitsubishi |
| Model Name | AA050AA01 |
| Panel Size | 5 inch |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 640(RGB)×640, 182PPI |
| Configuration | RGB Vertical Stripe |
| Display Area | 89.3(W)×89.3(H) mm |
| Bezel Opening | 91.28(W)×91.28(H) mm |
| Outline Size | 103.8(W)×105.8(H) ×12.4(D) mm |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/70 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K/16.7M 39% NTSC |
| Lamp Type | 2 strings WLED , 100K hours , Without Driver |
| Weight | 155g (Typ.) |
| Signal Interface | CMOS (1 ch, 6/8-bit) , 45 pins Connector |
| 5.0 inch screen lcd panel 640*640 lcd module AA050AA01 | |
AA050AA01 Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
AA050AA01 Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
AA050AA01 Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
AA050AA01 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
AA050AA01 Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
AA050AA01 FAQ:
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of AA050AA01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for AA050AA01 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the AA050AA01 I receive can't work ?
A: AA050AA01 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
