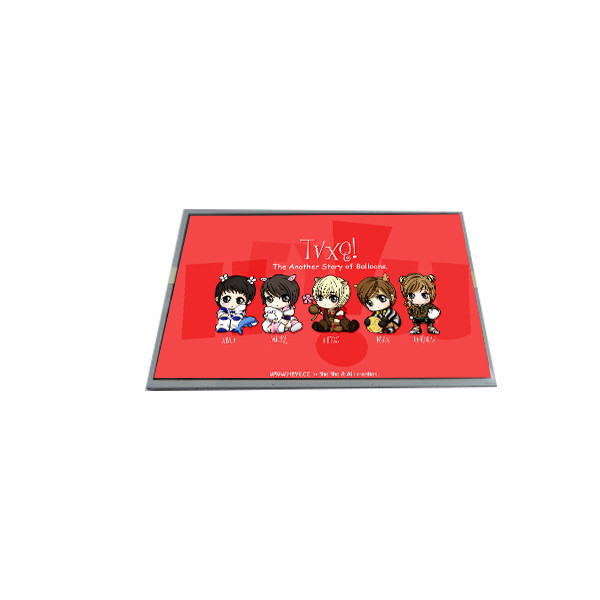

23.0 Inch 1920*1080 LM230WF5-TRA1 TFT Lcd Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | RAKEN |
| Model Number: | LM230WF5-TRA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LM230WF5-TRA1 | Panel Size: | 23.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 95PPI | Active Area(mm): | 509.184(W)×286.416(H) Mm |
| Outline Dim.: | 533.2(H)×312(V)×8.85(D) Mm | Bezel Opening: | 513.8(W)×291.0(H) Mm |
| Treatment: | Antiglare, Hard Coating (3H) | Response Time: | 1.3/3.7 (Typ.)(Tr/Td) |
| Designed For: | Desktop Monitor | Interface Type: | Mini LVDS , 50 Pins Connector |
Product Description
23.0 Inch 1920*1080 LM230WF5-TRA1 TFT Lcd Screen Display
LM230WF5-TRA1 Product details :
| Brand | RAKEN |
| Model P/N | LM230WF5-TRA1 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | 513.8(W)×291.0(H) mm |
| Outline Dim. | 533.2(H)×312(V)×8.85(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/75/85 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 68% NTSC |
| Light Source | WLED [4 strings] , 30K hours , W/O Driver |
| Weight | 1.49/1.57Kgs (Typ./Max.) |
| Designed For | Desktop Monitor |
| Frame Rate | 75Hz |
| Touch Panel | Without |
| Interface Type | Mini LVDS , 50 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
LM230WF5-TRA1 Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
LM230WF5-TRA1 Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
LM230WF5-TRA1 Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
LM230WF5-TRA1 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
LM230WF5-TRA1 Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
LM230WF5-TRA1 FAQ:
Q: If I place order now,when will you ship the goods of LM230WF5-TRA1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of LM230WF5-TRA1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of LM230WF5-TRA1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods LM230WF5-TRA1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
LM230WF5-TRA1 Shippment & Packing
