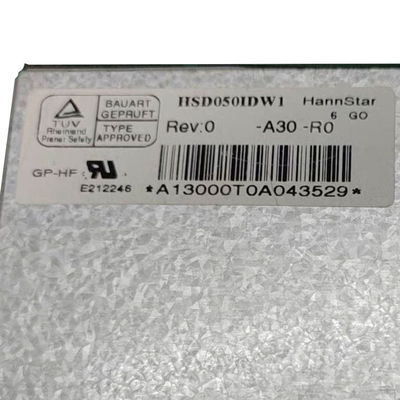

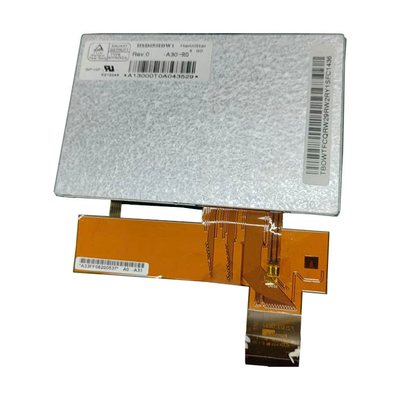

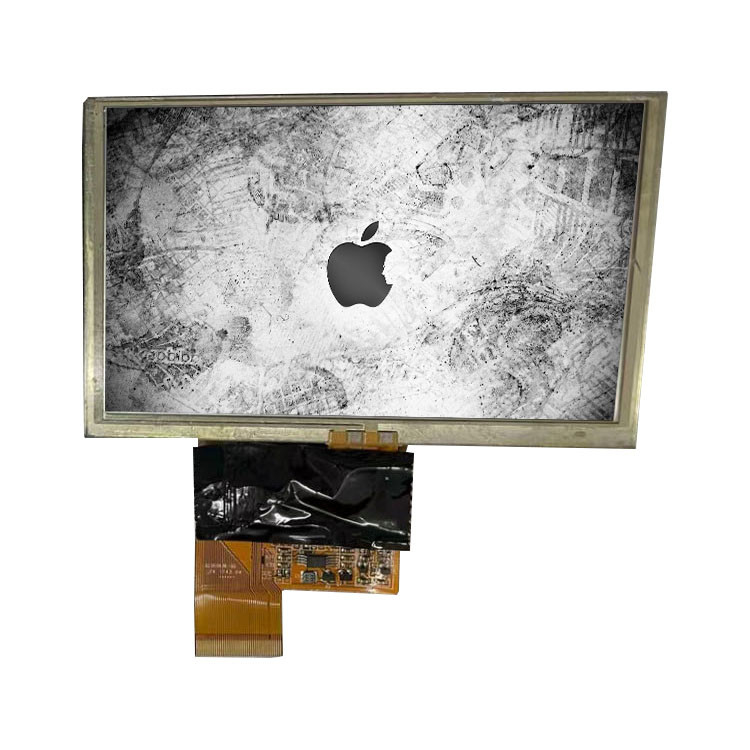

HSD050IDW1-A30-R0 touch screen panel LCD display TFT Module
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD050IDW1-A30-R0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD050IDW1-A30-R0 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 188PPI | Active Area: | 108(W)×64.8(H) Mm |
| Bezel Opening: | 110.4(W)×67.4(H) Mm | Outline Size: | 118.5(W)×77.55(H) ×4.7(D) Mm |
| Touch Panel: | 4-wire Resistive Touch, F/G | Weight: | 85.0g (Typ.) |
| Designed For: | Automotive Display / Portable Navigation / MID UMPC / MP3 PMP / Gaming | Interface Type: | TTL (1 Ch, 8-bit) , 40 Pins FPC |
Product Description
HSD050IDW1-A30-R0 touch screen panel LCD display TFT Module
HSD050IDW1-A30-R0 LCD Panel Product details :
| HannStar LCD Screen HSD050IDW1-A30-R0 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD050IDW1-A30-R0 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 108(W)×64.8(H) mm |
| Bezel Opening | 110.4(W)×67.4(H) mm |
| Outline Size | 118.5(W)×77.55(H) ×4.7(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 320 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Display Colors | 16.2M |
| Lamp Type | 7S2P WLED , 10K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | 4-wire Resistive Touch, F/G |
| Panel Weight | 85.0g (Typ.) |
| Application | Automotive Display / Portable Navigation / MID UMPC / MP3 PMP / Gaming |
| Signal Interface | TTL (1 ch, 8-bit) , 40 pins FPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| HSD050IDW1-A30-R0 touch screen panel LCD display TFT Module | |
HSD050IDW1-A30-R0 LCD Screen Notice:
Before placing your order, we kindly request you to carefully review and confirm whether the screen size, resolution, backlight type, interface type, and location are compatible with your laptop. If you are unsure or have any questions, please feel free to reach out to us for assistance.
To ensure prompt delivery, please provide us with your accurate contact details.
If you wish for us to declare a lower value to potentially reduce customs taxes, please inform us accordingly. However, please note that by doing so, you accept full responsibility for any associated risks.
HSD050IDW1-A30-R0 LCD Panel Shipping and Package :
HSD050IDW1-A30-R0 LCD Screen International Orders:
The buyer assumes responsibility for all customs fees and import taxes associated with international orders.
International orders may experience extended delivery times due to customs processing delays.
When shipping to Japan or South Korea via FedEx or DHL, the actual price of the item will be declared. Additionally, recipients in South Korea must provide a customs clearance serial number, for instance: "P123123456789". Please ensure to furnish us with the customs clearance serial number.
HSD050IDW1-A30-R0 LCD Screen About Item and Shipping Price:
For products that are seldom or never sold, the listed item price may not be accurate. Please contact us for an updated and precise quote.
Shipping prices to remote countries or islands may vary significantly. Kindly reach out to us for an accurate shipping quote tailored to your location.
HSD050IDW1-A30-R0 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of HSD050IDW1-A30-R0 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods HSD050IDW1-A30-R0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of HSD050IDW1-A30-R0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
