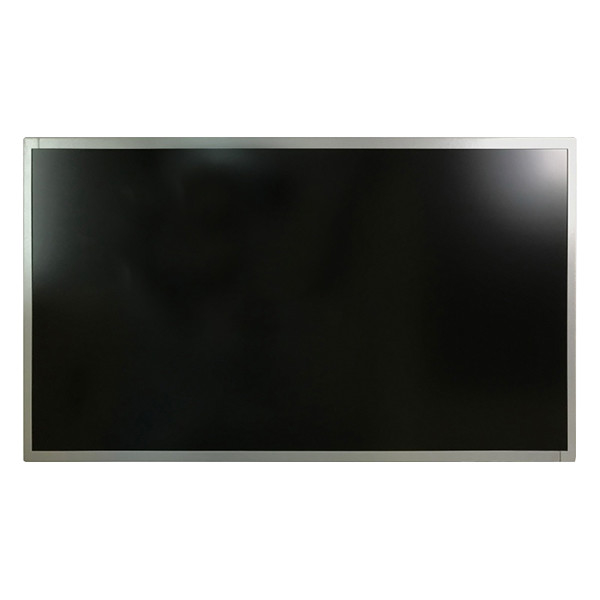

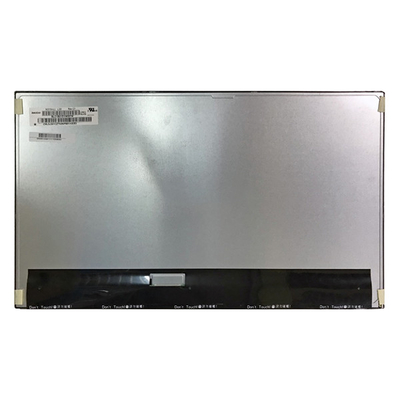

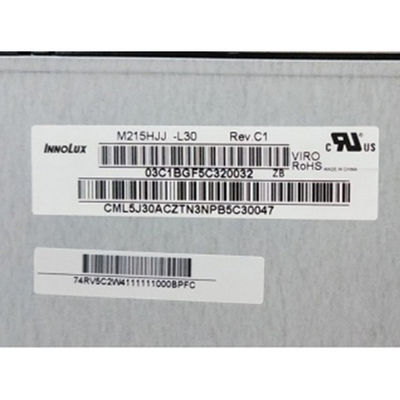

M215HJJ-L30 Rev.C1 21.5 inch 1920*1080 LCD screen display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | M215HJJ-L30 Rev.C1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M215HJJ-L30 Rev.C1 | Diagonal Size: | 21.5" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 102PPI | Active Area: | 476.064(W)×267.786(H) Mm |
| Bezel Opening: | 479.84(W)×271.3(H) Mm | Outline Size: | 495.6(H)×292.2(V)×11.5(D) Mm |
| Weight: | 1.91/2.10Kgs (Typ./Max.) | Signal Interface: | WLED [4 Strings] , 40K Hours , W/O Driver |
| Designed For: | Desktop Monitor / Industrial | Interface Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
Product Description
M215HJJ-L30 Rev.C1 21.5 inch 1920*1080 LCD screen display panel
M215HJJ-L30 Rev.C1 LCD Panel Product details :
| Innolux LCD SCREEN M215HJJ-L30 Rev.C1 | |
|---|---|
| manufacturer | Innolux |
| Model Name | M215HJJ-L30 Rev.C1 |
| screen size | 21.5 inch |
| Screen type | LCM , a-Si TFT-LCD |
| Resolution | 1920(RGB)×1080 (FHD) 102PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 476.064 × 267.786 (H×V)mm |
| physical dimension | 495.6 × 292.2 × 11.5 (H×V×D)mm |
| Visual size | 479.84 × 271.3 (H×V)mm |
| surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250cd/m² (Typ.) |
| Contrast | 3000:1 (Typ.) (TM) |
| Good View at | Symmetry |
| Optical mode | MVA, Normally Black, Transmissive |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Responding time | 20/5 (Typ.)(Tr/Td) ms |
| Number of color | 16.7M 72% NTSC |
| Backlight type | 4 strings WLED , 40K hours , No Driver |
| Panel weight | 1.91/2.10Kgs (Typ./Max.) |
| Apply to | Desktop Monitor / Industrial |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| M215HJJ-L30 Rev.C1 21.5 inch 1920*1080 LCD screen display panel | |
M215HJJ-L30 Rev.C1 LCD Screen Payment:
PayPal Payment:
Our primary method of payment is PayPal due to its buyer protection and reputation for safety in online transactions.
Please ensure you have a PayPal account ready for payment.
Confirm Shipping Address:
Before making the payment, kindly double-check that your shipping address is accurate.
We will only ship the item to the address provided during checkout, so it's crucial to verify its correctness.
Shipping Address Verification:
Please review your shipping address carefully before finalizing your purchase to avoid any shipping delays or errors.
Other Payment Methods:
If PayPal is not suitable for you, we also support alternative payment methods. Please let us know your preferred method, and we will provide instructions accordingly.
Once you've confirmed your shipping address and selected your preferred payment method, proceed with the payment, and we'll ensure prompt processing and shipment of your order. If you have any further questions or need assistance, feel free to reach out.
M215HJJ-L30 Rev.C1 LCD Panel Shipping and Package :
Shipping Policy for M215HJJ-L30 Rev.C1 LCD Screen:
Comprehensive Shipping Coverage: Our shipping rates encompass the entirety of the shipping process, inclusive of handling, packaging, and associated labor costs. We strive to provide a transparent and all-encompassing service to our valued customers.
Address Responsibility: It is imperative for customers to provide accurate delivery addresses. We cannot be held liable for undeliverable addresses. In instances where items are returned due to incorrect address details supplied by the buyer, we reserve the right to levy shipping fees for resending the package. Please note that any non-received items attributed to invalid addresses registered on PayPal are not covered by our full refund or replacement policy.
Local Pickup Option: For added convenience, we offer a local pickup option. Customers located nearby have the opportunity to collect their orders directly, providing a hassle-free solution for obtaining their desired products.
M215HJJ-L30 Rev.C1 LCD Panel FAQ :
Q: How long the warranty of M215HJJ-L30 Rev.C1 ?
A: 90 DAYS.
Q: How to order lcd panel M215HJJ-L30 Rev.C1 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: When will ship my order of Innolux M215HJJ-L30 Rev.C1 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: What happen if Innolux tft-lcd M215HJJ-L30 Rev.C1 I received can't work ?
A: Our Innolux lcd M215HJJ-L30 Rev.C1 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
M215HJJ-L30 Rev.C1 LCD Screen Contact Us:
Delivery Time frame:
If you haven't received your goods within 45 days (excluding Christmas and New Year's Day), please don't hesitate to contact us.
Resolution Options:
In case of any delivery issues, such as non-receipt of goods, we will either resend the items or provide a full refund without any excuses.
We prioritize ensuring a positive buying experience for our customers, even when delivery circumstances are beyond our control.
Customer Support:
Your satisfaction is our priority, and we are committed to providing the best possible service.
If you have any questions or concerns, please reach out to us immediately, and we will assist you promptly.
Appreciation:
We genuinely value your support and appreciate your business.
We wish you a pleasant shopping experience and look forward to serving you again in the future.
If you encounter any issues with your order or have any queries, please feel free to contact us, and we will be more than happy to assist you. Thank you for choosing us, and happy shopping!
