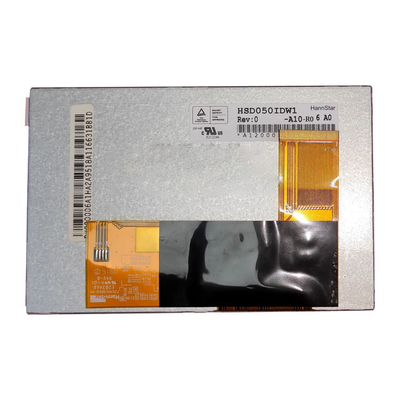

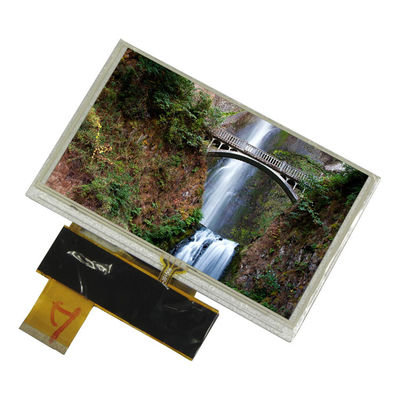

5.0 inch tft lcd Screen HSD050IDW1-A10-R0 800*480 lcd Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD050IDW1-A10-R0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD050IDW1-A10-R0 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 188PPI | Active Area: | 108(W)×64.8(H) Mm |
| Bezel Opening: | 110.4(W)×67.4(H) Mm | Outline Size: | 118.5(W)×77.55(H) ×4.7(D) Mm |
| Viewing Angle: | 75/75/60/70 (Typ.)(CR≥10) | Touch Screen: | 4-wire Resistive Touch |
| Application: | Automotive Display / Portable Navigation / MID UMPC / MP3 PMP / Gaming | Signal Interface: | Parallel RGB (1 Ch, 8-bit) , 40 Pins FPC |
Product Description
5.0 inch tft lcd Screen HSD050IDW1-A10-R0 800*480 lcd Display
HSD050IDW1-A10-R0 LCD Panel Product details :
| HannStar LCD Screen HSD050IDW1-A10-R0 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD050IDW1-A10-R0 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 108(W)×64.8(H) mm |
| Bezel Opening | 110.4(W)×67.4(H) mm |
| Outline Size | 118.5(W)×77.55(H) ×4.7(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 320 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Display Colors | 16.2M |
| Lamp Type | 7S2P WLED , 10K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | 4-wire Resistive Touch |
| Panel Weight | 85.0g (Typ.) |
| Application | Automotive Display / Portable Navigation / MID UMPC / MP3 PMP / Gaming |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 5.0 inch tft lcd Screen HSD050IDW1-A10-R0 800*480 lcd Display | |
Attention: HSD050IDW1-A10-R0 LCD Panel :
Before proceeding with your order, we kindly request you to carefully verify and confirm whether the screen size, resolution, backlight type, interface type, and mounting compatibility align with the requirements of your machine. Should you have any uncertainties or queries regarding compatibility, please do not hesitate to reach out to us for clarification, and our team will gladly assist you at no cost.
To ensure timely delivery of your order, it is essential to provide us with accurate contact information. This will enable us to swiftly dispatch the item to your designated address.
If you prefer us to provide a cost-effective shipping option to minimize tariff charges, please inform us accordingly. However, it's important to note that opting for such a service entails assuming the associated risks yourself.
We appreciate your attention to these details and your cooperation in ensuring a smooth transaction process.
HSD050IDW1-A10-R0 LCD Panel Shipping and Package :
HSD050IDW1-A10-R0 LCD Panel: Important Information :
Bulk Orders: Should you require a larger quantity than currently available, please don't hesitate to contact us directly. Our team will be more than happy to assist you in arranging a higher quantity to fulfill your requirements efficiently.
Shipping Options: We offer expedited shipping via reputable carriers such as DHL, FedEx, UPS, and EMS to ensure your order reaches you promptly within 3-4 business days. However, please be aware that in some cases, additional duty fees may apply depending on your country's import regulations.
If you prefer a shipping method with lower fees and minimal customs charges, kindly inform us in advance. We can arrange shipment via Hong Kong Post, albeit with a longer transit time of 15-20 days.
After-Sales Service for HSD050IDW1-A10-R0 LCD Panel :
Return Policy: We offer a hassle-free return policy allowing a 5-day return window without requiring a reason for return. However, please note that the shipping cost for returning the item should be borne by the buyer.
Warranty Coverage: We provide a warranty period of 90 days for this item. During this time, any manufacturing defects will be promptly addressed. However, please be aware that certain factors are excluded from our warranty coverage. These include damages resulting from:
Man-made factors
Natural disasters
Improper installation
Physical damage such as nicks or tube damage
Mishandling or improper usage
Warranty Void Conditions: Products sold in our store are equipped with fragile warranty tags. Any tampering with or removal of these tags during the warranty period will void the warranty. Additionally, any instances of disconnection or loss of the item will be considered as relinquishing warranty coverage, and we cannot accept responsibility for such cases.
HSD050IDW1-A10-R0 LCD Panel FAQ :
Q: Can I pay my goods HSD050IDW1-A10-R0 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods Mitsubishi HSD050IDW1-A10-R0 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: Can You declare my order of touch lcd panel HSD050IDW1-A10-R0 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of Mitsubishi Display HSD050IDW1-A10-R0 ?
A: 90 days warranty .
