HSD089IFW2-A00 1024*600 LCD Screen 8.9 inch lcd display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD089IFW2-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD089IFW2-A00 | Diagonal Size: | 8.9" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 133PPI | Active Area: | 195.072(W)×113.4(H) Mm |
| Bezel Opening: | 198.27(W)×116.6(H) Mm | Outline Dim.: | 213.36(W)×129.55(H) ×5(D) Mm |
| Viewing Angle: | 70/70/50/60 (Typ.)(CR≥10) | Response Time: | 3/9 (Typ.)(Tr/Td) |
| Application: | Netbook PC / Digital Photo Frame / Portable DVD Player | Signal Interface: | LVDS (1 Ch, 6-bit) , 40 Pins Connector |
Product Description

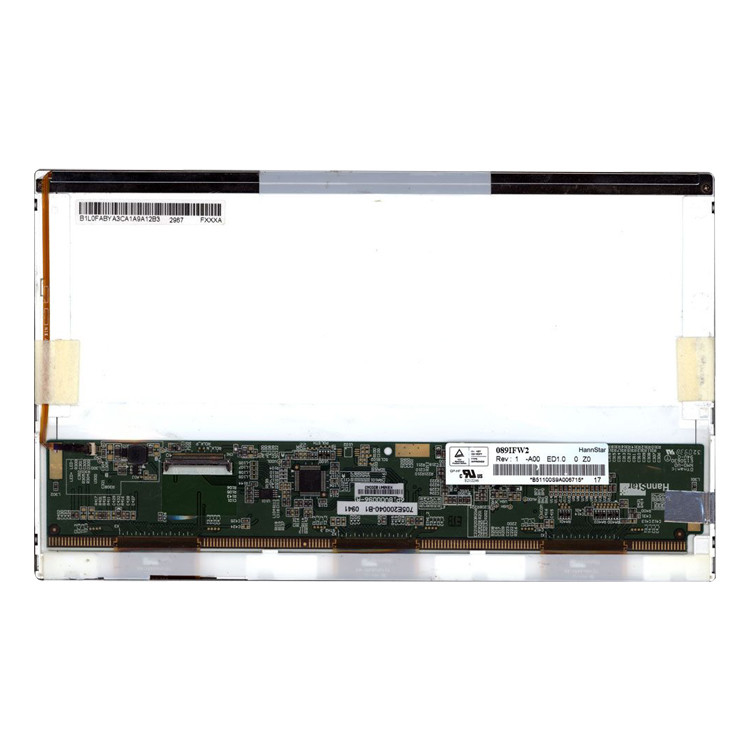

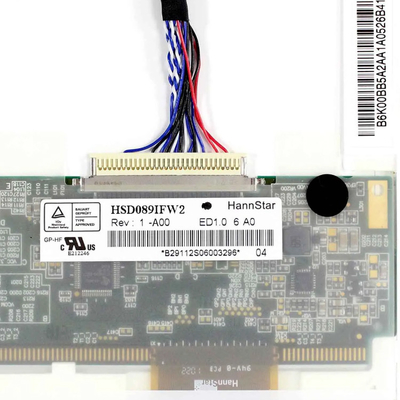

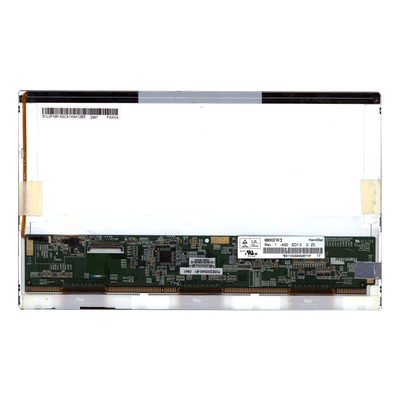

HSD089IFW2-A00 1024*600 LCD Screen 8.9 inch lcd display panel
HSD089IFW2-A00 LCD Panel Product details :
| HannStar LCD Screen HSD089IFW2-A00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD089IFW2-A00 |
| Diagonal Size | 8.9" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 195.072(W)×113.4(H) mm |
| Bezel Opening | 198.27(W)×116.6(H) mm |
| Outline Size | 213.36(W)×129.55(H) ×5(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 3/9 (Typ.)(Tr/Td) |
| Display Colors | 262K 50% NTSC |
| Lamp Type | WLED , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Application | Netbook PC / Digital Photo Frame / Portable DVD Player |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| HSD089IFW2-A00 1024*600 LCD Screen 8.9 inch lcd display panel | |
