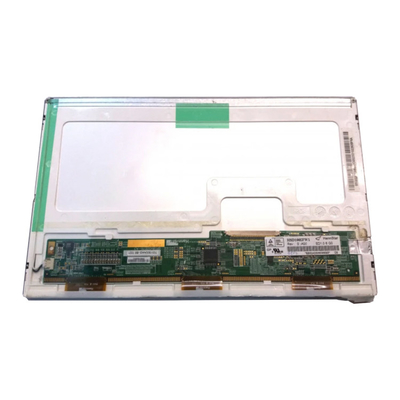

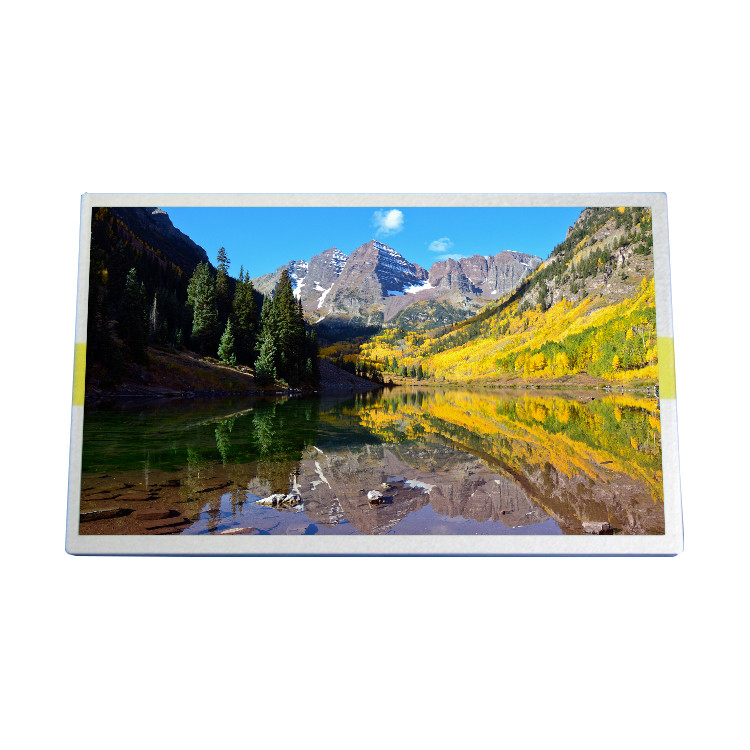

HSD100IFW1-A05 30 Pins 10.1 Inch LCD Screen 1024*600 LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD100IFW1-A05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD100IFW1-A05 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 118PPI | Active Area: | 220.416(W)×129.15(H) Mm |
| Bezel Opening: | 223.42(W)×132.15(H) Mm | Outline Dim.: | 235(H)×145.8(V) ×5.8(D) Mm |
| Surface: | Antiglare, Hard Coating (3H) | Lamp Type: | WLED , 10K Hours , With LED Driver |
| Application: | Netbook PC / Digital Photo Frame / Portable DVD Player | Interface Type: | LVDS (1 Ch, 6-bit) , 30 Pins Connector |
Product Description
HSD100IFW1-A05 30 Pins 10.1 Inch LCD Screen 1024*600 LCD Display
HSD100IFW1-A05 LCD Panel Product details :
| HannStar LCD Screen HSD100IFW1-A05 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD100IFW1-A05 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 220.416(W)×129.15(H) mm |
| Bezel Opening | 223.42(W)×132.15(H) mm |
| Outline Dim. | 235(H)×145.8(V) ×5.8(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 47% NTSC |
| Light Source | WLED , 10K hours , With LED Driver |
| Designed For | Netbook PC / Digital Photo Frame / Portable DVD Player |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| HSD100IFW1-A05 30 Pins 10.1 Inch LCD Screen 1024*600 LCD Display | |
HSD100IFW1-A05 LCD Screen Diagnosis and Purchasing Guide:
Proper Diagnosis is Key:
It is imperative to accurately diagnose any issues with your LCD screen. Begin by testing your computer on an external monitor. If there is no video output, the problem likely stems from the motherboard. However, if there is video on the external monitor, it indicates an issue with the LCD screen itself. It's essential not to jump to conclusions and automatically assume the LCD screen is at fault.
Attention to Part Numbers, Years, and Models:
When purchasing replacement parts, pay close attention to matching part numbers, years, and models. Relying solely on photos or model numbers can lead to incorrect orders. Part numbers hold significant importance, as there may be multiple variations for a particular model. Ensuring compatibility through accurate part matching is crucial for a successful replacement.
Policy Update:
Effective May, we regret to inform you that due to PayPal's policy of retaining all fees on refunds, we will discontinue offering order cancellations. We apologize for any inconvenience this may cause, as we value providing this service to our customers. We appreciate your understanding as we strive to maintain quality service amidst evolving policies.
HSD100IFW1-A05 LCD Panel Shipping and Package :
HSD100IFW1-A05 LCD Screen Shipping Information:
Standard Air Services:
We exclusively utilize standard air services for shipping from either Hong Kong or China. All shipments include tracking to ensure transparency and security throughout the delivery process.
Discuss Faster Options:
Should you require expedited shipping or desire a faster delivery option, we are open to discussing alternative arrangements. Please feel free to reach out to us to explore expedited shipping solutions tailored to your specific needs.
At our company, we prioritize efficient and reliable shipping methods to ensure your order reaches you in a timely manner and in optimal condition. Should you have any inquiries regarding shipping or require assistance with your order, please don't hesitate to contact our customer service team.
HSD100IFW1-A05 LCD Screen Warranty Policy:
120-Day Replacement Warranty:
We provide a 120-day replacement warranty for instances of Dead On Arrival (DOA) and all manufacturer defects, including but not limited to issues such as vertical and horizontal lines, fuzzy images, and distorted images.
Acceptable Dead Pixels:
In alignment with the ISO 13406-2 norm, LCD screens may contain 2-5 dead pixels, which are considered acceptable within industry standards. If you do not agree with this norm, we kindly ask you to refrain from participating in this auction.
HSD100IFW1-A05 LCD Panel FAQ :
Q: Can You declare my order of HSD100IFW1-A05 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of HSD100IFW1-A05 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of HSD100IFW1-A05 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of HSD100IFW1-A05 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
