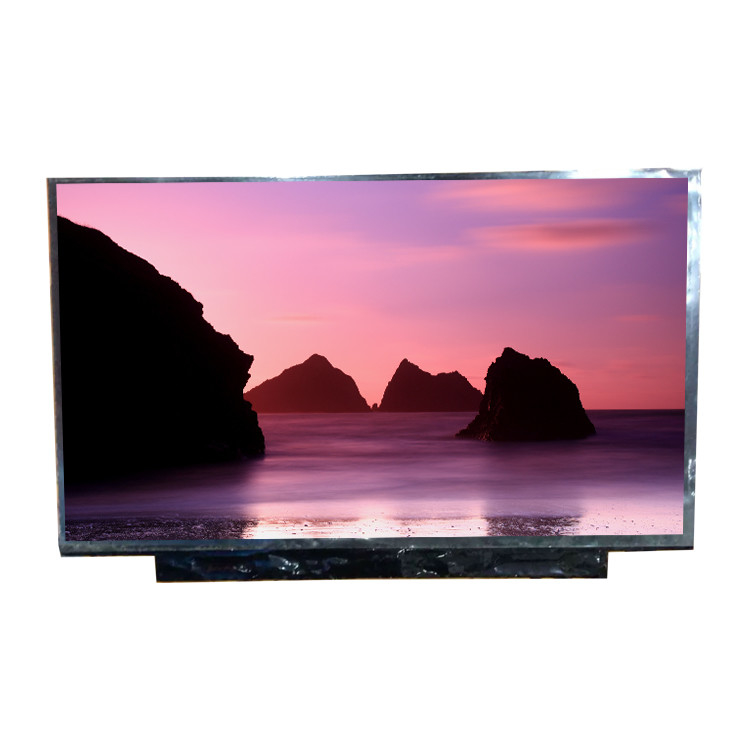

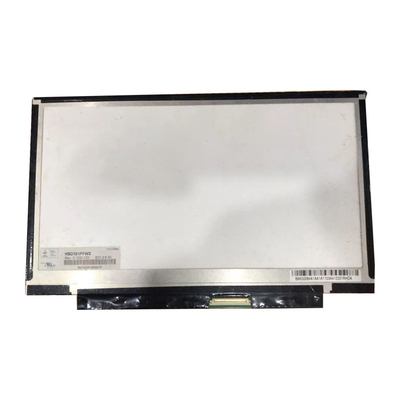

10.1 inch LCD panel Module HSD101PFW3-D00-C00 1024*600 lcd screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD101PFW3-D00-C00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD101PFW3-D00-C00 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)*600, WSVGA 117PPI | Active Area: | 222.72(W)*125.28(H) Mm |
| Bezel Opening: | 224.12(W)*126.68(H) Mm | Outline Size: | 249.4(W)*156.4(H)*5.5(D) Mm |
| Surface: | Antiglare | Touch Screen: | PCAP, USB |
| Application: | Netbook PC | Signal Interface: | LVDS (1 Ch, 6-bit) , 40 Pins Connector |
Product Description
10.1 inch LCD panel Module HSD101PFW3-D00-C00 1024*600 lcd screen Display
HSD101PFW3-D00-C00 LCD Panel Product details :
| HannStar LCD Screen HSD101PFW3-D00-C00 | |
|---|---|
| Panel Brand | HannStar |

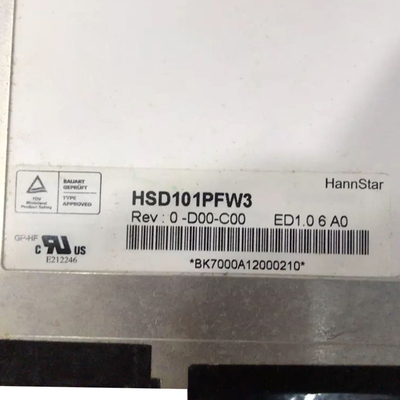

| Model P/N | HSD101PFW3-D00-C00 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 1024(RGB)×600, WSVGA 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | 224.12(W)×126.68(H) mm |
| Outline Size | 249.4(W)×156.4(H) ×5.5(D) mm |
| Surface | Antiglare |
| Brightness | 180 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Response Time | 3/9 (Typ.)(Tr/Td) |
| Display Colors | 262K 50% NTSC |
| Lamp Type | WLED , 10K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | PCAP, USB |
| Application | Netbook PC |

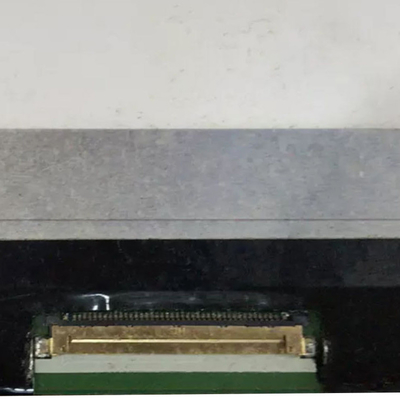

| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 10.1 inch LCD panel Module HSD101PFW3-D00-C00 1024*600 lcd screen Display | |
HSD101PFW3-D00-C00 LCD Screen Purchase Guidelines:
Model Verification: Prior to purchase, ensure compatibility by confirming the screen model matches your requirements. If uncertain, feel free to reach out to us for assistance in determining suitability for your device.
Quality Assurance: Rest assured, each product undergoes rigorous testing before dispatch to guarantee its functionality, ensuring that you receive a product in optimal working condition.
Handle with Care: LCD screens are delicate components. Please note that installation instructions, tools, and adhesives are not included. Professional expertise is recommended for safe replacement and installation. We cannot be held liable for damages resulting from improper handling or installation.
Package Inspection: Upon receipt of your package, kindly photograph the packaging and document the unpacking process. In the event of any damage discovered during unpacking, promptly notify us with accompanying evidence for timely resolution.
Customs Declaration: To minimize duties and taxes, orders will be declared at a low value unless otherwise requested by the customer. Due to international trade regulations and slim profit margins, please understand that we are not accountable for any customs duties, local taxes, or delays in customs clearance.
HSD101PFW3-D00-C00 LCD Panel Shipping and Package :
HSD101PFW3-D00-C00 LCD Screen Delivery Information:
Dispatch Time: Following payment confirmation, your order will be processed and dispatched within 7 working days.
Shipping Options: The shipping method is contingent upon the selected shipping cost during checkout. Please select a shipping option that aligns with your preferences and requirements.
Remote Area Surcharge: For locations situated in remote areas, additional charges may apply. Rest assured, if your address falls within such a region, we will promptly inform you of any adjustments to the shipping cost.
Contact Information for HSD101PFW3-D00-C00 LCD Screen:
For any inquiries or assistance, please don't hesitate to reach out to our dedicated customer service team via email. We are committed to addressing all questions and resolving issues promptly.
Email: [darian@yongs-hk.com]
Business Hours:
(Beijing Time)
Monday to Saturday: 10:00 - 18:00
(excluding most national holidays)
Your satisfaction is our priority, and we aim to provide timely and effective support to ensure a smooth experience with our products.
HSD101PFW3-D00-C00 LCD Panel FAQ :
Q: How long will I receive my goods HSD101PFW3-D00-C00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of HSD101PFW3-D00-C00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of HSD101PFW3-D00-C00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders of HSD101PFW3-D00-C00 ?
A: Of course!sample order is welcome !
