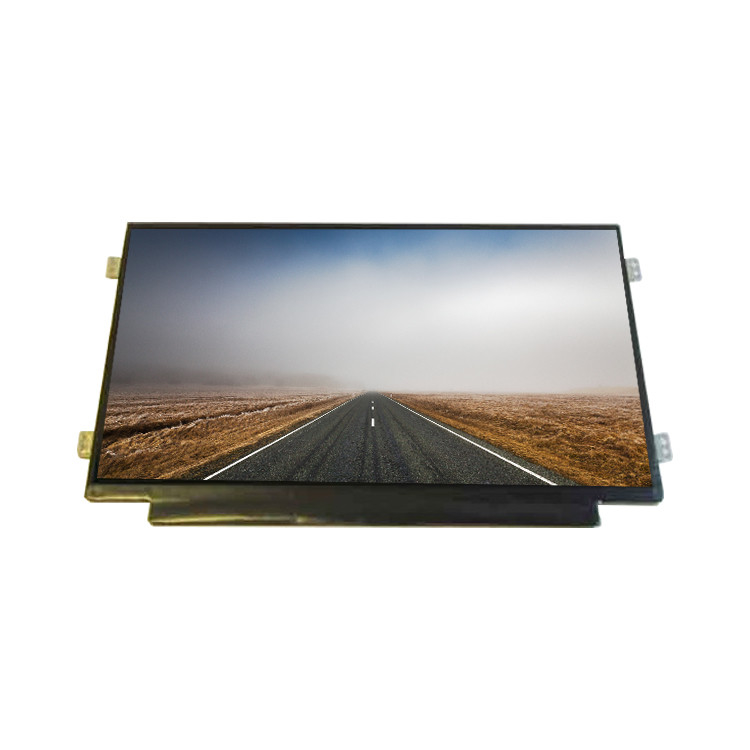

10.1 Inch LCD Screen model HSD101PFW3-B00 1024*600 LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD101PFW3-B00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD101PFW3-B00 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 117PPI | Active Area: | 222.72(W)×125.28(H) Mm |
| Outline(mm): | 243 × 146.5 × 3.6 (H×V×D) | Bezel Opening: | 224.72(W)×127.28(H) Mm |
| Treatment: | Antiglare, Hard Coating (3H) | Backlight: | WLED , 10K Hours , With LED Driver |
| Used For: | Netbook PC / Digital Photo Frame | Signal Type: | LVDS (1 Ch, 6-bit) , 40 Pins Connector |
Product Description
10.1 Inch LCD Screen model HSD101PFW3-B00 1024*600 LCD Display Panel
HSD101PFW3-B00 LCD Panel Product details :
| HannStar LCD Screen HSD101PFW3-B00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD101PFW3-B00 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | 224.72(W)×127.28(H) mm |
| Outline(mm) | 243 × 146.5 × 3.6 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 80/70/80/80 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | 9 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 50% NTSC |
| Backlight | WLED , 10K hours , With LED Driver |
| Used for | Netbook PC / Digital Photo Frame |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 10.1 Inch LCD Screen model HSD101PFW3-B00 1024*600 LCD Display Panel | |
HSD101PFW3-B00 LCD Panel Purchase Instructions:
Ⅰ. Authenticity Guarantee: Rest assured that all products provided are genuine and sourced from trusted manufacturers.
Ⅱ. Quality Assurance: Prior to delivery, each LCD panel undergoes thorough testing to ensure optimal performance and reliability upon arrival.
Ⅲ. Compatibility Flexibility: In most cases, different models within the same product link can be utilized interchangeably, offering versatility in usage scenarios.
HSD101PFW3-B00 LCD Panel Shipping and Package :
HSD101PFW3-B00 LCD Panel Packing:
Our packing process ensures maximum protection for your HSD101PFW3-B00 LCD panels during transportation. Each unit is carefully enclosed in a sturdy outer carton, fortified with inner foam padding. This double-layered packaging guarantees exceptional strength and safety, significantly reducing the risk of damage en route. Rest assured, your LCD panels will arrive intact and ready for immediate use, safeguarding your investment and ensuring seamless operation.
Estimated Delivery Times for HSD101PFW3-B00 LCD Panel:
United States / United Kingdom / Australia: Approximately 7-14 working days for delivery.
Canada: Expect delivery within 7-25 working days.
France / Spain / Germany: Delivery may take approximately 7-20 working days.
Eastern Europe: Allow up to 16-30 working days for delivery.
Italy / Brazil / South America: Delivery may take up to 30-50 working days.
For expedited shipping, DHL Express is available, with delivery typically within 3-6 working days.
Please note that these delivery times are approximate and may vary depending on factors such as customs clearance and local postal service efficiency.
HSD101PFW3-B00 LCD Panel FAQ :
Q: How long will I receive my goods HSD101PFW3-B00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of HSD101PFW3-B00 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of HSD101PFW3-B00 ?
A: We accept T/T , Paypal , western union .
