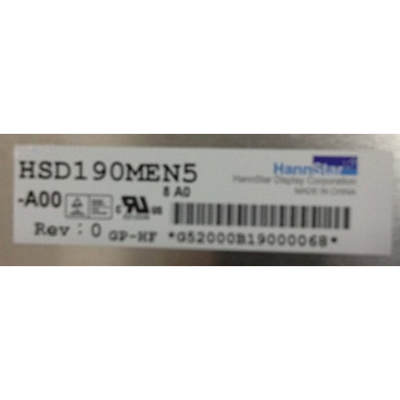

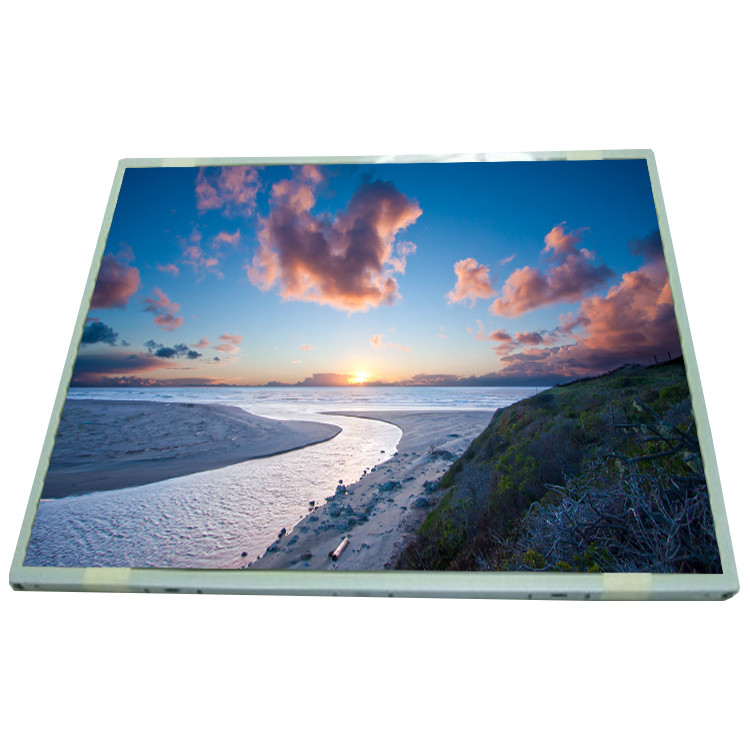

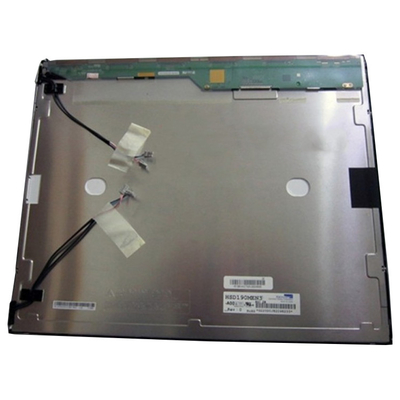

HSD190MEN5-A00 LCD Display Panel 19.0 inch 1280*1024 LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD190MEN5-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD190MEN5-A00 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Bezel Opening: | 380.2(W)×305.0(H) Mm | Outline Size: | 396(W)×324(H) ×10.3(D) Mm |
| Surface: | Antiglare, Hard Coating (3H) | Panel Weight: | 1.25±0.15Kgs |
| Application: | Desktop Monitor | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
Product Description
HSD190MEN5-A00 LCD Display Panel 19.0 inch 1280*1024 LCD Screen Module
HSD190MEN5-A00 LCD Panel Product details :
| HannStar LCD Screen HSD190MEN5-A00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD190MEN5-A00 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | 380.2(W)×305.0(H) mm |
| Outline Size | 396(W)×324(H) ×10.3(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 71% NTSC |
| Lamp Type | 9S8P×2CN WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.25±0.15Kgs |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| HSD190MEN5-A00 LCD Display Panel 19.0 inch 1280*1024 LCD Screen Module | |
HSD190MEN5-A00 LCD Screen Payment Policy:
Payment Method:
We accept payments through PayPal, ensuring a secure and convenient transaction. However, payments are accepted only from accounts with a confirmed address. This measure is in place to protect both parties involved in the transaction.
Unpaid Auctions:
For customers participating in auctions, it's essential to settle payments promptly. Unpaid auction customers may be flagged as such by Alibaba. Timely payment ensures a swift processing of your order and avoids any potential inconvenience.
Tax Responsibilities:
In the event that taxes are applicable in the buyer's country, it becomes the buyer's responsibility to address and settle those charges. Please be aware of the tax regulations in your region, as they may impact the overall cost of your purchase.
Customs Declaration:
To assist buyers in minimizing potential tax liabilities, we have the flexibility to declare a lower value for the purchased items. This is done solely with the intention of helping buyers avoid excessive taxes or duties imposed by their local customs authorities. However, it's important for buyers to be aware of the customs regulations in their country and the potential implications of declaring a lower value.
HSD190MEN5-A00 LCD Panel Shipping and Package :
HSD190MEN5-A00 LCD Screen Shipping Policy :
we will ship the item to your address that you listed on Alibaba .
Pls make sure your Paypal address is exactly same with your Alibaba address .
if the item be send back as the wrong address , buyer pay for the shipping fee .
TAX is buyer's responsible , you will be responsible for the Customs Tax , or other rate may cause in your own Country .
We will deliver the goods within 3 working days after receiving the payment.
PS: Saturday, Sunday, and Holiday are not business day.
HSD190MEN5-A00 LCD Screen Return Policy:
Please contact with us in advance when you want to return items.
Please contact with us within 7 days when you receive a DOA or a shipping damaged item.
20% re-stock fee will be charged for all non-defective, part not used, part not need and wrong part order return.
Customers need to pay 2-way shipping fee if ordering the wrong items.
Use our packing methods (bubble rope or sponge form) or similar ways to pack it well and return to us.
HSD190MEN5-A00 LCD Panel FAQ :
Q: How long is the warranty of HSD190MEN5-A00 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of HSD190MEN5-A00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of HSD190MEN5-A00 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods HSD190MEN5-A00 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
