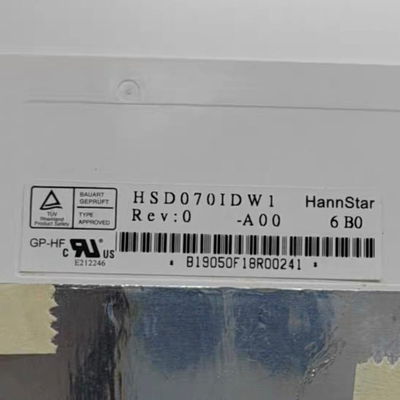

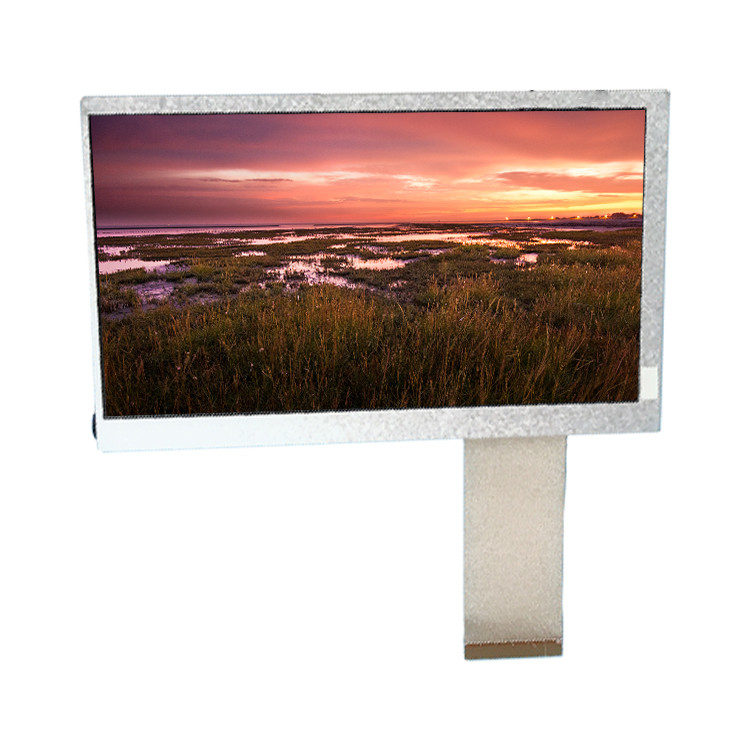

Original HannStar 7.0 inch 800*480 LCD Screen Display Panel HSD070IDW1-A00
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070IDW1-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD070IDW1-A00 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 134PPI | Active Area: | 153.6(W)×86.64(H) Mm |
| Bezel Opening: | 156.0(W)×89.04(H) Mm | Outline Size: | 165(W)×104(H) ×5.4(D) Mm |
| Treatment: | Antiglare, Hard Coating (3H) | Panel Weight: | 130g (Typ.) |
| Application: | Digital Photo Frame / Portable DVD Player | Signal Interface: | TTL (1 Ch, 6/8-bit) , 60 Pins FPC |
| Highlight: | 800*480 LCD Screen Display Panel,HSD070IDW1-A00,HannStar LCD Screen HSD070IDW1-A00 |
||
Product Description
Original HannStar 7.0 inch 800*480 LCD Screen Display Module HSD070IDW1-A00
HSD070IDW1-A00 LCD Panel Product details :
| HannStar LCD Screen HSD070IDW1-A00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD070IDW1-A00 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×86.64(H) mm |
| Bezel Opening | 156.0(W)×89.04(H) mm |
| Outline Size | 165(W)×104(H) ×5.4(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.2M |

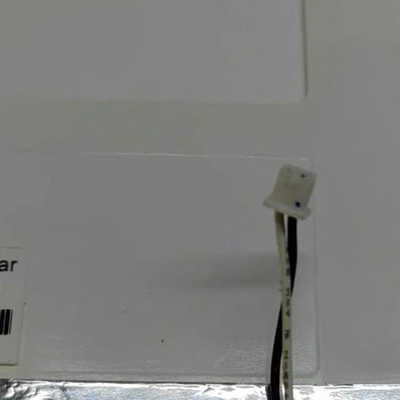

| Lamp Type | 3S7P WLED , 20K hours , Without Driver |
| Touch Screen | Without |
| Panel Weight | 130g (Typ.) |
| Application | Digital Photo Frame / Portable DVD Player |

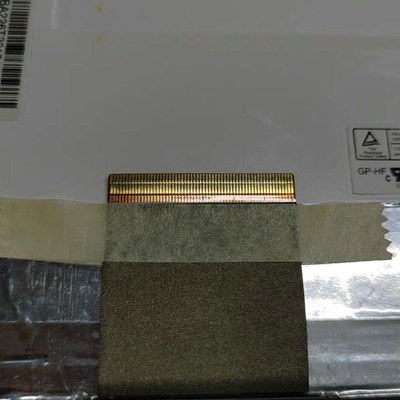

| Signal Interface | TTL (1 ch, 6/8-bit) , 60 pins FPC |
| Input Voltage | 3.0/10.0/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| Original HannStar 7.0 inch 800*480 LCD Screen Display Module HSD070IDW1-A00 | |
HSD070IDW1-A00 lcd display Please note:
Thank you for choosing our HSD070IDW1-A00 LCD display. To ensure the quality of our products, we conduct rigorous testing before dispatch. However, we understand that unforeseen issues may arise, particularly during transportation, and we would like to bring your attention to a crucial step in the process: testing the product before installation.
Even though we take every precaution to ensure the reliability of our LCD displays, the delicate nature of screens makes them susceptible to damage during transit. As a result, we strongly advise you to thoroughly examine the product upon receipt. In the event that you identify any issues or abnormalities, we kindly request that you refrain from installing the display immediately.
Your satisfaction is our priority, and we are here to assist you with any concerns. If you encounter problems during your pre-installation testing, please reach out to our customer support team promptly. They will provide you with guidance and facilitate a solution to address the identified issues.
It is important to note that, in the event of a problem, refraining from installation is crucial for a successful resolution. If the product is installed without prior testing, we regret to inform you that we will be unable to provide after-sales service or offer a refund. We appreciate your understanding of this policy, as it is designed to ensure that we can effectively assist you in resolving any issues that may arise.
We would like to emphasize that we cannot accept responsibility for problems that occur during the installation process if the product has not been tested beforehand. Testing serves as a preventive measure to identify any potential defects, allowing us to address concerns promptly and efficiently.
Once again, we appreciate your business and trust in our products. Should you encounter any challenges or have questions regarding the testing process, please don't hesitate to contact our customer support team. We are committed to providing you with a positive experience and ensuring the successful use of our HSD070IDW1-A00 LCD display.
HSD070IDW1-A00 LCD Panel Shipping and Package :
HSD070IDW1-A00 lcd display Shipping :
Dispatch Time:
Your order will be dispatched within 72 working hours once the payment is confirmed. We are committed to prompt processing, and in the rare event that the purchased products or preferred color are unavailable, we will notify you immediately to discuss suitable alternatives.
Protective Packaging:
To safeguard your purchase, all items come with a protective plastic film on the screens. Additionally, we employ secure packing methods to minimize the risk of damage during transit. Our goal is to deliver your order in pristine condition.
Shipping Options:
We offer various shipping options to cater to your needs. Your order can be shipped via DHL, EMS, or China Post Air Mail. Each shipment comes with a tracking number, allowing you to conveniently check the parcel status online.
Destination Address:
Please ensure that the destination address provided during the order payment is accurate and complete. We will dispatch the parcel to the specified destination address only.
Remote Areas and Additional Shipping Fees:
For addresses located in remote areas, additional shipping fees may apply. We appreciate your understanding in this matter, as these charges are beyond our control but necessary for the smooth delivery to such locations.
Secure Packaging:
Rest assured, your parcel will be meticulously packed before shipping to prevent any damage during transportation. Our commitment to delivering your product in excellent condition is of utmost importance.
HSD070IDW1-A00 lcd display Guarantee And Return:
Product Guarantee:
We stand behind the quality of our products and offer a guarantee for all items purchased. This ensures that you receive a product that meets the highest standards of performance and durability.
Shipping Costs for Returns:
Buyers are responsible for the shipping costs associated with returning both defective and non-defective items. This policy helps us maintain competitive pricing while providing flexibility for returns.
Condition of Returned Items:
To qualify for a return, items must be in good condition, similar to the condition in which they were originally shipped. We cannot accept returns for items that have been damaged due to improper handling or installation.
Approval and Original Packaging:
Returned items are subject to approval by our team. For a successful return, the item must be in its original box as shipped, ensuring that it is adequately protected during the return process.
Reporting Damaged Items:
In the unfortunate event that you receive damaged items, please report the issue within 2 days of receiving the shipment. This allows us to address the matter promptly and take appropriate action.
Non-Seller Error Returns:
For returns not related to seller error, including instances where the buyer changes their mind, shipping and handling charges are non-refundable. We appreciate your understanding of this policy, as it helps us maintain our commitment to providing quality products and services.
HSD070IDW1-A00 LCD Panel FAQ :
Q: How long will I receive my goods HSD070IDW1-A00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of HSD070IDW1-A00 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of HSD070IDW1-A00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of HSD070IDW1-A00via credit card ?
A: Yes!you can use your credit card through your Paypal account.
