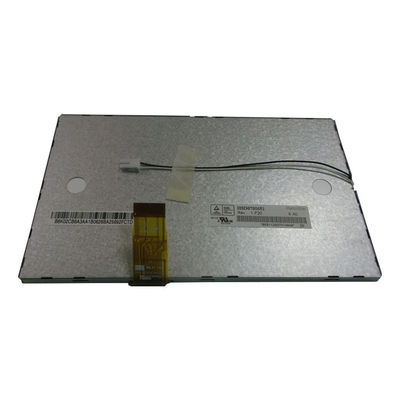

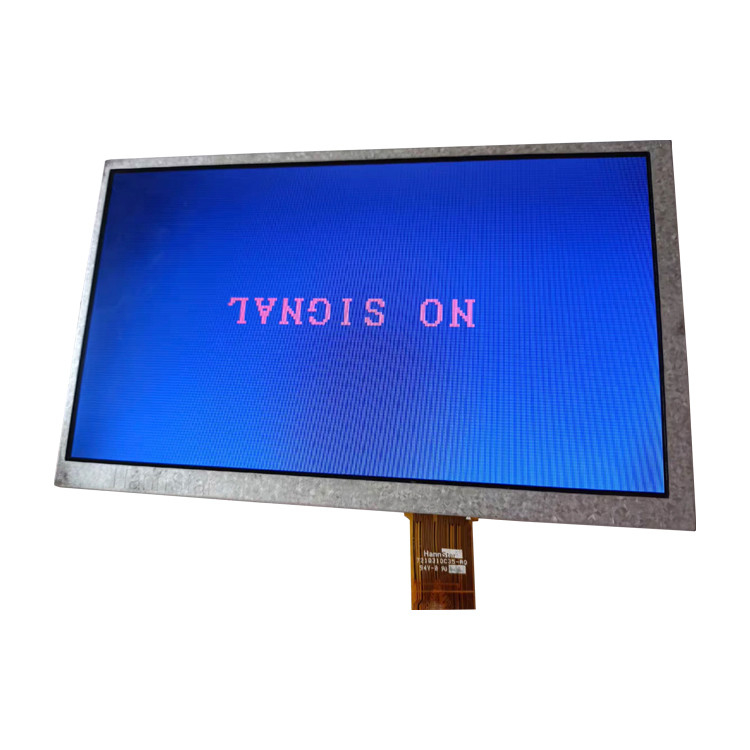

7.0 Inch 480*234 LCD Screen Display HSD070I651-F20 26 Pins FPC
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070I651-F20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD070I651-F20 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 480(RGB)×234 76PPI | Active Area: | 154.08(W)×86.58(H) Mm |
| Bezel Opening: | 156.4(W)×89.0(H) Mm | Outline Size: | 164.9(W)×100(H)×6(D) Mm |
| Treatment: | Antiglare, Hard Coating (3H) | Mass: | 160g (Typ.) |
| Used For: | Digital Photo Frame / Portable DVD Player / Video Door Phone | Signal Type: | TFT Specific Analog RGB , 26 Pins FPC |
| High Light: | HSD070I651-F20 LCD Screen Display,HSD070I651-F20 |
||
Product Description
7.0 inch 480*234 26 Pins HSD070I651-F20 LCD Screen Display
HSD070I651-F20 LCD Panel Product details :
| HannStar LCD Screen HSD070I651-F20 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD070I651-F20 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×234 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 154.08(W)×86.58(H) mm |
| Bezel Opening | 156.4(W)×89.0(H) mm |
| Outline Size | 164.9(W)×100(H)×6(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/65/65 (Typ.)(CR≥10) |
| Response | 5/20 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | Full color |
| Backlight | 3S5P WLED , 20K hours , No Driver |
| Mass | 160g (Typ.) |
| Used for | Digital Photo Frame / Portable DVD Player / Video Door Phone |
| Touchscreen | Without |
| Signal Type | TFT Specific Analog RGB , 26 pins FPC |
| Voltage Supply | 3.3/5.0/15/-10V (Typ.)(DVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 7.0 inch 480*234 26 Pins HSD070I651-F20 LCD Screen Display | |
HSD070I651-F20 LCD Panel Shipping and Package :
HSD070I651-F20 LCD Screen - Packaging Information:
We take utmost care in packaging your HSD070I651-F20 LCD Screen to ensure its safe and secure delivery. Here are the details of our packaging process:
Sturdy Packaging:
Your product will be shipped in sturdy packaging designed to withstand the rigors of transportation. We understand the importance of protecting delicate electronic components, and our packaging is selected to provide optimal safeguarding against potential damage during transit.
Anti-Static Bags:
To prevent any static-related issues that may arise during handling and shipping, the LCD screen will be placed in anti-static bags. These bags are specially designed to dissipate static electricity and protect sensitive electronic components from potential damage.
Bubble Bags:
Additional protection is provided through the use of bubble bags. These bags serve as a cushion, absorbing shocks and impacts that may occur during transportation. The bubble bags add an extra layer of defense against any physical stress the package may encounter.
Cardboard Boxes:
The LCD screen, secured in anti-static and bubble packaging, will then be carefully placed in a durable cardboard box. The box is chosen to match the size of the product, minimizing movement within the packaging and further enhancing the protection of the contents.
Our meticulous packaging process aims to ensure that your HSD070I651-F20 LCD Screen reaches you in perfect condition. We understand the importance of receiving a product in excellent shape, and our packaging practices reflect our commitment to delivering a quality product that meets or exceeds your expectations.
If you have any specific concerns or requests regarding the packaging, please feel free to communicate with us.
HSD070I651-F20 LCD Screen - Important Information for Buyers:
Detailed Description:
Before making a purchase, it is crucial to carefully read the title and ensure that the board models and machine models match your requirements. If you encounter any uncertainties, feel free to send us an email. We are more than happy to assist you and provide clarification. Your satisfaction is our priority.
Quality Assurance:
Rest assured that the LCD screen you receive will undergo thorough testing before being sent out. Our commitment to quality ensures that you receive a product that meets the highest standards. We strive to deliver a reliable and functional product to enhance your experience.
Immediate Notification of Faults:
In the rare event that the product is found to be faulty upon receipt, please inform us immediately. Your prompt communication allows us to address the issue promptly and efficiently, ensuring a swift resolution to any concerns you may have.
Dispute Resolution:
Please refrain from opening a dispute based on the age of the product. We provide a detailed description to inform you of the product's condition. If you find any aspects challenging to accept, we recommend refraining from placing the order to avoid unnecessary disputes. Your understanding in this matter is highly appreciated.
New and Original Products:
Some of our products are new and original. In instances where we have new stock available, rest assured that you will receive the latest products. If, however, new stock is depleted, we may send older products. Regardless, every product undergoes strict testing before shipment, ensuring its functionality and reliability. Your understanding and trust in our commitment to quality are greatly valued.
HSD070I651-F20 LCD Screen - Tariffs and Receipts Information:
Customs Duties Responsibility:
The buyer is kindly reminded that they are responsible for any customs duties incurred at the destination. It is essential to factor in potential tariffs when planning your budget. If your financial constraints do not allow for additional tariffs, we recommend choosing shipping options other than express delivery services like DHL, FEDEX, or EMS. By selecting alternative shipping methods, you can potentially reduce or eliminate additional customs-related costs.
Express Delivery Considerations:
Express delivery services, such as DHL, FEDEX, and EMS, are known for their speed and efficiency. However, they often involve customs clearance processes that may result in additional charges. If your budget is sensitive to such expenses, it is advisable to opt for standard shipping methods that might have lower associated tariffs.
Package Arrival and Contact Information:
If, for any reason, you do not receive your package within 30 days from the date of shipment, we encourage you to reach out to us promptly. We understand the importance of a timely delivery and will do our best to assist you in tracking the package.
Unclaimed Packages:
In the unfortunate event that a package remains unclaimed for an extended period, typically within 15-30 days, it will be returned. It is crucial to act promptly and contact us if you have not received your package to avoid any complications or delays. We value your satisfaction and aim to provide a seamless experience throughout the entire purchasing process.
HSD070I651-F20 LCD Panel FAQ :
Q: How to make payment of HSD070I651-F20 ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of HSD070I651-F20?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of HSD070I651-F20 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
