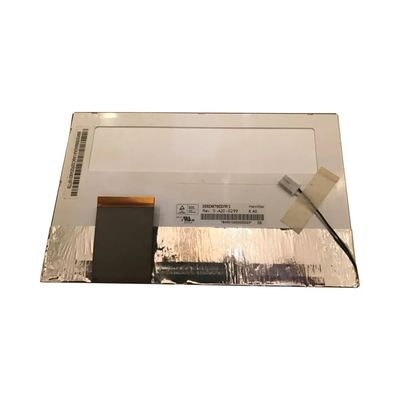

HSD070IDW1-A20-0299 7 Inch TFT Display 800*480 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070IDW1-A20-0299 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD070IDW1-A20-0299 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 134PPI | Active Area: | 153.6(W)×86.64(H) Mm |
| Outline Size: | 162.5(W)×97.89(H) ×1.69(D) Mm | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Display Mode: | TN, Normally White, Transmissive | Driver IC: | COG Built-in 2 Source + 1 Gate Chips |
| Application: | Digital Photo Frame / Portable DVD Player | Signal Interface: | Parallel RGB (1 Ch, 6/8-bit) , 60 Pins FPC |
| High Light: | HSD070IDW1-A20-0299,DVD Player 7 Inch TFT Display,60 pins FPC LCD Screen Display Panel |
||
Product Description

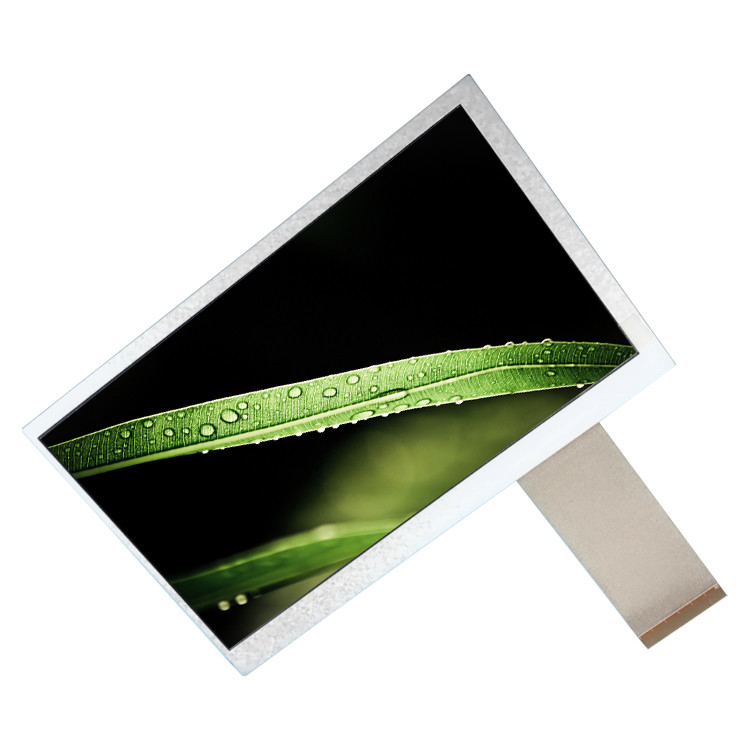

HSD070IDW1-A20-0299 7.0 inch 800*480 TFT LCD Screen Display
HSD070IDW1-A20-0299 LCD Panel Product details :
| HannStar LCD Screen HSD070IDW1-A20-0299 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD070IDW1-A20-0299 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, CELL , FOG |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×86.64(H) mm |
| Outline Size | 162.5(W)×97.89(H) ×1.69(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Glass Depth | 0.63+0.63 mm |
| Transmissivity | 5.8% (Typ.)(with Polarizer) |
| Display Colors | 262K/16.2M 49% NTSC |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Driver IC | COG Built-in 2 source + 1 gate chips |
| Application | Digital Photo Frame / Portable DVD Player |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| Input Voltage | 3.0/10.0/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| HSD070IDW1-A20-0299 7.0 inch 800*480 TFT LCD Screen Display | |
Important Notice Regarding HSD070IDW1-A20-0299 LCD Screen:
Installation Guidelines:
Kindly note that an installation guide is not provided with the HSD070IDW1-A20-0299 LCD Screen. It is imperative to acknowledge that we disclaim responsibility for any damages that may occur during the installation of this accessory. Prior to placing a bid or making a purchase, please ensure that you possess the necessary knowledge and expertise for a successful installation. Your understanding and adherence to this precautionary measure are greatly appreciated.
Compatibility Assurance:
We assure compatibility only with the specific machine for which the HSD070IDW1-A20-0299 LCD Screen is intended. While we strive to provide a seamless match, it is essential to be aware that compatibility cannot be guaranteed with other devices. We recommend verifying compatibility with your machine before making a purchase to avoid any inconvenience.
Grade A+ Touch Screen Digitizer Information:
*Please DO NOT buy if you do not accept an A+ grade compatible touch screen. It is important to note that different flex cable numbers may be associated with the product, as indicated in our title, description, and photos. In the event that specific flex cable numbers are currently unavailable in the market, we appreciate your understanding and request that you refrain from purchasing if you do not accept this variation. Your cooperation ensures a transparent and satisfactory transaction process.
HSD070IDW1-A20-0299 LCD Screen Installation Precautions:
Quality Assurance:
Prior to shipping, each HSD070IDW1-A20-0299 LCD screen undergoes rigorous testing, ensuring it is 100% functional. The product is designed for repairing or replacing old, broken, cracked, or otherwise damaged screens.
Careful Unboxing and Initial Testing:
Upon receiving the product, exercise caution. Do not remove the protective film, and refrain from applying adhesive on the back immediately. Before any physical installation, conduct an initial test on your machine. This involves verifying the sensitivity of the new screen. Take the necessary steps to remove the old screen, insert the new one, and assess its functionality. It is crucial to ensure the quality meets your expectations before proceeding with the full installation. Failure to do so may result in damage to the motherboard and screen for which we cannot be held responsible.
Power Disconnection Prior to Connection Testing:
Before connecting the new screen, ensure that the power is disconnected. This precaution is critical to prevent potential damage to both the motherboard and screen. Failure to disconnect the power may lead to severe consequences, and in such cases, our responsibility cannot be assumed. Exercise extreme caution during this step to safeguard the integrity of your device.
Please adhere to these installation precautions diligently to guarantee a successful and trouble-free experience with your HSD070IDW1-A20-0299 LCD screen replacement.
HSD070IDW1-A20-0299 LCD Panel Shipping and Package :
HSD070IDW1-A20-0299 LCD Screen Payment & Shipping Information:
Secure and Convenient Payment Options:
Making a payment for your HSD070IDW1-A20-0299 LCD Screen is both safe and convenient. You can easily complete your transaction online using credit cards such as VISA or Mastercard. Our payment processing is handled securely through Alibaba, ensuring a reliable and protected payment experience.
Worldwide Shipping:
We are delighted to offer global shipping services, allowing customers from all corners of the world to enjoy our products. Our commitment to efficient shipping has been demonstrated through successful deliveries to numerous countries, including but not limited to Japan, Thailand, Russia, Ukraine, the United Kingdom, and Brazil.
Cost-Effective Freight Options:
Our goal is to provide you with affordable shipping solutions. We offer competitive freight fees, and you can choose from a variety of reputable shipping carriers, including DHL, UPS, TNT, EMS, and China Post Air Mail. This flexibility ensures that you have options to suit your preferences and budget.
Trackable Shipments:
For your peace of mind, all shipments come with tracking capabilities. Once your order is dispatched, we will provide you with the necessary tracking information, allowing you to monitor the real-time progress and location of your package.
Timely Order Processing:
Your order will be processed promptly, ensuring that it is ready for shipment within a reasonable timeframe. We understand the importance of timely deliveries and strive to meet your expectations.
HSD070IDW1-A20-0299 LCD Panel FAQ :
Q: How can I trace my order of HSD070IDW1-A20-0299 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of HSD070IDW1-A20-0299 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of HSD070IDW1-A20-0299 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of HSD070IDW1-A20-0299 ?
A: Of course!If you make a large order, we will give you a discount.
