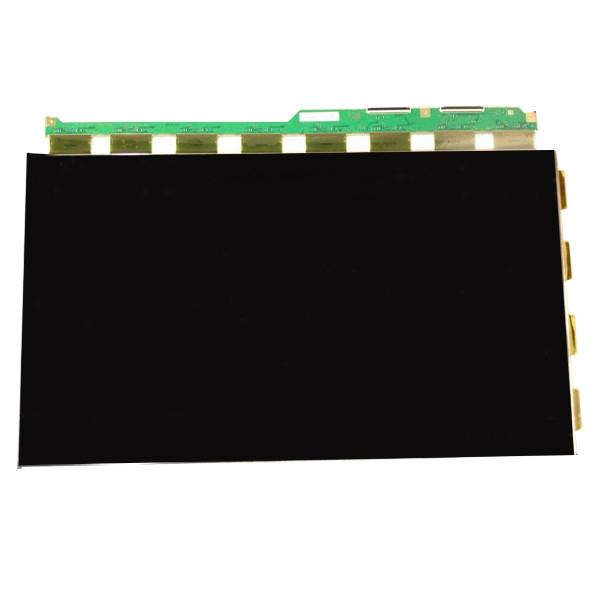

23.6 Inch 1920*1080 TFT LCD Screen Display Module Panel LK235D3HA0S LCD Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LK235D3HA0S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LK235D3HA0S | Diagonal Size: | 23.6 Inches |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 FHD 93PPI | Display Size: | 521.28(h)×293.22(v) Mm |
| Surface: | Matte (Haze 2%), Hard Coating (3H) | Physical Dimension: | 532.875 (h) × 303.7 (v) × 1.68 (t) |
| Viewing Angle: | 88/88/88/88 (Typ.) (CR≥10) | Work Mode: | ASV, Normally Black, Transmissive |
| Refresh Rate: | 240Hz | Used For: | Desktop Monitor |
| Highlight: | 23.0 inch TFT LCD Screen,HSD230WX01-A LCD Monitor,HSD230WX01-A |
||
Product Description
23.6 Inch 1920*1080 TFT LCD Screen Display Module Panel LK235D3HA0S LCD Monitor
LK235D3HA0S LCD Panel Product details :
| Sharp LCD Screen LK235D3HA0S | |
| Panel Brand | Sharp |
| Panel Model | LK235D3HA0S |
| screen size | 23.6 inches |
| Panel Type | a-Si TFT-LCD , CELL |
| Resolution | 1920(RGB)×1080 FHD 93PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 521.28(h)×293.22(v) mm |
| physical dimension | 532.875 (h) × 303.7 (v) × 1.68 (t) |
| Surface | Matte (Haze 2%), Hard coating (3H) |
| Brightness | 0 cd/m² |
| View Direction | Symmetry |
| Contrast Ratio | 5000:1 (Typ.) (Transmission) |
| Viewing Angle | 88/88/88/88 (Typ.) (CR≥10) |
| Optical mode | ASV, Normally Black, Transmissive |
| Number of colors | 16.7M , 78% NTSC |
| Response time | 4 (Typ.)(G to G) ms |
| Transmittance | 4.5% (Typ.) (with polarizer) |
| Backlight type | no backlight |
| refresh rate | 240Hz |
| Touch Screen | no touch |
| screen weight | 661g (Typ.) |
| Designed For | Desktop Monitor |
| Driver IC | COF has bonded 8 source + 4 gate chips |
| Interface Type | 160 pins Mini LVDS , terminal |
| Application | Operating temperature: 0 ~ 50 °C ; Storage temperature: -25 ~ 60 °C |
| LK235D3HA0S Original 23.6 inch LCD Display Module for Desktop Monitor | |
LK235D3HA0S LCD Panel Shipping and Package :
LK235D3HA0S LCD Screen - INTERNATIONAL SHIPPING :
We take pride in offering worldwide shipping to ensure that our customers globally can benefit from our high-quality products. However, please be aware of the following important information regarding international shipments:
Customs Fees and Import Duties:
Your packages may be subject to local customs fees and import duties based on the regulations of your country. These charges are the sole responsibility of the recipient, and they are not included in the product or shipping costs. We advise you to contact your local customs office to obtain more detailed information about potential fees and duties that may apply to your order.
Customs Declaration:
Customs authorities require us to accurately record the cost of the item(s) on the customs form, even if the order is marked as a gift. This practice is in compliance with international trade regulations. The declared value on the customs form reflects the actual cost of the purchased items and helps customs officials assess appropriate duties and taxes.
Contacting Local Customs:
For specific details about customs fees, import duties, or any other inquiries related to the clearance process, we recommend reaching out to your local customs office. They can provide you with accurate and up-to-date information about the regulations and charges that may apply to your shipment.
Transparency and Compliance:
We are committed to transparency and compliance with international shipping regulations. By adhering to customs requirements, we aim to facilitate smooth and efficient delivery of your order while ensuring that you are well-informed about any additional charges that may be incurred.
LK235D3HA0S LCD Screen - Return Policy :
1. Return and Cancellation Period:
You can cancel your order or initiate a return for merchandise within 30 days of receiving the shipment if you are not satisfied with YONGS services and products.
2. Contacting YONGS for Returns:
Prior to sending any equipment back to YONGS, please contact us with your order number. We will provide you with detailed instructions on the return process to facilitate a smooth experience.
3. Return Timeline and Testing:
Products must be returned within 14 days after contacting us. All returns undergo testing. In cases where returns for refund are found to be non-defective, a 20% restocking fee may apply. The buyer is responsible for the return shipping of all non-defective products. Products damaged through misuse, abuse, or negligence are not eligible for warranty replacement.
4. Exceptions to Return Policy:
There are no returns for retail packaging processors, printers, memory, LCD monitors, and TVs, except in cases of shipping the wrong item or clear shipping damage. Customers acknowledge that these items can only be returned to manufacturers for replacement/repair, with no exceptions.
5. Refund Process:
Refund requests are typically resolved within 14 days after we receive the returned product. Please note that shipping costs are non-refundable.
6. Customer Inquiries:
For any questions or inquiries regarding our return and refund policy, please write to us via email. Our dedicated support team is here to assist you.
7. Complete Returns:
In the case of any product(s) returned for any reason, the returned item(s) must be 100% complete, in original condition, including all packaging, manuals, registration cards, accessories, cables, and software.
8. Right to Refuse Return:
We reserve the right to refuse a return on any product that does not meet the specified requirements.
9. Exception for Shipping and Handling Fees:
Shipping and handling fees are generally not refundable, except in cases where YONGS incorrectly ships an order.
Thank you for your understanding of our return policy. If you have further questions or require clarification, please don't hesitate to reach out to us via email. We are committed to providing a positive customer experience.
LK235D3HA0S LCD Panel FAQ :
Q: How long is the warranty of LK235D3HA0S ?
A: 90days warranty .
Q: How can I trace my order of LK235D3HA0S ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods LK235D3HA0S by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders for LK235D3HA0S ?
A: Of course!sample order is welcome !
