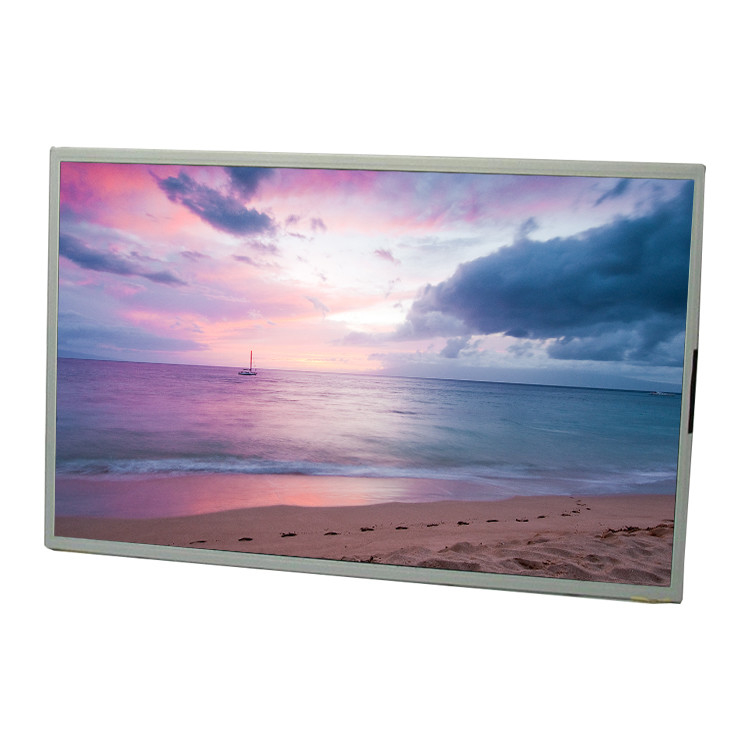

HSD190MGW1-F LCD Screen Display Panel For Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD190MGW1-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD190MGW1-F | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1440(RGB)×900, WXGA+ 89PPI | Active Area: | 408.24(W)×255.15(H) Mm |
| Bezel Opening: | 412.2(W)×259.2(H) Mm | Outline Size: | 428(W)×278(H) Mm |
| Surface: | Antiglare, Hard Coating (3H) | Weight: | 2.10Kgs (Typ.) |
| Application: | Desktop Monitor | Signal Interface: | LVDS (2 Ch, 8-bit) |
| Highlight: | HSD190MGW1-F,HSD190MGW1-F LCD screen Display |
||
Product Description
HSD190MGW1-F LCD screen Display Panel for Desktop Monitor
HSD190MGW1-F LCD Panel Product details :
| HannStar LCD Screen HSD190MGW1-F | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD190MGW1-F |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1440(RGB)×900, WXGA+ 89PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 408.24(W)×255.15(H) mm |
| Bezel Opening | 412.2(W)×259.2(H) mm |
| Outline Dim. | 428(W)×278(H) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | CCFL [4 pcs] |
| Weight | 2.10Kgs (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Interface Type | LVDS (2 ch, 8-bit) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| HSD190MGW1-F LCD screen Display Panel for Desktop Monitor | |
Precautions before purchasing HSD190MGW1-F LCD Screen:
When considering the purchase of the HSD190MGW1-F LCD screen, it is essential to undertake a few key steps to ensure compatibility and a seamless integration into your device. Here are some important points to confirm before making your purchase:
1. Verification of Model, Screen Size, and Part Number:
Before finalizing your decision, carefully check your device's model, screen size, and part number. Confirming these details is crucial in guaranteeing that the HSD190MGW1-F LCD screen is the appropriate replacement for your current display. In case of uncertainty regarding compatibility, feel free to reach out to us by providing the specific model number along with clear photos of your original screen. This additional information will aid us in verifying compatibility and recommending the most suitable product for your needs.
2. Compatibility Assurance:
It's important to note that while the HSD190MGW1-F LCD screen may not have an identical model number to your original screen, we assure you that the panel we send is designed to be fully compatible with your device. We take measures to ensure that the replacement screen aligns perfectly with your model, guaranteeing a seamless fit. Our commitment is to provide you with a replacement screen that not only meets but exceeds the performance standards of your original display.
3. Quality Testing and Adhesive Tape:
Prior to shipment, each HSD190MGW1-F LCD screen undergoes rigorous testing to ensure its functionality and performance. This testing process is in place to identify and address any potential issues before the product reaches your hands. It is worth noting that adhesive tape is not included with the screen by default. If you require adhesive tape for the installation process, kindly leave a message specifying your need during the ordering process. This way, we can include the necessary adhesive tape to facilitate a smooth and secure installation of your new LCD screen.
HSD190MGW1-F LCD Panel Shipping and Package :
Payment Information for HSD190MGW1-F LCD Screen :
1. Accepted Payment Methods: We offer flexibility in payment options to accommodate your convenience. Currently, we accept the following payment methods:
T/T (Telegraphic Transfer)
Western Union
Money Order
The most straightforward and recommended method is direct order payment. Choose the payment option that suits you best. If you have specific preferences or require alternative payment terms, kindly inform us before placing your order so that we can assist you accordingly.
2. Payment Deadline: To ensure a smooth and efficient transaction, full payment must be completed within 7 days after placing your order. It's important to adhere to this timeframe to avoid any complications, as orders not paid within the specified period may be deemed invalid or automatically canceled by the system.
3. Complete Buyer's Information: When providing your buyer's information, please ensure that all details are accurately filled out. Include essential information such as:
Contact Person
Address
Post Code
Telephone Number
Completing these details accurately is crucial for a seamless shipping and delivery process. It helps us ensure that your HSD190MGW1-F LCD screen reaches the intended destination without any issues.
We appreciate your cooperation in adhering to the payment terms and providing accurate buyer's information. If you have any questions or require assistance regarding the payment process, feel free to reach out to our customer support team. We strive to make the payment process as straightforward as possible, facilitating a secure and efficient transaction for your HSD190MGW1-F LCD screen purchase.
Refund & Return Policy for HSD190MGW1-F LCD Screen:
1. Refund for Transportation Damage:
We understand that unforeseen circumstances may occur during transportation, and your satisfaction is our priority. In the event that your HSD190MGW1-F LCD screen arrives damaged due to transportation, we offer a refund for the damaged item. Please notify us of any transportation-related damages promptly, providing clear evidence, such as photos, to support your claim. Our team will then initiate the refund process to ensure a fair resolution to the issue.
2. Secure Packaging Assurance:
Rest assured that we take great care in packaging your HSD190MGW1-F LCD screen to minimize the risk of damage during transit. Our packaging process is designed to provide optimum protection, ensuring that the screen reaches you in perfect condition. If you have any concerns about the packaging or notice any damage upon receipt, please document it and contact us immediately. We are committed to addressing any issues promptly and efficiently.
3. Return for Item Not as Described:
Your satisfaction with the HSD190MGW1-F LCD screen is of utmost importance to us. If, upon receiving the item, you find that it does not match the description provided, you have the option to return the product. Please initiate the return process by contacting our customer support team and providing details about the discrepancies between the received item and the description. We will guide you through the return procedure to ensure a smooth and hassle-free experience.
Important Considerations:
To qualify for a refund or return, please adhere to the specified timelines and procedures outlined in our policy.
Ensure that you retain any original packaging and documentation for return purposes.
HSD190MGW1-F LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of HSD190MGW1-F ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of HSD190MGW1-F ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods HSD190MGW1-F ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of HSD190MGW1-F via credit card ?
A: Yes!you can use your credit card through your Paypal account.
