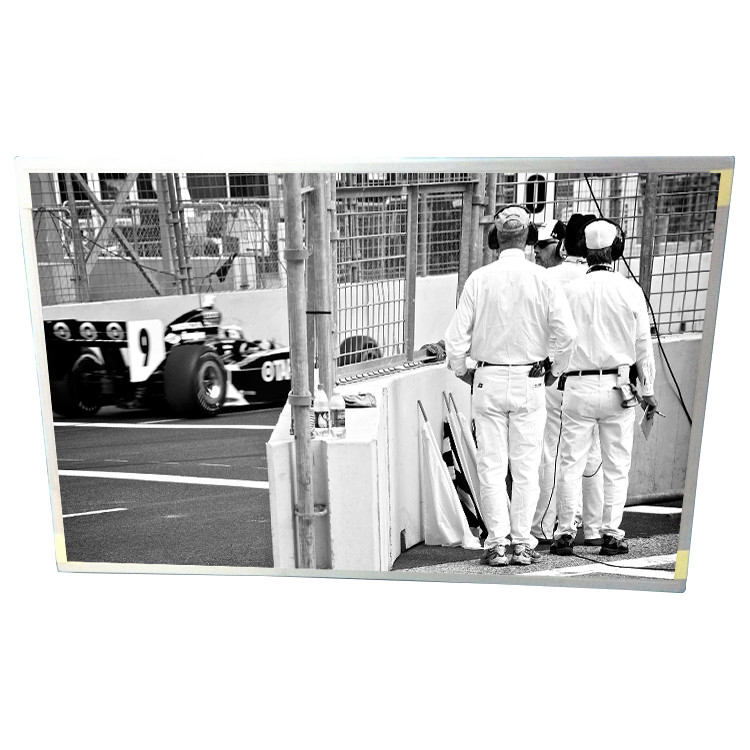

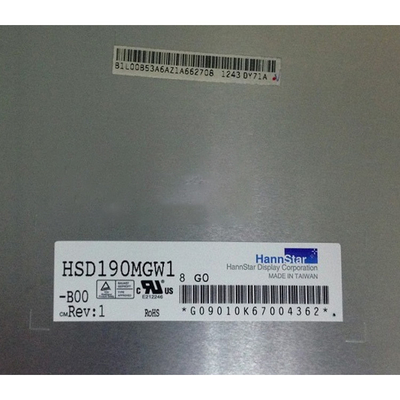

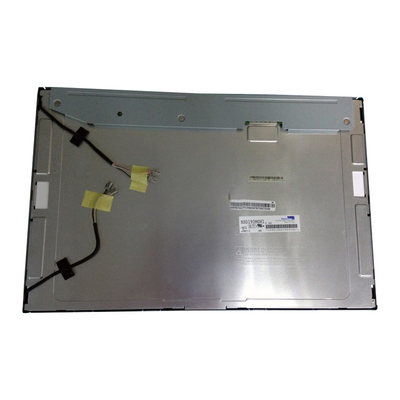

RGB 1440×900 WXGA+ 89PPI 19 Inch LCD Display LCD Screen HSD190MGW1-B00
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD190MGW1-B00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD190MGW1-B00 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1440(RGB)×900, WXGA+ 89PPI | Active Area: | 408.24(W)×255.15(H) Mm |
| Bezel Opening: | 412.2(W)×259.2(H) Mm | Outline Dim.: | 428 × 278 × 19 (H×V×D) |
| Treatment: | Glare (Haze 0%), Hard Coating (3H) | Weight: | 2.20±0.20Kgs |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| High Light: | WXGA+ 19 inch LCD Display,HSD190MGW1-B00 LCD Screen,HSD190MGW1-B00 |
||
Product Description
19.0 inch LCD Display LCD screen HSD190MGW1-B00
HSD190MGW1-B00 LCD Panel Product details :
| HannStar LCD Screen HSD190MGW1-B00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD190MGW1-B00 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1440(RGB)×900, WXGA+ 89PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 408.24(W)×255.15(H) mm |
| Bezel Opening | 412.2(W)×259.2(H) mm |
| Outline Dim. | 428(H)×278(V) ×19(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/75/65 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.2M 72% NTSC |
| Light Source | CCFL [4 pcs] , 50K hours , W/O Driver |
| Weight | 2.20±0.20Kgs |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 19.0 inch LCD Display LCD screen HSD190MGW1-B00 | |
