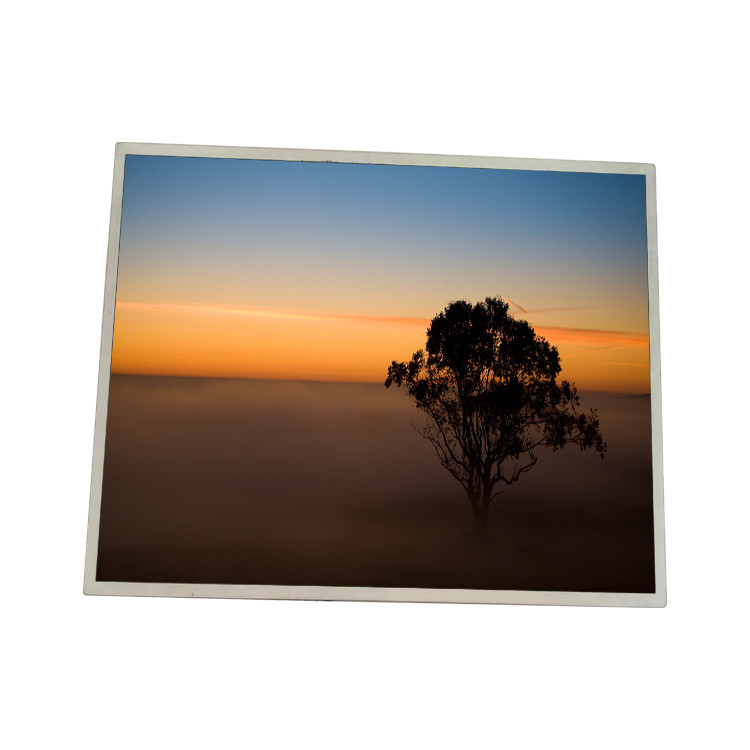

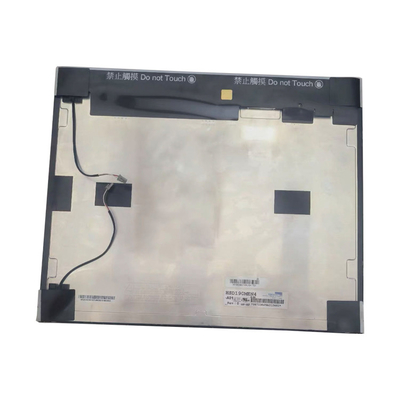

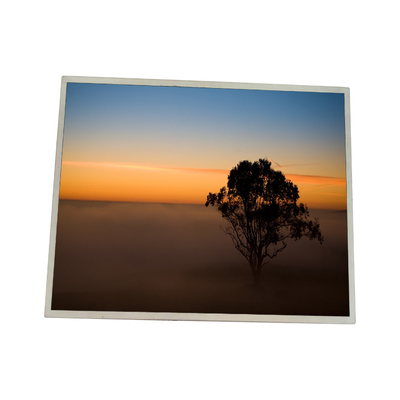

HSD190MEN4-A01 LCD Screen 1280*1024 LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD190MEN4-A01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD190MEN4-A01 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Bezel Opening: | 380.2(W)×305.0(H) Mm | Outline Dim.: | 396(W)×324(H)×17(D) Mm |
| Treatment: | Antiglare, Hard Coating (3H) | Mass: | 1.95±0.15Kgs |
| Used For: | Desktop Monitor / Industrial | Interface Type: | LVDS (2 Ch, 8-bit) , Connector 30 Pins |
| High Light: | HSD190MEN4-A01,HSD190MEN4-A01 LCD Screen,1280*1024 LCD Display Panel |
||
Product Description
HSD190MEN4-A01 LCD Screen 1280*1024 LCD Display Panel
HSD190MEN4-A00 LCD Panel Product details :
| HannStar LCD Screen HSD190MEN4-A01 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD190MEN4-A01 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | 380.2(W)×305.0(H) mm |
| Outline(mm) | 396(W)×324(H)×17(D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 (Typ.)(cd/m²) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/75/85 (Typ.)(CR＞10) |
| Work Mode | TN, Normally White, Transmissive |
| Good View at | 6 o'clock |
| Response | 4 (Typ.)(Tr+Td) ms |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 2 pcs CCFL , 40K hours , No Driver |
| Mass | 1.95±0.15Kgs |
| Used for | Desktop Monitor / Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| HSD190MEN4-A01 LCD Screen 1280*1024 LCD Display Panel | |
Why Buy the HSD190MEN4-A01 LCD Screen from Us:
Thorough Testing for Quality Assurance:
We take quality seriously. Every HSD190MEN4-A01 LCD Screen undergoes a comprehensive testing process before being carefully packed and shipped. This ensures that you receive a product that meets our high standards of performance and reliability.
Customer-Centric Warranty and Guarantee:
Enjoy peace of mind with our 30-day Money Back Guarantee on all new items. Additionally, your purchase is backed by a 12-month warranty for added assurance (excluding used items). Our commitment is not just to provide a product but to ensure its lasting performance and your satisfaction.
Efficient Express Handling and Shipping:
Your order is our priority. We offer express handling, ensuring that items are dispatched on the same business day before our cut-off time upon receipt of payment. This commitment to prompt service minimizes wait times and gets your product to you swiftly.
Flexible Pick-Up Options:
For local customers, we provide the convenience of pick-up options. Schedule an appointment, and you can collect your HSD190MEN4-A01 LCD Screen at your convenience. This service caters to those who prefer a more hands-on approach to receiving their products.
HSD190MEN4-A00 LCD Panel Shipping and Package :
HSD190MEN4-A01 LCD Screen Shipping Information:
Please take note that our business/working days do not include weekends or holidays.
Dispatch Process:
We are committed to a swift delivery process. Once the payment is cleared, we will promptly ship your item via Registered Airmail within 2 business days. However, please be aware that the shipping duration may be extended at times due to customs procedures, holidays, or unforeseen circumstances.
Shipping Times:
To Most Countries (e.g., Germany, Spain, Sweden, Switzerland, etc.): 10-25 business days.
To the USA, UK, and Australia: 7-18 business days.
To Russia: 25-60 business days, attributed to the slower processing of Russia Post.
For those seeking a more expedited delivery, we encourage you to contact us for express shipping details.
Global Shipping and Address Verification:
We ship parcels globally, treating each shipment as a gift.
The shipping address corresponds to the one provided through PayPal. Ensure your shipping address is accurate to prevent any delivery complications.
Signature Requirement:
Our packages are dispatched with a signature requirement for added security.
If there is no recipient available to sign for the package, it will be returned. We kindly remind you to visit your local post office to collect the package at your earliest convenience.
We understand the importance of a timely and secure delivery process, and we strive to make it as seamless as possible for our customers. For any inquiries or special requests regarding shipping, including faster delivery options, please don't hesitate to contact our customer support. Your satisfaction is our priority, and we appreciate your trust in choosing our services.
HSD190MEN4-A01 LCD Screen Warranty Information:
At YONGS, we take pride in delivering high-quality products, and to ensure your satisfaction and confidence in our offerings, we provide a comprehensive warranty for the HSD190MEN4-A01 LCD Screen. This warranty encompasses a period of 120 days, offering you peace of mind against any potential manufacturer defects that may arise during this timeframe.
Our commitment to quality is reflected in the coverage provided, addressing issues such as fuzzy displays, image irregularities, V-line or H-line discrepancies. We understand that a flawless visual experience is crucial, and our warranty is designed to guarantee your satisfaction with the performance of the LCD screen.
Furthermore, our warranty extends to cover 3-5 dead pixels, aligning with the specifications outlined in the ISO 13406-2 norm. This standard serves as a benchmark for the industry, and we stand by it to ensure transparency and consistency in our warranty terms. It's important to note that adherence to the ISO 13406-2 norm is a fundamental aspect of our warranty policy. If, for any reason, you do not agree with the norm, we kindly advise that you reconsider participating in this auction.
At YONGS, we are committed to providing not only cutting-edge technology but also a customer-centric approach that prioritizes your satisfaction. Our warranty terms are a testament to our dedication to quality assurance, and we encourage you to reach out to our customer support team if you have any inquiries or require further clarification regarding the warranty for the HSD190MEN4-A01 LCD Screen.
HSD190MEN4-A00 LCD Panel FAQ :
Q: How long will I receive my goods HSD190MEN4-A01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of HSD190MEN4-A01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders of HSD190MEN4-A01 ?
A: Of course ! Sample order is welcome !
