HSD190MEN3-A03 LCD Screen Display 19.0 Inch LCD Panel Module
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD190MEN3-A03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD190MEN3-A03 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Bezel Opening: | 380.2(W)×305.0(H) Mm | Outline Dim.: | 396(W)×324(H)×17(D) Mm |
| Treatment: | Antiglare, Hard Coating (3H) | Weight: | 1.95Kgs (Typ.) |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| High Light: | HSD190MEN3-A03,HSD190MEN3-A03 LCD Screen Display,19.0 inch LCD Panel Module |
||
Product Description

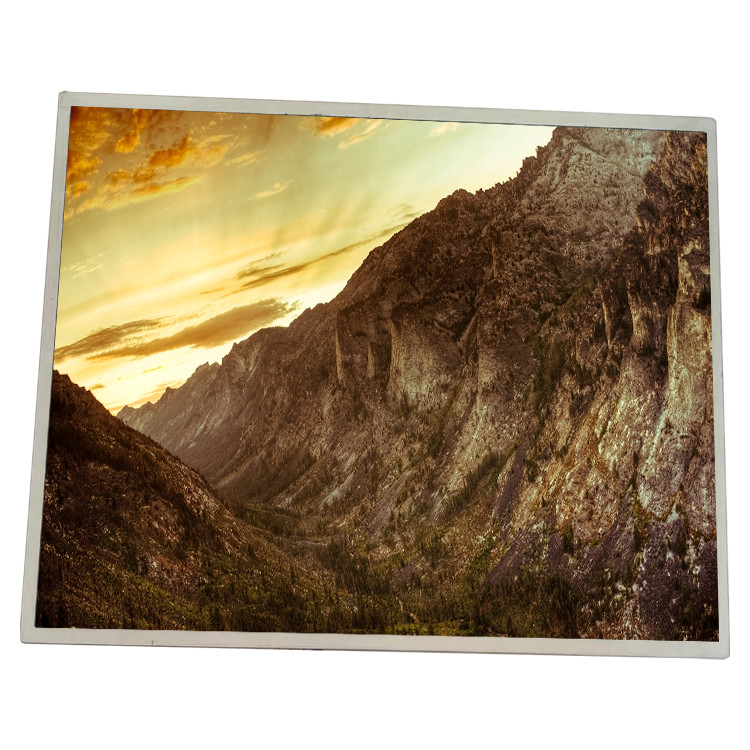

HSD190MEN3-A03 LCD Screen Display 19.0 inch LCD Panel Module
HSD190MEN3-A03 LCD Panel Product details :
| HannStar LCD Screen HSD190MEN3-A03 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD190MEN3-A03 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | 380.2(W)×305.0(H) mm |
| Outline Dim. | 396(W)×324(H)×17(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 1.2/3.8 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 73% NTSC |
| Light Source | CCFL [4 pcs] , 40K hours , W/O Driver |
| Weight | 1.95Kgs (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| HSD190MEN3-A03 LCD Screen Display 19.0 inch LCD Panel Module | |
HSD190MEN3-A03 LCD Screen Terms and Payment Information:
Global Accessibility and Payment Options: YONGS proudly extends its shipping services worldwide, ensuring that customers from across the globe can benefit from our products. We accept payments through PayPal and most major credit cards, offering you flexibility and convenience in completing your transactions securely.
Individual Pricing: Each item, including the HSD190MEN3-A03 LCD screen, is priced individually. This transparent pricing approach allows you to make informed decisions based on the specific products you require without any hidden costs.
Availability and Quality Assurance: All items listed are subject to availability and undergo rigorous Quality Assurance (QA) testing and inspection processes. This commitment ensures that the products you receive meet the highest standards of quality and performance. In the rare event that an item does not pass our QA testing, we will promptly inform you and explore alternative solutions.
Customer Service Excellence: For any inquiries, concerns, or assistance, our dedicated Customer Service team is readily available. You can contact us through WhatsApp or the "Contact Seller" option to receive prompt and personalized support. Your satisfaction is our priority, and we are committed to addressing your needs efficiently.
HSD190MEN3-A03 LCD Panel Shipping and Package :
HSD190MEN3-A03 LCD Screen Delivery Details and Customer Assurance:
Extensive Inventory: Our commitment to swift deliveries is reinforced by maintaining a vast inventory of more than 10,000 transistors in our warehouse. This substantial stockpile enables us to significantly reduce lead times for most items, ensuring that you receive your HSD190MEN3-A03 LCD screen promptly.
Responsive Customer Service: At YONGS, we prioritize your satisfaction. Our dedicated customer service team is available to address your queries within an impressive 1-4 hour response time. If you have any questions or require assistance, do not hesitate to reach out to our sales team for prompt and personalized support.
Experienced Technical Support: Benefit from the expertise of our experienced technical support team. Whether you have inquiries regarding product specifications or need assistance with technical issues, our team is here to provide knowledgeable and reliable support.
Generous Warranty Period: All goods purchased from us come with a robust 180-day warranty. This warranty underscores our commitment to delivering products of the highest quality, and it provides you with peace of mind knowing that you are covered for an extended period.
Global Network of Suppliers: With a network of 2000+ suppliers, we have the capability to assist you in sourcing even the most challenging-to-find components. Count on us to help you obtain the components you need, making YONGS your trusted partner in procurement.
Risk-Free Guarantee: We stand by the quality of our products. To offer you a risk-free shopping experience, we provide a 60-day refund guarantee. If the item you purchase from our store does not meet your expectations in terms of quality, simply return it to us within 60 days for a replacement or refund.
HSD190MEN3-A03 LCD Screen Warranty and Replacement Policy:
Replacement/Exchange Terms:
Timeframe: YONGS offers a replacement or exchange option within a 30-day window from the date you receive the HSD190MEN3-A03 LCD screen. This ensures that you have ample time to inspect and assess the product for any potential issues.
Shipping Costs: In the event of a return or exchange, the buyer is responsible for covering the associated shipping costs. This policy allows for a fair and transparent process, ensuring that all parties are aware of their responsibilities.
Condition of the Item: To be eligible for exchange or replacement, the HSD190MEN3-A03 LCD screen must be in the same condition as when it was dispatched by YONGS. This includes ensuring that the item is free from damage, defects, or any alterations not made by the seller. By adhering to these conditions, we aim to facilitate a smooth and efficient exchange process.
YONGS is committed to providing high-quality products, and our warranty and replacement policy reflect our dedication to customer satisfaction. If you encounter any issues or have questions regarding the warranty process, please reach out to our Customer Service team via WhatsApp or the "Contact Seller" option.
HSD190MEN3-A03 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of HSD190MEN3-A03 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods HSD190MEN3-A03?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of HSD190MEN3-A03 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of HSD190MEN3-A03 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
