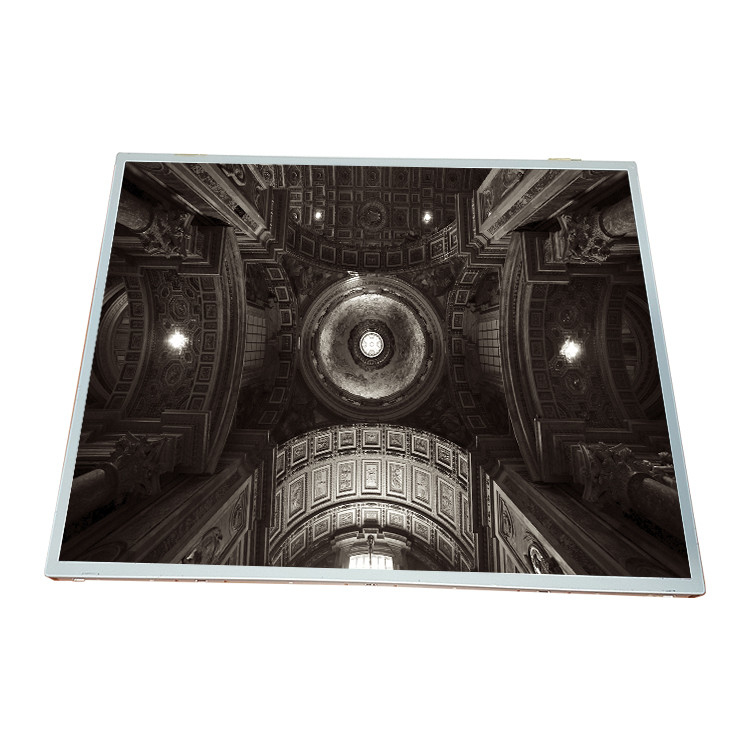

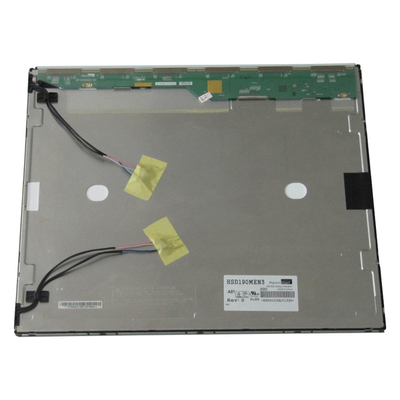

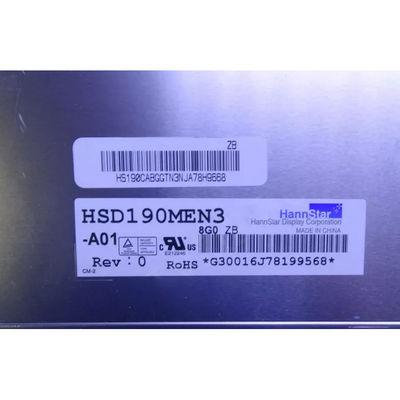

Antiglare LCD Panel Replacement 19 Inch LCD Screen HSD190MEN3-A01
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD190MEN3-A01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD190MEN3-A01 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Bezel Opening: | 380.2(W)×305.0(H) Mm | Outline(mm): | 396(H)×324(V) ×17(D) Mm |
| Treatment: | Antiglare, Hard Coating (3H) | Weight: | 2.25Kgs (Typ.) |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| High Light: | Antiglare LCD Panel Replacement,LVDS 19 Inch LCD Screen,HSD190MEN3-A01 |
||
Product Description
replaced lcd panel 19.0 inch lcd screen HSD190MEN3-A01
HSD190MEN3-A01 LCD Panel Product details :
| HannStar LCD Screen HSD190MEN3-A01 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD190MEN3-A01 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | 380.2(W)×305.0(H) mm |
| Outline Dim. | 396(H)×324(V) ×17(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 1.2/3.8 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 73% NTSC |
| Light Source | CCFL [4 pcs] , 40K hours , W/O Driver |
| Weight | 2.25Kgs (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| replaced lcd panel 19.0 inch lcd screen HSD190MEN3-A01 | |
HSD190MEN3-A01 LCD Panel Shipping and Package :
HSD190MEN3-A01 LCD Module Estimated Delivery Time:
To provide you with flexibility and options, we offer the following estimated delivery times for different shipping methods:
Economy: 15-50 days
This is the most cost-effective shipping option, offering a more extended delivery window. It is ideal for customers who prioritize savings and are willing to wait for a longer shipping duration.
Standard: 10-35 days
The standard shipping option strikes a balance between cost and delivery time. It provides a more moderate timeframe for customers who seek a timely delivery without the urgency of expedited shipping.
Expedited: 4-7 days
If you require your HSD190MEN3-A01 LCD module urgently, the expedited shipping option is available for a quicker delivery, typically within 4 to 7 days. This option is recommended for those who prioritize speed and need their order promptly.
Please note that these estimated delivery times are indicative and may vary based on factors such as destination, customs processing, and any unforeseen circumstances. We are committed to keeping you informed and ensuring a smooth delivery process. If you have specific delivery requirements or inquiries, feel free to contact us for personalized assistance.
HSD190MEN3-A01 LCD Module Returns Policy:
Return Period:
If you are not satisfied with your item upon receipt, you may return it within 30 days for either a replacement or a refund. To initiate the return process, please contact us before returning the item.
Defective Items:
Defective items must be reported and returned within the specified warranty period. If possible, please return the item in its original packaging. When reporting a defect, provide us with details about the issue and include your Payment ID to expedite the resolution process.
Return Shipping:
Return shipping costs are the responsibility of the buyer. We recommend using a reliable shipping service with tracking to ensure the safe return of the item.
Responsibilities as a Seller:
As a responsible seller, we are committed to actively undertaking the following responsibilities:
a. If the item is lost during transit, we will work to resolve the issue promptly.
b. In the event of damage during transport, we will assist in finding a suitable solution.
c. If we make errors in shipping the wrong items, we will take corrective measures to address the issue.
d. Should quality problems arise during the actual use of the item, we are dedicated to resolving them in a timely and effective manner.Our goal is to ensure a positive and hassle-free experience for our customers. If you have any concerns, encounter issues, or need assistance with the return process, please do not hesitate to contact us. We are here to address your queries and provide support throughout the returns process.
HSD190MEN3-A01 LCD Module Policy Overview:
Warranty and Return:
Enjoy peace of mind with our comprehensive warranty policy. We offer a generous 1-year warranty, reflecting our confidence in the quality of our products. Additionally, we provide a 30-day window for free returns, ensuring your satisfaction with every purchase.
Quality Assurance:
Trust in the authenticity of our products. We guarantee true parts condition, with a commitment to providing genuine components. Say goodbye to concerns about counterfeit items; our focus is on delivering authentic, high-quality LCD modules.
Extensive Inventory:
Benefit from our vast inventory with over 10,000 lines in stock. Experience the convenience of swift order processing, as we can ship within 1 day for items readily available. For larger quantities with 100,000 lines in stock, expect a quick 3-5 days lead time.
Custom Services:
Tailor your experience with our customizable services. Choose from options such as blind shipping, pre-shipping pictures, shipping directly from China, and super-fast shipping. Additionally, take advantage of our expertise in checking the true condition of parts, ensuring that your specific needs are met.
Quick Quotes:
Experience efficiency in your procurement process. Receive quotes promptly, with a turnaround time of within 1 hour for most items. Even for items not currently in stock, we commit to providing quotes within 24 hours, allowing you to make informed decisions swiftly.
HSD190MEN3-A01 LCD Panel FAQ :
Q: Do you accept sample orders for HSD190MEN3-A01 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of HSD190MEN3-A01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty of HSD190MEN3-A01 ?
A: 90 days warranty .
Q: Can you give me a discount if I need a large quantity of HSD190MEN3-A01 ?
A: Of course!If you make a large order, we will give you a discount.
