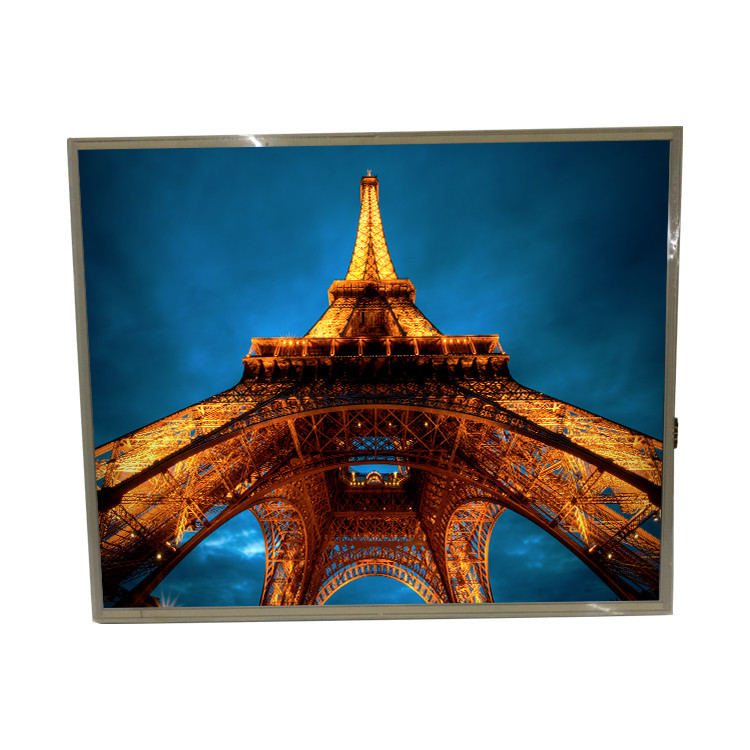

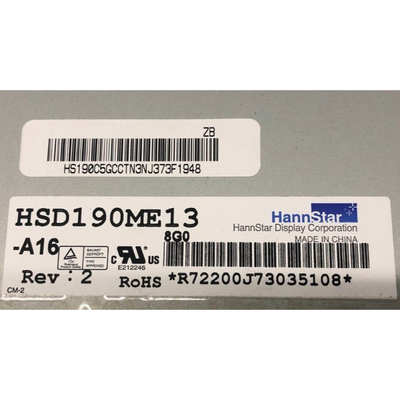

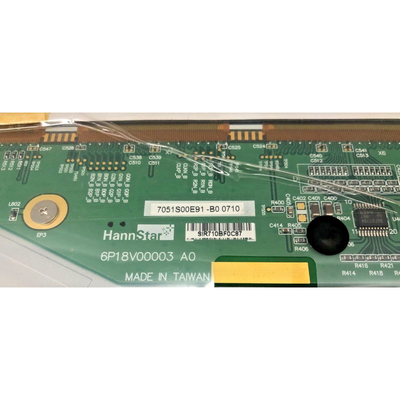

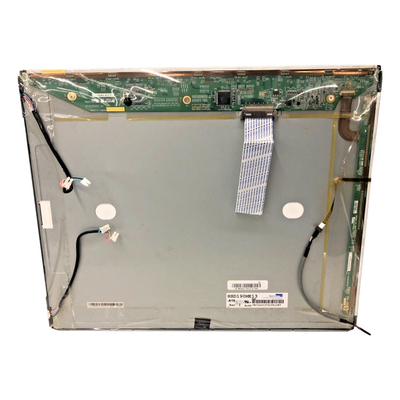

1280*1024 LCD Display Panel HSD190ME13-A16 19 inch LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD190ME13-A16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD190ME13-A16 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Bezel Opening: | 380.2(W)×305.0(H) Mm | Outline Dim.: | 396.324(W)×324(H)×18(D) Mm |
| Treatment: | Antiglare, Hard Coating (3H) | Light Source: | CCFL [4 Pcs] , 40K Hours , W/O Driver |
| Weight: | 2.60±0.15Kgs | Designed For: | Desktop Monitor |
| High Light: | HSD190ME13-A16,1280*1024 LCD Display Panel,Hard coating 19 inch LCD Screen |
||
Product Description
19.0 inch 1280*1024 LCD Panel HSD190ME13-A16 LCD Screen
HSD190ME13-A16 LCD Panel Product details :
| HannStar LCD Screen HSD190ME13-A16 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD190ME13-A16 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | 380.2(W)×305.0(H) mm |
| Outline Dim. | 396.324(W)×324(H)×18(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/70/65 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.2M 73% NTSC |
| Light Source | CCFL [4 pcs] , 40K hours , W/O Driver |
| Weight | 2.60±0.15Kgs |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 19.0 inch 1280*1024 LCD Panel HSD190ME13-A16 LCD Screen | |
HSD190ME13-A16 LCD Display Product Information:
Quality Assurance:
Our commitment to delivering high-quality products is paramount. Before shipment, each HSD190ME13-A16 LCD display undergoes rigorous professional testing to ensure its functionality and reliability. However, in the rare event that you encounter any defects upon receiving the product, please reach out to us promptly. Your satisfaction is our priority, and we aim to address any issues swiftly. Please be aware that as part of international trade, time zone differences may affect our response times. Rest assured, we will strive to respond to your inquiries within 24 hours. We appreciate your understanding in this matter.
Product Condition Options:
To cater to diverse customer preferences, we offer both brand new and second-hand HSD190ME13-A16 LCD displays. We understand that your requirements may vary, and we are committed to accommodating them. If you have specific preferences, kindly communicate them to us, and we will strive to provide you with the most favorable pricing options based on your needs.
Warranty Information:
The warranty period for our HSD190ME13-A16 LCD displays ranges from 3 to 12 months, depending on the specific product. We encourage you to consult with us to determine the exact warranty duration applicable to your purchase. Our goal is to ensure that you experience optimal performance and satisfaction with our products. Thank you for considering our HSD190ME13-A16 LCD display, and feel free to contact us for any further inquiries or clarification regarding the warranty period. Your confidence in our products is greatly valued.
HSD190ME13-A16 LCD Panel Shipping and Package :
Transportation Information for HSD190ME13-A16 LCD Display:
Undeliverable Addresses:
We want to ensure a smooth delivery process for your HSD190ME13-A16 LCD display. Please be advised that we are not responsible for undeliverable addresses. In cases where an incorrect address is provided by the buyer, we reserve the right to charge the return shipping fee once again. It is essential to double-check and provide accurate shipping information to avoid any complications. Items not received due to an invalid registered address are not covered by our full refund or replacement policy.
Shipping Options:
We offer worldwide shipping at a fixed rate through Hong Kong Airlines mail or China Airmail. This international shipping method may take a longer duration to reach its destination. Typically, the shipping time ranges from 15 to 35 working days (for reference only), excluding Saturdays and Sundays.
Expedited Shipping Services:
For those who require faster delivery, we provide the option for expedited shipping services. You can choose between EMS, with a delivery time of 5-8 days, or DHL, with a delivery time of 2-5 days. Please note that expedited shipping comes at a higher cost than standard postage. If you are willing to opt for expedited shipping, kindly contact us, and we will assist you in arranging the most suitable and swift delivery option based on your preferences.
Packing Information for HSD190ME13-A16 LCD Display:
Outer Packing:
To ensure the safe transit of your HSD190ME13-A16 LCD display, we employ a robust outer packing solution. The product is securely enclosed within a strong carton that provides protection against external impacts during transportation. This outer packing is designed to withstand handling and potential stresses encountered in transit, minimizing the risk of damage to the contents.
Inner Packing:
Within the outer carton, we implement an additional layer of protection through the use of foam as the inner packing material. The foam serves as a cushion, providing an extra barrier against shocks and vibrations. This inner packing method enhances the overall structural integrity of the package, offering added security for the delicate components of the HSD190ME13-A16 LCD display.
Ensuring Strength and Safety:
Our packing strategy is meticulously designed to guarantee that your HSD190ME13-A16 LCD display arrives in optimal condition. The combination of a strong carton for outer protection and foam for inner cushioning creates a packaging solution that is both strong and safe. This approach significantly reduces the likelihood of the product being damaged during transportation, safeguarding its functionality and appearance.
Preventing Breakage:
The primary objective of our packing process is to prevent breakage during transit. By employing a combination of durable outer cartons and protective foam, we aim to minimize the impact of handling and transportation-related stresses on the HSD190ME13-A16 LCD display. Our commitment to quality packing reflects our dedication to delivering products to you in pristine condition.
HSD190ME13-A16 LCD Panel FAQ :
Q: How long will I receive my goods HSD190ME13-A16 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of HSD190ME13-A16 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of HSD190ME13-A16 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
