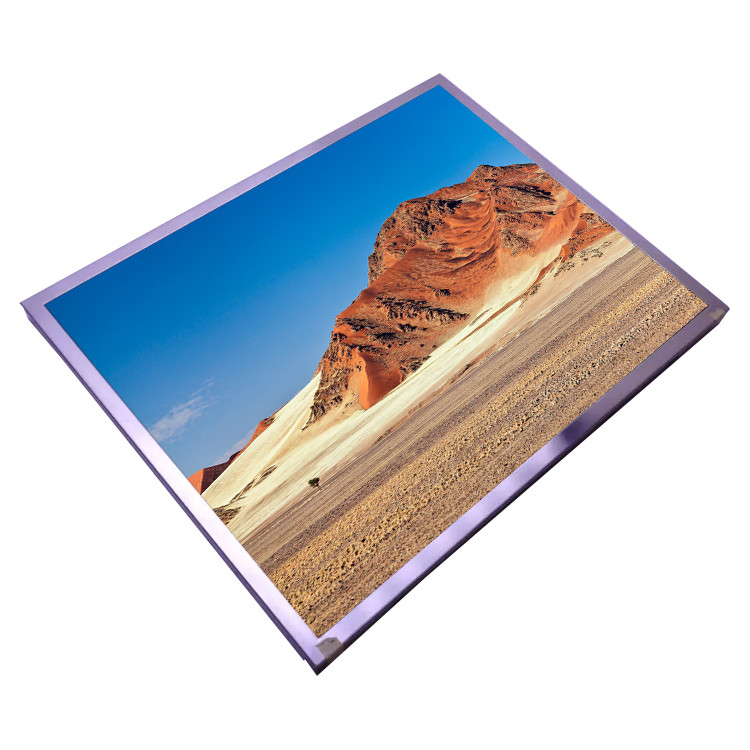

HSD190ME12-A10 LCD Display Screen 19.0 Inch 1280*1024 LCD Panel Module For Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD190ME12-A10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD190ME12-A10 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Outline Size: | 404.2(H)×330(V) ×19.5(D) Mm | Treatment: | Antiglare, Hard Coating (3H) |
| Response Time: | 2/6 (Typ.)(Tr/Td) | Display Colors: | 16.2M 74% NTSC |
| Weight: | 2.35±0.12Kgs | Designed For: | Desktop Monitor |
| Highlight: | HSD190ME12-A10,LCD Display Screen 19.0 Inch,1280*1024 LCD Panel Module |
||
Product Description
HSD190ME12-A10 LCD display screen 19.0 inch 1280*1024 LCD Panel module for Desktop Monitor
HSD190ME12-A10 LCD Panel Product details :
| HannStar LCD Screen HSD190ME12-A10 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD190ME12-A10 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Outline Dim. | 404.2(H)×330(V)×19.5(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/70/65 (Typ.)(CR≥10) |
| Viewing Angle | CCFL [4 pcs] , 50K hours , W/O Driver |
| Weight | 2.35±0.12Kgs |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| HSD190ME12-A10 LCD display screen 19.0 inch 1280*1024 LCD Panel module for Desktop Monitor | |
HSD190ME12-A10 LCD Panel Shipping and Package :
HSD190ME12-A10 LCD Screen Packaging and Handling Information :
Ensuring the safe and secure delivery of the HSD190ME12-A10 LCD screen to our customers is of utmost importance to us. Here's a brief overview of our packaging and handling procedures:
1. ESD Packaging for Safety:
- Each HSD190ME12-A10 LCD screen is meticulously handled and packaged with Electrostatic Discharge (ESD) protection in mind. This specialized packaging is designed to prevent any electrostatic damage during the transportation and handling of the product.
2. Custom Shipping Cartons:
- To enhance protection during transit, we utilize custom shipping cartons tailored to the dimensions of the HSD190ME12-A10 LCD screen. These cartons are robust and sturdy, providing an additional layer of defense against external impacts and handling challenges.
3. Securely Packed for Transit:
- Our team takes great care in securely packing each item within the custom cartons, ensuring that the HSD190ME12-A10 LCD screens are snugly fit and well-protected. This minimizes the risk of movement or damage during transportation.
4. Attention to Fragile Components:
- Given the delicate nature of LCD screens, special attention is paid to protecting fragile components. Additional padding and cushioning materials are strategically placed to absorb shocks and vibrations, reducing the likelihood of damage to the screen.
5. Quality Assurance:
- Before dispatch, each packaged item undergoes a thorough quality assurance check to confirm that it meets our high standards for safe and intact delivery. This step further ensures that customers receive their HSD190ME12-A10 LCD screens in the best possible condition.
6. Environmentally Responsible Packaging:
- While prioritizing product safety, we also strive to minimize our environmental impact. Our packaging materials are chosen with sustainability in mind, adhering to responsible practices in line with our commitment to eco-friendly operations.
At every step of the packaging and handling process, our goal is to provide our customers with a product that arrives in pristine condition. If you have any specific requests or concerns regarding the packaging of your order, please do not hesitate to reach out to us.
HSD190ME12-A10 LCD Screen Shipment Information :
1. Standard Shipping Included:
- Our default shipping method for this auction is standard shipping. If you have specific requirements for express shipping, please reach out to us via email, and we'll be happy to assist you with the available options and associated costs.
2. Customized Shipment Options:
- We understand that different customers have varied preferences and budget considerations. If you're seeking a more cost-effective shipment method, feel free to contact us. We are open to discussing and providing alternative shipping solutions that suit your needs.
3. Worldwide Shipping:
- We ship to destinations around the globe. However, if you do not find your country on the shipping list, kindly get in touch with us. We will promptly provide you with a personalized shipping quote tailored to your location.
4. Delivery Time Considerations:
- Please be aware that the arrival time of your parcel is subject to various factors, including weather conditions, pandemic-related impacts, customs policies, public holidays, and international transaction intricacies. We appreciate your patience and understanding as we navigate these variables to ensure a timely delivery.
5. Communication is Key:
- If you have any questions or concerns regarding your shipment, feel free to reach out to us. We are here to assist you and provide updates on your order status. Open communication helps us address any queries you may have promptly.
Warm Reminder for HSD190ME12-A10 LCD Screen:
(1) Attention to Brazilian Buyers:
For shipments through DHL/FEDEX/EMS, kindly provide us with your CNPJ or CPF. This ensures a smooth and efficient delivery process.
(2) Important Information for Russian Buyers:
Shipments to Russia are exclusively handled through EMS. To facilitate the delivery, we request the full name of the receiver. Your cooperation in providing accurate details is appreciated.
(3) Customs and Duties Clarification:
The responsibility for duty or custom fees lies with the buyer and is determined by the regulations of the buyer's country. Please note that the seller does not influence these fees. If you prefer a lower declared value for customs purposes, please inform us promptly so that we can accommodate your request.
(4) Attention to Buyers in Remote Areas:
For buyers located in remote areas, an additional fee of USD30.00 is applicable when shipping through FEDEX/DHL. We appreciate your understanding in this matter, as this surcharge is necessary to cover the extra logistics costs associated with remote deliveries.
HSD190ME12-A10 LCD Panel FAQ :
Q: How long will I receive my goods HSD190ME12-A10 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of HSD190ME12-A10?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of HSD190ME12-A10 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty .
