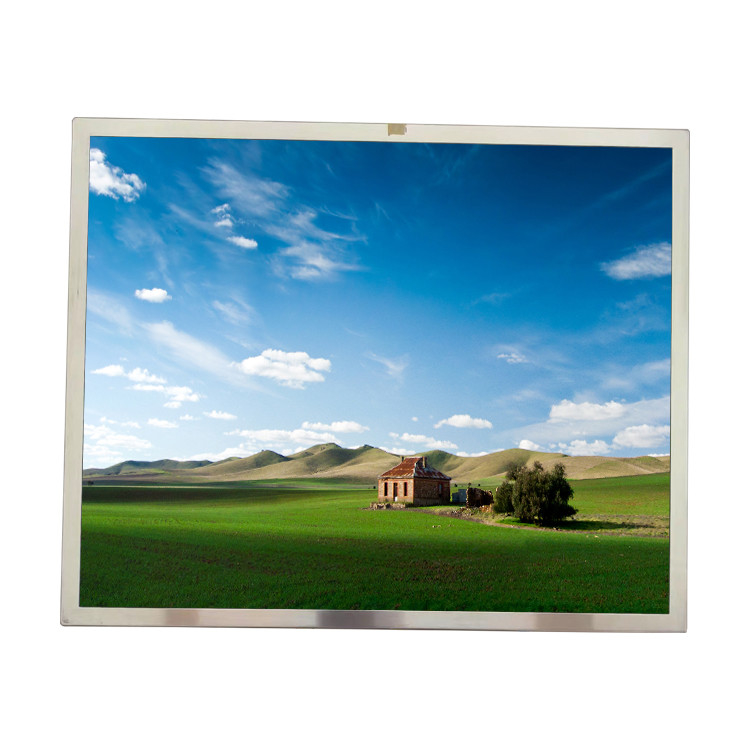

Antiglare 19 Inch LCD Screen 1280*1024 LCD Display Panel HSD190ME12-A00
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD190ME12-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD190ME12-A00 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Outline(mm): | 404.2 × 330 × 19.5 (H×V×D) | Treatment: | Antiglare, Hard Coating (3H) |
| Response: | 16 (Typ.)(Tr+Td) Ms | Color Depth: | 16.2M 68% NTSC |
| Mass: | 2.40Kgs (Typ.) | Used For: | Desktop Monitor |
| High Light: | Antiglare 19 Inch LCD Screen,LCD Display Panel HSD190ME12-A00,HSD190ME12-A00 |
||
Product Description
19.0 Inch lcd screen1280*1024 lcd display HSD190ME12-A00
HSD190ME12-A00 LCD Panel Product details :
| HannStar LCD Screen HSD190ME12-A00 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD190ME12-A00 |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Outline(mm) | 404.2 × 330 × 19.5 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/70/70 (Typ.)(CR≥10) |
| Response | 16 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.2M 68% NTSC |
| Backlight | 4 pcs CCFL , 50K hours , No Driver |
| Mass | 2.40Kgs (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 19.0 Inch lcd screen1280*1024 lcd display HSD190ME12-A00 | |
HSD190ME12-A00 LCD Screen Kindly Reminder :
1. Verify Compatibility:
Before making your purchase, double-check the compatibility with your device's brand and model. This precautionary step will prevent any unnecessary inconvenience or compatibility issues.
2. Bulk Orders:
Should you require a larger quantity than listed, please reach out to us directly. We are more than happy to assist you in arranging a higher quantity to meet your specific needs.
3. Accurate Address Details:
It is crucial to provide accurate and complete address details during the checkout process. We recommend including your full name to ensure proper delivery. Please be aware that we cannot be held responsible for any delays or non-deliveries resulting from inaccurate or incomplete addresses.
4. Import Duties and Custom Fees:
Please be aware that additional charges such as import duties, remote area fees, taxes, or other customs-related fees may apply. These fees are not within our control and are the responsibility of the buyer. We advise checking with your local customs office for more information on potential additional charges.
5. Payment Issues:
If you encounter any difficulties with the payment process, do not hesitate to contact us for assistance. We are committed to providing support and resolving any payment-related issues promptly.
HSD190ME12-A00 LCD Screen Payment Guidelines:
1. Accepted Payment Methods:
YONGS accepts various payment methods to cater to your convenience. These include:
- PayPal
- Visa
- MasterCard
- American Express
For credit card payments, please note that they must be processed through PayPal and Alibaba.
2. Payment Deadline:
To facilitate timely processing of your order, we kindly request that all payments be received within 5 business days from the date of purchase. This ensures a swift handling of your order and minimizes any potential delays.
3. Sales Tax for Texas Residents:
If your purchase is shipping to Texas, please be aware that YONGS is required by law to collect sales tax at a rate of 8.25%. This tax will be applied to your order in accordance with state regulations.
We appreciate your cooperation in adhering to these payment guidelines. Should you have any questions or encounter any issues during the payment process, please do not hesitate to contact our customer support team. We are here to assist you and ensure a seamless transaction for your HSD190ME12-A00 LCD screen. Thank you for choosing YONGS for your electronic component needs.
HSD190ME12-A00 LCD Panel Shipping and Package :
HSD190ME12-A00 LCD Screen Return Policy :
At YONGS, we understand that circumstances may arise where a return is necessary. To ensure a smooth process, please familiarize yourself with our return policy guidelines:
1. Contact Us in Advance:
Prior to initiating a return, please contact us in advance to discuss the reason for the return. This allows us to provide you with the necessary guidance and ensure a prompt resolution.
2. Return Merchandise Authorization (RMA#):
For all refund or return requests, a Return Merchandise Authorization number (RMA#) is mandatory. Returns without a valid RMA number will not be accepted.
3. Dead on Arrival (DOA) or Shipping Damage:
If you receive a DOA or a shipping-damaged item, please contact us within 7 days of receipt. We will guide you through the return process to address the issue promptly.
4. Restocking Fee:
A 20% restocking fee will be applied to all non-defective returns, including items that are not used, not needed, or ordered incorrectly.
5. Return Shipping Charges:
Customers are responsible for covering all return shipping charges in all cases. This includes instances of defective returns, items not needed, and wrong part orders.
6. Non-Refundable Shipping Fee:
The original shipping fee is non-refundable for all return shipments, regardless of the reason for return.
7. Wrong Item Ordered:
If a customer orders the wrong item, they are responsible for paying the two-way shipping fee for the return and the shipment of the correct item.
8. Proper Packing Method:
When returning items, use our recommended packing methods such as bubble wrap, rope, or sponge foam to ensure the safe transport of the LCD screen. Avoid using envelopes or fragile boxes, as LCD screens are delicate.
HSD190ME12-A00 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of HSD190ME12-A00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of HSD190ME12-A00 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of HSD190ME12-A00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders of HSD190ME12-A00 ?
A: Of course!sample order is welcome !
