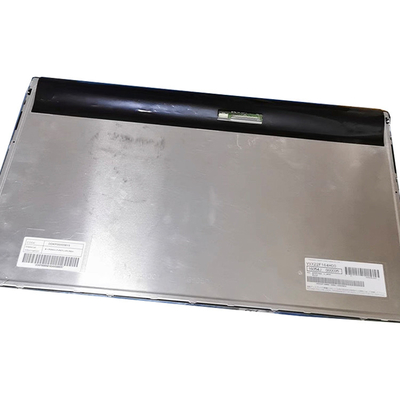

VVX22F164H00 Lcd Screen Panel 21.5" For Medical Application
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Panasonic |
| Model Number: | VVX22F164H00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | VVX22F164H00 | Diagonal Size: | 21.5" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 102PPI | Active Area: | 476.064(W)×267.786(H) Mm |
| Bezel Opening: | 479.8(W)×271.3(H) Mm | Outline(mm): | 495.6 × 292.2 × 12.5 (H×V×D) |
| Response: | 10/8 (Typ.)(Tr/Td) Ms | Mass: | 1.45Kgs (Typ.) |
| Used For: | Medical Imaging | Signal Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| High Light: | VVX22F164H00 Lcd Screen Panel,Lcd Screen Panel For Medical,21.5" Medical LCD Panel |
||
Product Description
LQ065T9DZ03 lcd Screen panel for medical application
VVX22F164H00 LCD Screen Product details :
| Panasonic LCD Screen VVX22F164H00 | |
|---|---|
| manufacturer | Panasonic |
| Model P/N | VVX22F164H00 |
| Diagonal Size | 21.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 476.064(W)×267.786(H) mm |
| Bezel Opening | 479.8(W)×271.3(H) mm |
| Outline(mm) | 495.6 × 292.2 × 12.5 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 10/8 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 99% sRGB |
| Backlight | 15S4P WLED , 30K hours , No Driver |
| Mass | 1.45Kgs (Typ.) |
| Used for | Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| VVX22F164H00 lcd Screen panel for medical application | |

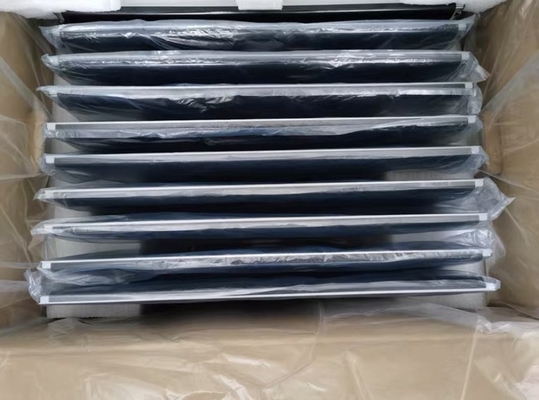

VVX22F164H00 LCD Screen Shipping and Package :
VVX22F164H00 LCD Screen Delivery Details:
Undeliverable Address:
We kindly request that you provide an accurate and deliverable address at the time of purchase. Please be aware that we are not responsible for items that cannot be delivered due to an incorrect or undeliverable address.
Shipping Fee for Returned Items:
In the event that an item is returned due to an incorrect address, we reserve the right to charge the shipping fee again for re-sending the item. To avoid any inconvenience, double-check your shipping address to ensure accuracy during the checkout process.
Shipping Timeline:
Items are generally shipped within 10 business days after your payment has been cleared. Please note that this timeline excludes Saturdays and Sundays. We strive to process and dispatch orders promptly to ensure you receive your VVX22F164H00 LCD screen in a timely manner.
We appreciate your understanding and cooperation in adhering to these delivery details. If you have any concerns about the delivery process or if you need assistance with tracking your order, feel free to contact our customer support team through the provided channels. Your satisfaction is our priority, and we are committed to making your shopping experience with us enjoyable and worry-free.
VVX22F164H00 LCD Screen Warranty:
We stand behind the quality of our products, and we want to ensure that you have a hassle-free experience with your VVX22F164H00 LCD screen. Please review our warranty policy below:
Replacement/Exchange:
You are eligible to exchange or replace the item within 30 days from the day you receive it.
Shipping Cost:
In the case of a return or exchange, the buyer is responsible for covering the shipping cost.
Condition of the Item:
To facilitate a smooth exchange or replacement process, the item that the buyer wishes to exchange or replace must be in the same condition as when it was dispatched.
We take pride in delivering high-quality products, and our warranty policy reflects our commitment to customer satisfaction. If you have any concerns or issues with your VVX22F164H00 LCD screen, please follow the steps outlined in our warranty policy.
For assistance with warranty claims or any related inquiries, please don't hesitate to reach out to our customer support team through the contact channels provided earlier. We value your business and are dedicated to resolving any issues to your satisfaction.
VVX22F164H00 LCD Screen FAQ :
Q: Do you accept sample orders of VVX22F164H00 ?
A: Of course!sample order is welcome !
Q: Can You declare my order of VVX22F164H00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of VVX22F164H00 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of VVX22F164H00 ?
A: we will give you tracking number then you can trace your order from website.
VVX22F164H00 LCD Screen Contact Us:
Thank you for choosing our VVX22F164H00 LCD screen. We are committed to providing you with excellent customer service. If you encounter any issues or have questions, please feel free to reach out to us through the following channels:
WhatsApp Message:
If you have any problems or inquiries, don't hesitate to contact us via WhatsApp message. Our dedicated customer support team is ready to assist you promptly. You can expect a response within 1 business day (excluding public holidays).
Work Hours:
Our customer support is available during the standard work hours from Monday to Friday. Rest assured that your concerns will be addressed within this timeframe.
Email Communication:
In the event that you do not receive a response within 1-2 business days, we recommend checking your email or My Messages.
Sometimes, aggressive spam filters may divert our emails. To ensure seamless communication, please add us to your contacts and reach out to us again via email. We are here to help and want to make sure you receive the support you need.
