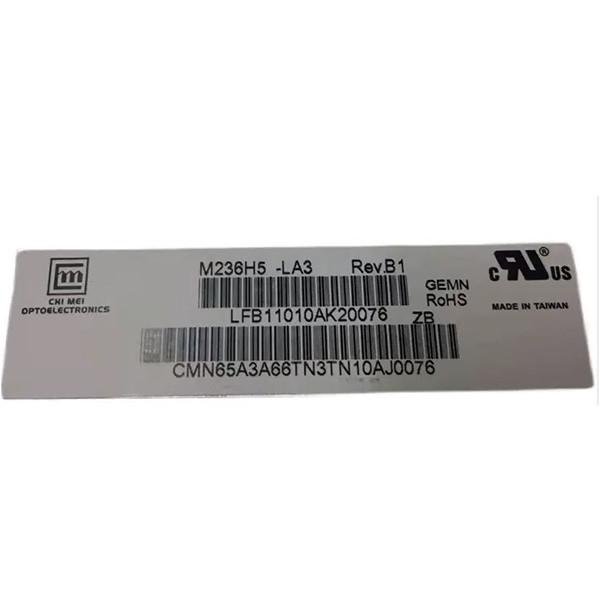

M236H5-LA3 LCD Screen Display Panel Transmissive 23.6 Inch 1920*1080
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | M236H5-LA3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M236H5-LA3 | Diagonal Size: | 23.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 93PPI | Active Area: | 521.28(W)×293.22(H) Mm |
| Bezel Opening: | 525.22(W)×297.22(H) Mm | Outline Dim.: | 544.8(H)×320.5(V) ×13.7(D) Mm |
| Operating Mode: | TN, Normally White, Transmissive | Weight: | 2.45/2.50Kgs (Typ./Max.) |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (2 Ch, 8-bit) , 51 Pins Connector |
| High Light: | M236H5-LA3 LCD Screen Display,1920*1080 LCD Display Panel,23.6 inch LCD Display Panel |
||
Product Description
M236H5-LA3 23.6 inch 1920*1080 LCD Screen Display Panel
M236H5-LA3 LCD Panel Product details :
| Chimei Innolux LCD SCREEN M236H5-LA3 | |
|---|---|
| manufacturer | Chimei Innolux |
| Model Name | M236H5-LA3 |
| screen size | 23.6 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 120(RGB)×1080 [FHD] 93PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 521.28(H)×293.22(V) mm |
| physical dimension | 544.8(H)×320.5(V) ×13.7(D) mm |
| Visual size | 525.22(H)×297.22(V) mm |
| surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (TM) |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 85/85/80/80 (Typ.)(CR≥10) |
| Responding time | 0.8/2.6 (Typ.))(Tr/Td) |
| Number of color | 16.7M 72% NTSC |
| Backlight type | WLED [12S8P] , 30K hours , W/O Driver |
| Weight | 2.45/2.50Kgs (Typ./Max.) |
| Apply to | Desktop Monitor |
| Refresh rate | 120Hz (60Hz Input) |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| M236H5-LA3 23.6 inch 1920*1080 LCD Screen Display Panel | |
M236H5-LA3 LCD Panel Shipping and Package :
M236H5-LA3 LCD Screen - Shipping Method Information:
1. Shipping Carrier Flexibility:
Depending on your preference or logistical considerations, we offer flexibility in shipping carriers. For example, if you choose FedEx, we may opt to use a similarly reliable express service such as DHL, UPS, or TNT.
2. Equivalent Express Service:
To ensure the same level of service quality, we strive to select an express shipping method that is equivalent to the carrier chosen by the buyer. This approach guarantees that you receive the same standards of efficiency and reliability.
3. Specified Logistics Requests:
If you have specific preferences or requirements for the logistics provider, please inform us in advance. We understand that certain situations may necessitate the use of a particular shipping company, and we are committed to accommodating your needs.
4. Communication is Key:
Open communication is essential in ensuring a smooth shipping process. If you have a preference for a particular shipping method or carrier, kindly inform us at the time of purchase or as early as possible. This allows us to make the necessary arrangements based on your specifications.
M236H5-LA3 LCD Screen Reminder :
To our valued customers in Russia and Brazil, please take note of the following important reminder regarding shipping methods:
1. Shipping Restriction for Russia and Brazil:
For customers in Russia and Brazil, we can only send shipments through EMS (Express Mail Service). This is a requirement or restriction specific to these countries.
2. EMS Shipping Duration:
EMS shipping typically takes more days to arrive compared to standard shipping methods. We appreciate your understanding and patience during this extended delivery timeframe.
3. Importance of Patience:
Given the longer duration associated with EMS shipping to Russia and Brazil, your patience is sincerely appreciated. We understand that timely delivery is crucial, and we are committed to keeping you informed about the progress of your shipment.
4. Customer Attention:
It's important for customers in Russia and Brazil to pay special attention to this reminder. By adhering to the specified shipping method, we can ensure a smooth and compliant shipping process.
M236H5-LA3 LCD Screen Return Policy:
1. One-Month Warranty:
All items come with a one-month warranty. This warranty covers the option for either a refund or exchange.
2. Refund or Reshipment for Non-Received Items:
For items that are not received within the estimated shipping time, we offer a refund or free reshipment to ensure customer satisfaction.
3. 7-Day Return for Non-Quality Problem:
If you are not satisfied with an item (non-quality problem) within 7 days of receipt, you may exchange or request a refund under the condition that the item is unused, in its original, unmounted condition, and suitable for resale. The customer is responsible for all return charges.
4. Refund Process for Non-Quality Returns:
For returns due to customer preference, we will refund the customer the item's price (excluding shipping costs to and from) upon receiving the returned item.
5. Defective or Non-Functioning Items:
If any item is defective upon receipt or does not work, please contact us for the return address. Returns are accepted within 30 days after the buyer receives the item. The returned item must be in its original condition. The buyer is responsible for return shipping costs.
6. Replacement Process for Defective Items:
Upon receiving the return, we will promptly make a replacement for the defective item.
M236H5-LA3 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of M236H5-LA3 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of M236H5-LA3 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: Can you give me a discount if I need a large quantity of M236H5-LA3 ?
A: Of course!If you make a large order, we will give you a discount.
