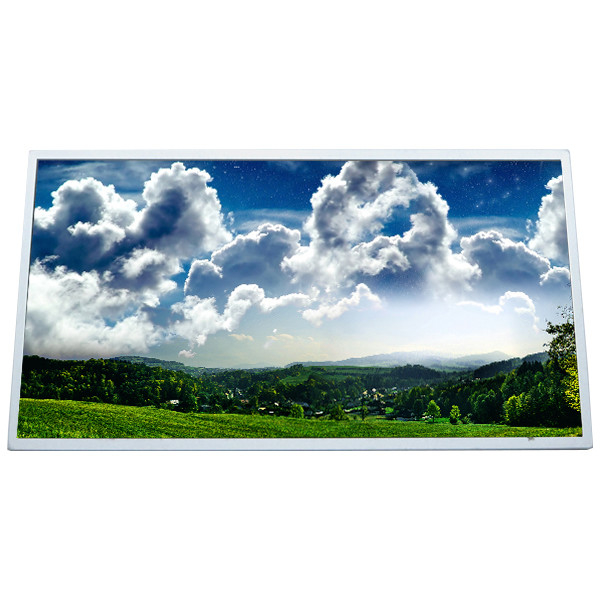

M236H3-LA2 LCD Screen 23.6 Inch LCD Display 1920 ×1080 Resolution
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | M236H3-LA2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M236H3-LA2 | Diagonal Size: | 23.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 93PPI | Active Area: | 521.28(W)×293.22(H) Mm |
| Bezel Opening: | 525.22(W)×297.22(H) Mm | Outline Dim.: | 544.8(H)×320.5(V) ×11.9(D) Mm |
| Treatment: | Antiglare (Haze 25%), Hard Coating (3H) | Weight: | 2.45/2.50Kgs (Typ./Max.) |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| High Light: | M236H3-LA2 LCD Screen,23.6 inch LCD Display,1920x1080 Resolution LCD Display |
||
Product Description
M236H3-LA2 LCD Screen 23.6 inch LCD Display
M236H3-LA2 LCD Panel Product details :
| CMO LCD SCREEN M236H3-LA2 | |
|---|---|
| Brand | CMO |
| Model Name | M236H3-LA2 |
| Diagonal Size | 23.6 inch |
| Type | a-Si TFT-LCD , LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 93PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 521.28(H)×293.22(V) mm |
| Outline Dim. | 544.8(H)×320.5(V) mm |
| Bezel Area | 525.22(H)×297.22(V) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Operating Mode | TN, Normally White, Transmissive |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Support Color | 16.7M 72% NTSC |
| Light Source | WLED [12S8P] , 30K hours , W/O Driver |
| Weight | 2.45/2.50Kgs (Typ./Max.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | No touch |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| M236H3-LA2 LCD Screen 23.6 inch LCD Display | |
M236H3-LA2 LCD Screen - Payment Terms :
1. Preferred Payment Method:
We prefer PayPal as our primary payment method. PayPal offers a secure and widely accepted online payment platform for a seamless transaction experience.
2. Accepted Payment Methods:
In addition to PayPal, we also accept the following payment methods:
Wire Transfer
Escrow
3. PayPal:
For quick and secure online transactions, we recommend using PayPal. You can utilize your PayPal account or credit/debit card associated with PayPal for a hassle-free payment process.
4. Wire Transfer:
If you prefer traditional bank transactions, we accept payments through wire transfer. Contact us for the relevant details needed to initiate the transfer.
5. Escrow:
We also accept payments through Escrow, providing an additional layer of security for both buyers and sellers. This trusted third-party service helps ensure that funds are securely held until the agreed-upon conditions are met.
6. Secure and Reliable Transactions:
Rest assured that all our payment methods are secure and reliable. We prioritize the security of your transactions to provide you with peace of mind.
M236H3-LA2 LCD Panel Shipping and Package :
M236H3-LA2 LCD Screen - Delivery Information:
1. Careful Packing by Our Logistic Team:
Our dedicated logistic team takes great care in packing your order to ensure the safe transit of the M236H3-LA2 LCD screen. Each item is handled with precision and packed securely to prevent damage during transportation.
2. Assurance of Safe Arrival:
We understand the importance of your order arriving in pristine condition. Our packing procedures are designed to provide assurance that your item will be delivered to you perfectly.
3. Handover to Courier:
Once your order is securely packed, it will be handed over to our trusted courier partners. We collaborate with reputable courier services to guarantee a reliable and timely delivery of your M236H3-LA2 LCD screen.
4. Dispatched Timeframe:
The total dispatched time for your order is estimated to be around 1-2 days. This includes the time for order processing, packing, and handing over to the courier.
5. Timely Delivery:
We strive to ensure that your M236H3-LA2 LCD screen reaches you within the shortest possible timeframe. Our logistics team works efficiently to expedite the delivery process once your order is confirmed.
6. Tracking Information:
Once your order is dispatched, you will receive tracking information that allows you to monitor the progress of your delivery. This provides transparency and keeps you informed about the status of your shipment.
M236H3-LA2 LCD Screen Warranty and Return Policy:
1. 90-Day Warranty:
We stand by the quality of our products. For the M236H3-LA2 LCD screen, we offer a 90-day warranty from the date of purchase. This warranty ensures your confidence in the performance and reliability of the product.
2. Wrong Item, Transit Damage, Fitment Issues, etc.:
If you encounter any issues such as receiving the wrong item, transit damage, fitment problems, or any other concerns, we are here to assist you.
Please contact us immediately, and we will handle your situation with honesty and responsibility.
3. Honest and Responsible Resolution:
Our commitment is to provide an honest and responsible resolution to any issues you may face. Whether it's arranging a return, processing a refund, or sending a replacement, we will work to find the best solution for you.
4. Contact Us Promptly:
If you realize that you've purchased the wrong item or if any issues arise, please contact us promptly. Timely communication allows us to address your concerns efficiently.
5. Return, Refund, or Resend:
Depending on the nature of the issue, we are prepared to offer solutions such as arranging a return, processing a refund, or sending a new M236H3-LA2 LCD screen that meets your expectations.
M236H3-LA2 LCD Panel FAQ :
Q: Do you accept sample orders of M236H3-LA2 ?
A: Of course!sample order is welcome !
Q: Can You declare my order of M236H3-LA2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods M236H3-LA2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of M236H3-LA2 ?
A: We accept T/T , Paypal , western union .
