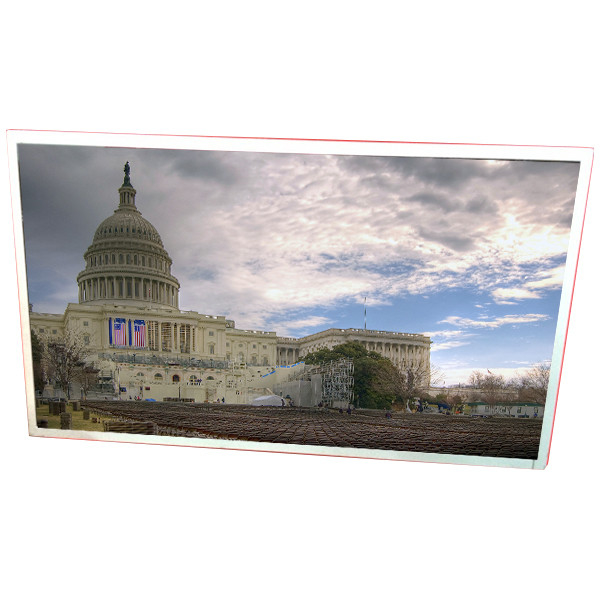

M236H3-L02 Lcd Screen Panel 23.6" For CMO 30 pins Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | M236H3-L02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M236H3-L02 | Diagonal Size: | 23.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 93PPI | Active Area: | 521.28(W)×293.22(H) Mm |
| Bezel Opening: | 525.22(W)×297.22(H) Mm | Outline Dim.: | 544.8(W)×320.5(H)×11.9(D) Mm |
| Treatment: | Antiglare (Haze 25%), Hard Coating (3H) | Weight: | 2.45/2.50Kgs (Typ./Max.) |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| Highlight: | lcd Screen panel for CMO,M236H3-L02 lcd Screen panel,23.6" lcd Screen panel |
||
Product Description
M236H3-L02 lcd Screen panel for CMO
M236H3-L02 LCD Panel Product details :
| CMO LCD SCREEN M236H3-L02 | |
|---|---|
| manufacturer | CMO |
| Model Name | M236H3-L02 |
| screen size | 23.6 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 93PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 521.28(W)×293.22(H) mm |
| physical dimension | 544.8(W)×320.5(H) mm |
| Visual size | 525.22(W)×297.22(H) mm |
| surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (TM) |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 85/85/80/80 (Typ.)(CR≥10) |
| Responding time | 1.5/3.5 (Typ.)(Tr/Td) |
| Number of color | 16.7M 68% NTSC |
| Backlight type | 12S7P×2CN WLED , 25K hours , Without Driver |
| Weight | 2.45/2.50Kgs (Typ./Max.) |
| Apply to | Desktop Monitor |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| M236H3-L02 lcd Screen panel for CMO | |
M236H3-L02 LCD Screen Payment Options:
1. Accepted Payment Methods:
We accept a variety of payment methods to cater to your preferences:
PayPal
Western Union remittance
TT (Telegraphic Transfer)
Bank transfer
ALI Sinosure payment, etc.
2. Secure and Reliable Transactions:
Rest assured that all our payment methods are secure and reliable. Whether you choose online payment platforms like PayPal or traditional methods such as bank transfer, we prioritize the security of your transactions.
3. PayPal:
For quick and secure online payments, PayPal is a widely accepted option. You can use your PayPal account or credit/debit card associated with PayPal for a seamless transaction.
4. Western Union and TT/Bank Transfer:
If you prefer more traditional methods, we accept payments via Western Union and TT (Telegraphic Transfer)/bank transfer. Please contact us for relevant details to facilitate the transfer.
5. ALI Sinosure Payment:
For transactions through ALI Sinosure payment, we can provide the necessary information to ensure a smooth and secure payment process.
6. Payment Issues or Concerns:
If you encounter any problems with the payment process or have specific inquiries, please do not hesitate to contact us. We are here to assist you and address any concerns promptly.
7. Customized Payment Solutions:
We understand that different customers may have unique payment preferences. If you require a customized payment solution or have specific requests, feel free to discuss this with us, and we will do our best to accommodate your needs.
M236H3-L02 LCD Screen - Friendly Reminder for Installation:
1. Installation Guide Not Included:
Please be aware that an installation guide is not included with the accessory. We highly recommend that you do not proceed with the installation unless you are confident in your ability to do so.
2. Installation Responsibility:
We want to emphasize that we are not responsible for any damage caused during the installation of this accessory. It is crucial to fully understand the installation process before ordering to avoid any potential issues.
3. Special Skills and Techniques:
Proper installation of this accessory may require special skills and techniques. We strongly recommend seeking the assistance of a qualified technician to ensure a successful and damage-free installation.
4. Qualified Technician Assistance:
For optimal results, we advise customers to process repairs or installations with the assistance of a qualified technician. Their expertise and experience can contribute to a seamless installation process.
5. Understand Disassembly Procedure:
Before making a purchase, please ensure that you have a clear understanding of the disassembly procedure specific to your device. This knowledge is essential for a trouble-free installation.
6. Product Testing Before Installation:
It is strongly recommended that customers test the product before proceeding with the installation. This precautionary step helps identify any potential issues and ensures that the product is in proper working condition.
M236H3-L02 LCD Panel Shipping and Package :
M236H3-L02 LCD Screen Warranty Information:
1. 12 Months Warranty:
We provide a comprehensive 12 months warranty from the shipping date for the M236H3-L02 LCD screen. This warranty covers any quality problems that may arise during this period.
2. Warranty Coverage:
Regardless of the nature of the quality issue, our warranty is designed to provide you with peace of mind. If you encounter any problems with the LCD screen within the 12-month warranty period, we are here to address and resolve them.
3. Keeping in Touch:
To ensure a smooth warranty process, please keep in touch with us. If you experience any problems or issues with the M236H3-L02 LCD screen, we encourage you to contact us immediately.
4. Timely Problem Resolution:
In the event of any problems, our dedicated support team is ready to assist you. Please reach out to us promptly, and we will work diligently to resolve the issue as soon as possible.
M236H3-L02 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of M236H3-L02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of M236H3-L02 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of M236H3-L02 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can You declare my order of M236H3-L02 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
