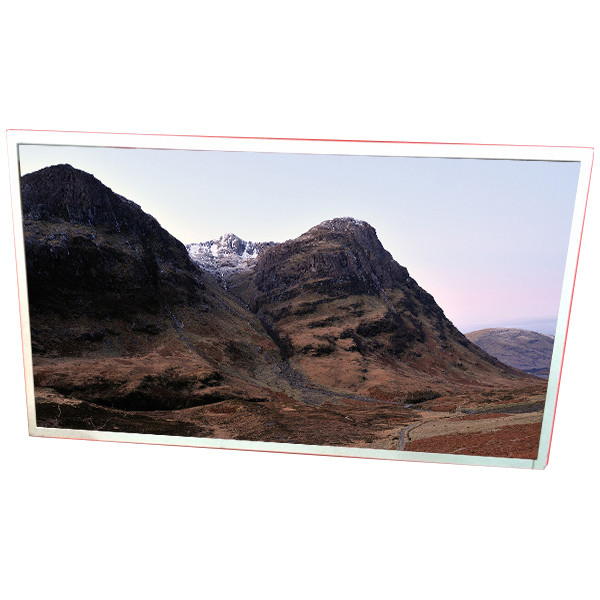

M236H3-L01 LCD Screen Display Panel For Replacement Repair
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | M236H3-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M236H3-L01 | Diagonal Size: | 23.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 93PPI | Active Area: | 521.28(W)×293.22(H) Mm |
| Bezel Opening: | 525.22(W)×297.22(H) Mm | Outline Dim.: | 544.8(W)×320.5(H)×11.9(D) Mm |
| Treatment: | Antiglare (Haze 25%), Hard Coating (3H) | Weight: | 2.45/2.50Kgs (Typ./Max.) |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| High Light: | M236H3-L01 LCD Screen Display,LCD Screen Display For Replacement Repair,30pins Connector LCD Display Panel |
||
Product Description
M236H3-L01 LCD Screen Display Panel For Replacement Repair
M236H3-L01 LCD Panel Product details :
| CMO LCD SCREEN M236H3-L01 | |
|---|---|
| manufacturer | CMO |
| Model Name | M236H3-L01 |
| screen size | 23.6 inch |
| Screen type | LCM , a-Si TFT-LCD |
| Resolution | 1920(RGB)×1080 (FHD) 93PPI |
| Pixel configuration | RGB Vertical Stripe |
| Active Area(mm) | 521.28 × 293.22 (H×V) |
| Outline(mm) | 544.8 × 320.5 (H×V×D) |
| Bezel Area(mm) | 525.22 × 297.22 (H×V) |
| surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast | 1000 : 1 (Typ.) (TM) |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 85/85/80/80 (Typ.)(CR≥10) |
| Responding time | 1.5/3.5 (Typ.)(Tr/Td) ms |
| Number of color | 16.7M 68% NTSC |
| Backlight type | 12S7P×2CN WLED , 25K hours , No Driver |
| Weight | 2.45/2.50Kgs (Typ./Max.) |
| Apply to | Desktop Monitor |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| M236H3-L01 LCD Screen Display Panel For Replacement Repair | |
