HSD150MX17-A02 Tft Lcd Panel Screen 15.0 Inch 1024*768 Lcd Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD150MX17-A02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD150MX17-A02 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 85PPI | Active Area: | 304.128(W)×228.096(H) Mm |
| Bezel Opening: | 307.4(W)×231.3(H) Mm | Outline Dim.: | 326.5(W)×253.5(H)×10.9(D) Mm |
| Treatment: | Antiglare, Hard Coating (3H) | Weight: | 925/955g (Typ./Max.) |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (1 Ch, 8-bit) , 20 Pins Connector |
| Highlight: | LVDS Tft Lcd Panel Screen,1024*768 Lcd Display,Lcd Panel Screen 15.0 Inch |
||
Product Description

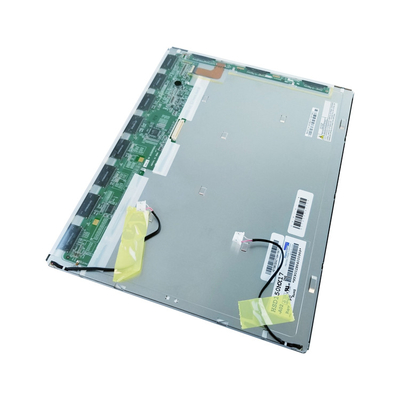

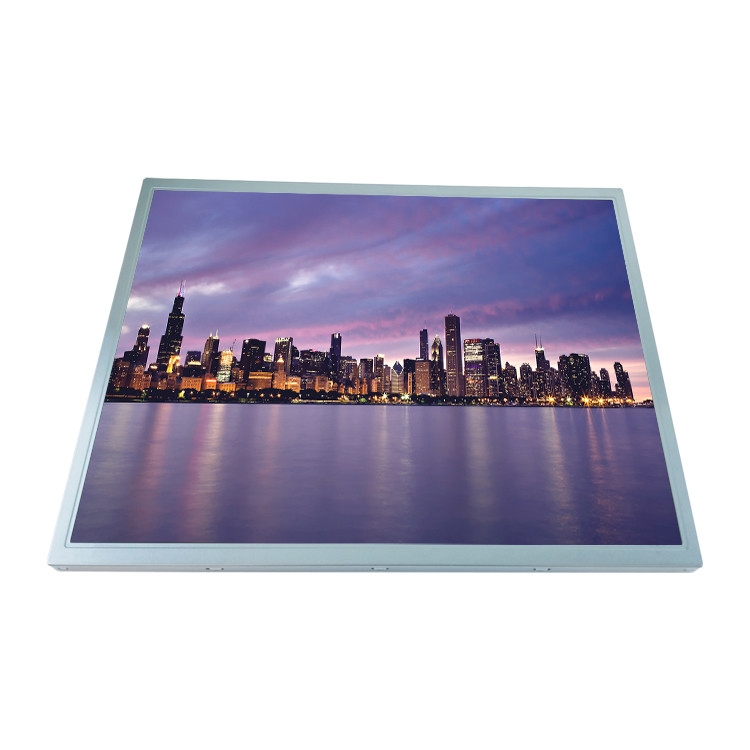

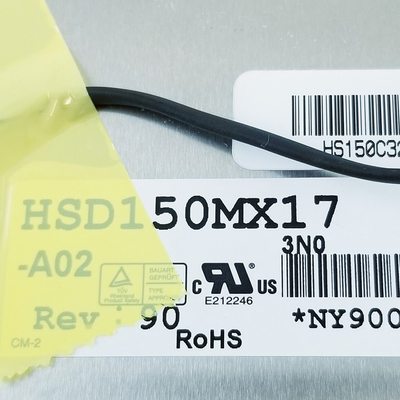

HSD150MX17-A02 15.0 inch 1024*768 lcd display tft lcd panel inch lcd screen
HSD150MX17-A02 LCD Panel Product details :
| HannStar LCD Screen HSD150MX17-A01 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD150MX17-A01 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm |
| Outline Dim. | 326.5(W)×253.5(H)×10.9(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 65/65/45/55 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.2M 68% NTSC |
| Light Source | CCFL [2 pcs] , 30K hours , W/O Driver |
| Weight | 925/955g (Typ./Max.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | perating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 15.0 inch 1024*768 HSD150MX17-A01 LCD Monitors Screen Display | |
HSD150MX17-A02 LCD Screen Guarantee:
Rigorous Testing Process:
Every LCD screen undergoes a meticulous testing process before it is dispatched to our valued customers. Our team of skilled technicians ensures that each unit meets the specified performance criteria, guaranteeing optimal functionality and visual excellence.
Quality Assurance:
We understand the importance of a flawless display, and therefore, we employ stringent quality assurance measures. The HSD150MX17-A02 LCD screen is carefully inspected to identify and rectify any potential issues, ensuring that our customers receive a product of uncompromised quality.
Safe and Secure Packaging:
To safeguard your investment during transit, we employ a state-of-the-art packaging strategy. The use of a multifunctional bubble pad is a key element in this process. This innovative packaging material acts as a protective barrier, absorbing shocks and preventing any potential damage to the LCD screen during transportation.
Peace of Mind for Our Customers:
Our commitment to delivering tested and securely packaged LCD screens aims to provide our customers with peace of mind. We recognize the importance of a reliable display in various applications, and our guarantee is a testament to our dedication to ensuring that you receive a product that not only meets but exceeds your expectations.
Responsive Customer Support:
In the rare event that you encounter any issues with your HSD150MX17-A02 LCD screen, our responsive customer support team is ready to assist you. We take pride in our after-sales service, aiming to resolve any concerns promptly and efficiently.
HSD150MX17-A02 LCD Panel Shipping and Package :
HSD150MX17-A02 LCD Screen Shipment Information:
Order Processing and Shipping Timeframe:
Typically, we strive to prepare and dispatch your goods within 1 to 3 working days after the placement of your order. This timeframe is indicative of our dedication to prompt order fulfillment, allowing you to receive your product in a timely manner.
Condition Check Upon Receipt:
Upon receiving your ordered item, we kindly request that you perform a thorough check to ensure that the HSD150MX17-A02 LCD screen is in good condition. Your satisfaction is of utmost importance to us, and we want to address any concerns or issues promptly.
Quality Assurance:
Before shipping, each product undergoes a comprehensive quality assurance process to verify that it meets our high standards. Despite these precautions, unforeseen circumstances during transit may occasionally occur. If you notice any damage or issues with the LCD screen upon receipt, please reach out to us immediately.
Contacting Customer Support:
In the event that you find any discrepancies or concerns with the condition of the received item, our customer support team is ready to assist you. Please contact us as soon as possible with relevant details, and we will guide you through the necessary steps to address the issue.
HSD150MX17-A02 LCD screen Return & Warranty:
At HSD150MX17-A02, we take pride in offering high-quality LCD screens, and we strive to ensure that each product meets our rigorous standards. However, we understand that sometimes issues may arise, and we are dedicated to providing excellent customer service to address any concerns.
If you receive a defective or non-functioning product, we kindly request that you contact us right away. Our team will promptly assist you in resolving the issue by offering either a money-back guarantee within 30 days of purchase or a replacement product.
To initiate the return process for a defective item, we ask that you provide us with proof of the product's malfunction. Once the issue is confirmed, we will request that you return the item to us. Upon receiving the returned product, we will promptly resend a replacement to ensure your satisfaction.
When returning the item, it is important to ensure that both the product and all accompanying accessories are in their original and unused condition. We value the integrity of our products, and each item is equipped with a warranty label. We kindly ask that you do not tear or remove this label when returning the product.
At HSD150MX17-A02, we prioritize customer satisfaction, and we are committed to resolving any issues with our products. Should you encounter any problems with your purchase, please do not hesitate to reach out to us. Our dedicated team is prepared to assist you and provide the necessary support to ensure a smooth and satisfactory resolution.
HSD150MX17-A02 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of HSD150MX17-A02 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of HSD150MX17-A02 ?
A: Of course!sample order is welcome !
Q: How to make payment of HSD150MX17-A02 ?
A: We accept T/T , Paypal , western union .
