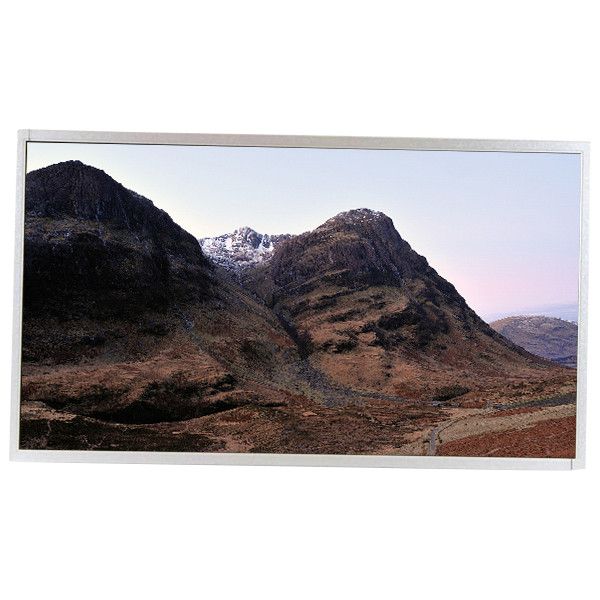

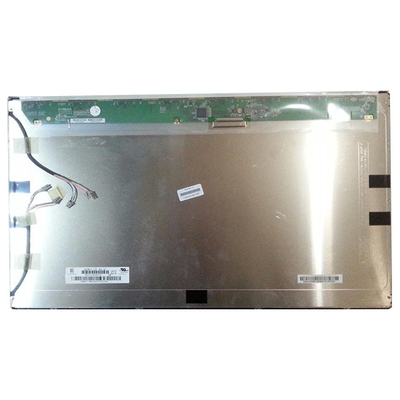

30 Pins Desktop Monitor LCD Screen M236H1-L01 LCD Display Panel 23.6 Inch
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | M236H1-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M236H1-L01 | Diagonal Size: | 23.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 93PPI | Active Area: | 521.28(W)×293.22(H) Mm |
| Bezel Opening: | 525.22(W)×297.22(H) Mm | Outline Size: | 544.8(W)×320.5(H)×19.2(D) Mm |
| Response: | 1.5/3.5 (Typ.)(Tr/Td) | Weight: | 2.85/2.90Kgs (Typ./Max.) |
| Designed For: | Desktop Monitor | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| High Light: | M236H1-L01 LCD Display Panel,30pins Desktop Monitor LCD Screen,23.6" LCD Display Panel |
||
Product Description
23.6 inch 30 pins Desktop Monitor Screen M236H1-L01 LCD Display Panel
M236H1-L01 LCD Panel Product details :
| CMO LCD SCREEN M236H1-L01 | |
|---|---|
| manufacturer | CMO |
| Model Name | M236H1-L01 |
| screen size | 23.6 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 (FHD) 93PPI |
| Pixel configuration | RGB Vertical Stripe |
| Active Area(mm) | 521.28 × 293.22 (H×V) |
| Outline(mm) | 544.8 × 320.5 × 19.2 (H×V×D) |
| Bezel Area(mm) | 525.22 × 297.22 (H×V) |
| surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast | 1000 : 1 (Typ.) (TM) |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 85/85/80/80 (Typ.)(CR≥10) |
| Responding time | 1.5/3.5 (Typ.)(Tr/Td) ms |
| Number of color | 16.7M 72% NTSC |
| Backlight type | 4 pcs CCFL , 50K hours , No Driver |
| Weight | 2.85/2.90Kgs (Typ./Max.) |
| Apply to | Desktop Monitor |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit) , Connector 30 pins |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 23.6 inch 30 pins Desktop Monitor Screen M236H1-L01 LCD Display Panel | |
M236H1-L01 LCD Display Payment Information:
Accepted Payment Methods:
We accept various payment methods, including:
PayPal
Western Union Remittance
TT (Telegraphic Transfer)
Alibaba Credit Insurance Payment, etc.
Buyer Obligation for Customs Duties:
The buyer is under obligation if the item is subject to customs duties in your country. Please be aware of your country's customs policies and regulations. In the event of customs duties, the buyer is responsible for complying with these obligations.
Not Responsible for Taxes or Customs Fees:
We want to clarify that we are not responsible for any taxes or customs fees imposed by your country. Our prices do not include customs duty or tax. It is the buyer's responsibility to verify and handle any applicable customs duties or fees.
Verification of Customs Duty:
Prior to finalizing your purchase, we recommend verifying your country's customs duty regulations. This ensures that you are informed about any potential additional costs associated with importing the M236H1-L01 LCD Display.
M236H1-L01 LCD Panel Shipping and Package :
M236H1-L01 LCD Display Logistics Information:
Worldwide Shipping:
We offer worldwide shipping to ensure that customers globally can access the M236H1-L01 LCD Display. Regardless of your location, our logistics network is designed to reach you.
Quick Order Processing:
Orders are processed promptly, and we commit to delivering your M236H1-L01 LCD Display within 3 working days after confirming your payment. This quick turnaround time is intended to minimize delays and ensure timely delivery.
Express Shipping Partners:
To expedite the shipping process, we have partnered with major express carriers, including DHL, FedEx, UPS, and EMS. These reputable partners are known for their global reach and efficient delivery services.
Additional Taxes or Customs Duty:
It's important to note that we are not responsible for any additional taxes or customs duty that may be incurred with your purchase. These charges, if applicable, are the responsibility of the buyer. We recommend understanding your country's customs policies to anticipate any potential additional costs.
Our commitment is to provide you with a positive and efficient shipping experience for the M236H1-L01 LCD Display. If you have specific shipping preferences or inquiries, please feel free to reach out to us.
M236H1-L01 LCD Display Guarantee:
Warranty Duration:
All LCD panels come with a 60-day warranty from the date of receipt. This warranty period ensures that you have sufficient time to identify and address any potential issues with the M236H1-L01 LCD Display.
Prompt Notification of Issues:
If you discover that the LCD is non-operational or has any issues upon receipt, please inform us within 7 days. This timeframe allows for a prompt response and resolution to ensure your satisfaction.
Seller Refusal After 7 Days:
Please note that we reserve the right to refuse any warranty requirement that is communicated to the seller after 7 days of receiving the product. This policy is in place to encourage timely reporting of issues for efficient resolution.
Problem Resolution Assistance:
If you encounter any problems with the M236H1-L01 LCD Display within the warranty period, we are committed to assisting you in solving the problem. Effective communication is key to understanding and addressing the issue promptly.
RMA Process:
Return Merchandise Authorization (RMA) is acceptable if the problem persists after communication. The RMA process ensures a structured and organized approach to resolving issues with the LCD Display.
Exception for Wrong Model Ordering:
It's important to note that RMA is not acceptable if the issue arises due to ordering the wrong model. This exception is in place to emphasize the importance of accurate ordering to avoid compatibility issues.
M236H1-L01 LCD Panel FAQ :
Q: If I order M236H1-L01 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for M236H1-L01 ?
A: Of course!sample order is welcome !
Q: How long is the warranty of M236H1-L01 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of M236H1-L01 ?
A: Of course!If you make a large order, we will give you a discount.
