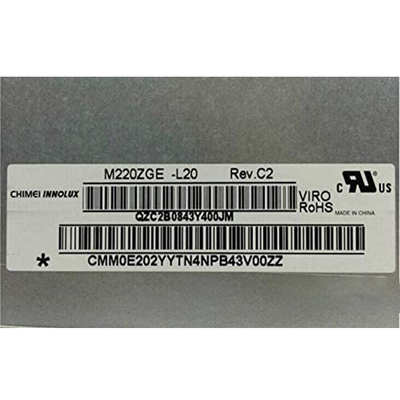

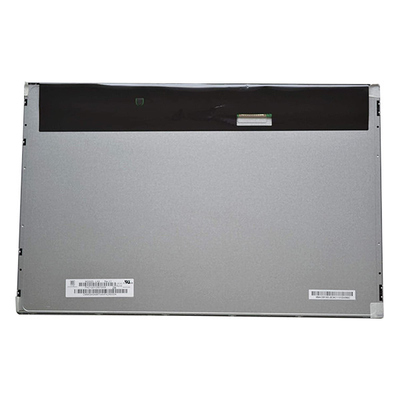

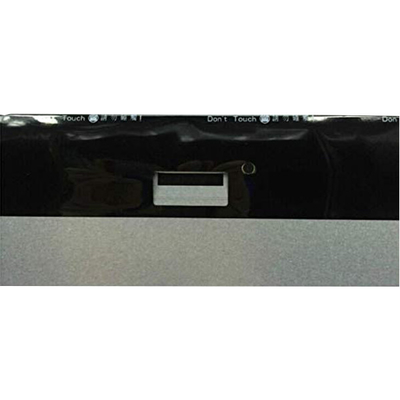

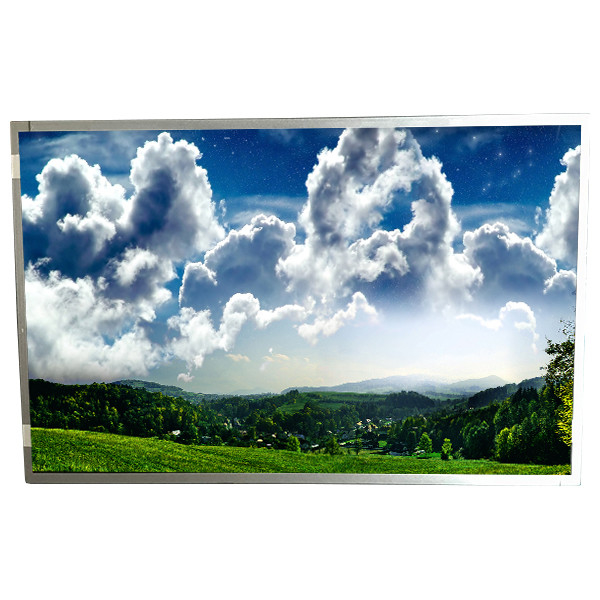

M220ZGE-L20 LCD Screen 1680*1050 LCD Display TFT Panel 22.0"
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | M220ZGE-L20 |
| Document: | M220ZGE-L20.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M220ZGE-L20 | Diagonal Size: | 22.0" |
|---|---|---|---|
| Resolution: | 1680(RGB)×1050, WSXGA+ 90PPI | Active Area: | 473.76(W)×296.1(H) Mm |
| Bezel Opening: | 477.7(W)×300.1(H) Mm | Outline Size: | 493.7(W)×320.1(H) ×11.5(D) Mm |
| Response: | 1.3/3.7 (Typ.)(Tr/Td) Ms | Panel Weight: | 2.10/2.25Kgs (Typ./Max.) |
| Application: | Desktop Monitor | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| Highlight: | LCD display TFT panel,M220ZGE-L20 LCD screen,680*1050 LCD display |
||
Product Description
M220ZGE-L20 LCD screen 1680*1050 LCD display TFT panel
M220ZGE-L20 LCD Panel Product details :
| Chimei Innolux LCD SCREEN M220ZGE-L20 | |
|---|---|
| manufacturer | Chimei Innolux |
| Model Name | M220ZGE-L20 |
| screen size | 22.0 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1680(RGB)×1050 [WSXGA+] 90PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 473.76(H)×296.1(V) mm |
| physical dimension | 493.7(H)×320.1(V) mm |
| Visual size | 477.7(H)×300.1(V) mm |
| surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (TM) |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 85/85/80/80 (Typ.)(CR≥10) |
| Responding time | 1.3/3.7 (Typ.)(Tr/Td) |
| Number of color | 16.7M 72% NTSC |
| Backlight type | WLED [12S4P] , 40K hours , W/O Driver |
| Weight | 2.10/2.25Kgs (Typ./Max.) |
| Apply to | Desktop Monitor |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| M220ZGE-L20 LCD screen 1680*1050 LCD display TFT panel | |
M220ZGE-L20 LCD Panel Shipping and Package :
M220ZGE-L20 LCD Screen Packaging Information :
Quality Testing:
Before packaging, all units of the M220ZGE-L20 LCD screen undergo thorough testing to ensure optimal performance. This quality assurance step is essential to identify and address any potential issues before the product is shipped.
Secure Packaging:
The LCD screens are packaged securely to prevent damage during transportation. Our packaging is designed to absorb shocks, resist external pressures, and protect the delicate components of the M220ZGE-L20 LCD screen.
Protective Layers:
To provide an extra layer of protection, the LCD screen is often encased in protective layers, such as foam or bubble wrap. These materials absorb impacts and vibrations, reducing the risk of damage during transit.
Robust Outer Packaging:
The outer packaging is a sturdy and durable carton that further shields the M220ZGE-L20 LCD screen from external forces. This robust carton is chosen to withstand the rigors of shipping and handling.
Labeling and Documentation:
Clear labeling is applied to the packaging, indicating fragile content and handling instructions. Any necessary documentation, including shipping labels and customs paperwork, is also securely attached.
Our commitment to careful packaging reflects our dedication to delivering products in excellent condition. If you have any specific requests or concerns regarding the packaging of your M220ZGE-L20 LCD screen, please feel free to communicate with us.
M220ZGE-L20 LCD Screen Shipping Information :
Ensuring a smooth and efficient shipping process is important to us. Here are the key details about shipping your M220ZGE-L20 LCD Screen:
Tracking Numbers:
All shipments come with tracking numbers. This allows you to monitor the progress of your M220ZGE-L20 LCD Screen from dispatch to delivery.
Fast Shipping Services:
We prioritize using the fastest shipping service within the budget of the freight you have paid. This ensures a timely delivery of your LCD screen.
Estimated Delivery Times:
For most Asian, European, and North American countries, you can expect delivery within 7-15 days. However, it's important to note that delivery times may vary based on your specific location and local customs procedures. For other countries, the delivery may take up to 30 days.
Express Shipping Options:
Express shipping services, including DHL, FedEx, TNT, UPS, and Aramex, are available for expedited delivery. These services offer quicker transit times and are ideal for those who require their M220ZGE-L20 LCD Screen urgently.
Customs Documentation for Express Shipping:
Express shipping services often require specific documents for customs clearance. Rest assured, we usually provide all the necessary documents to facilitate a smooth customs process.
M220ZGE-L20 LCD Screen Warranty Information :
12-Month Warranty Period:
We provide a comprehensive 12-month warranty from the shipping date of the M220ZGE-L20 LCD screen. This warranty covers any quality-related issues that may arise during this period. Our commitment is to ensure that you have a reliable and functional product for an extended duration.
Prompt Problem Resolution:
If you encounter any issues or problems with the M220ZGE-L20 LCD screen, we encourage you to keep in touch with us. Your satisfaction is our priority, and we are here to assist you promptly. Contact us immediately if you experience any challenges, and we will work diligently to resolve the problem as soon as possible.
Customer Support:
Our dedicated customer support team is ready to address your concerns and provide assistance throughout the warranty period. Whether it's troubleshooting or arranging for a replacement, we are committed to ensuring that you have a positive experience with our product.
Keeping in Touch:
To facilitate a seamless warranty process, please maintain communication with us. If you have any problems or questions, do not hesitate to contact us immediately. This proactive approach allows us to address your concerns promptly and efficiently.
M220ZGE-L20 LCD Panel FAQ :
Q: Do you accept sample orders of M220ZGE-L20 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods M220ZGE-L20 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of M220ZGE-L20 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of M220ZGE-L20 ?
A: Of course!If you make a large order, we will give you a discount.
