22.0 Inch TFT LCD Screen M220Z3-LA3 LCD Display For Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | M220Z3-LA3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M220Z3-LA3 | Diagonal Size: | 22.0" |
|---|---|---|---|
| Resolution: | 1680(RGB)×1050, WSXGA+ 90PPI | Active Area: | 473.76(W)×296.1(H) Mm |
| Bezel Opening: | 477.7(W)×300.1(H) Mm | Outline(mm): | 493.7×320.1×11.5 (H×V×D) |
| Response: | 1.3/3.7 (Typ.)(Tr/Td) Ms | Mass: | 2.20/2.29Kgs (Typ./Max.) |
| Used For: | Desktop Monitor | Signal Type: | LVDS (2 Ch, 8-bit) , Connector 30 Pins |
| High Light: | 22.0 inch TFT LCD Screen,M220Z3-LA3 LCD Display,TFT LCD Screen for Desktop Monitor |
||
Product Description

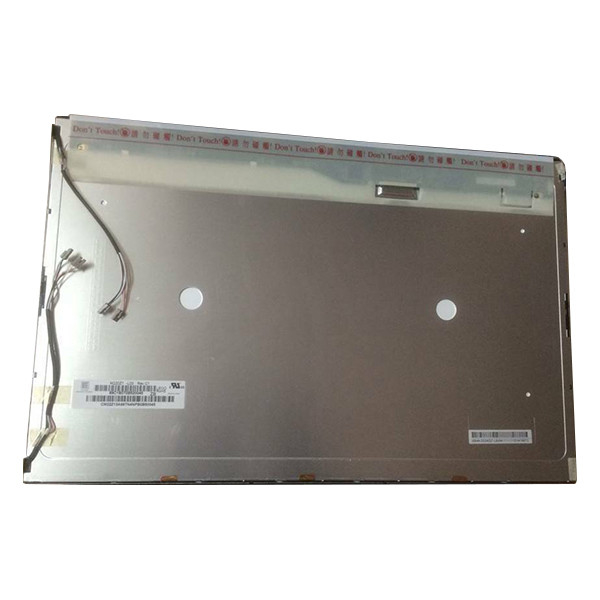

22.0 Inch TFT LCD Screen M220Z3-LA3 LCD Display For Desktop Monitor
M220Z3-LA3 LCD Panel Product details :
| Chimei Innolux LCD SCREEN M220Z3-LA3 | |
|---|---|
| manufacturer | Chimei Innolux |
| Model Name | M220Z3-LA3 |
| screen size | 22.0 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1680(RGB)×1050 [WSXGA+] 90PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 473.76(H)×296.1(V) mm |
| physical dimension | 493.7(H)×320.1(V) ×11.5(D) mm |
| Visual size | 477.7(H)×300.1(V) mm |
| surface treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 45/45/15/35 (Typ.)(CR≥10) |
| Responding time | 1.3/3.7 (Typ.)(Tr/Td) |
| Number of color | 16.7M 72% NTSC |
| Backlight type | WLED [14S8P] , 30K hours , W/O Driver |
| Weight | 2.20/2.29Kgs (Typ./Max.) |
| Apply to | Desktop Monitor |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 22.0 inch LCD display LCD screen module M220Z3-LA3 for Desktop Monitor | |
M220Z3-LA3 LCD Display Payment Information :
Accepted Payment Methods:
We offer a variety of payment methods to cater to your preferences. Accepted payment methods include:
PayPal
Western Union Remittance
TT (Telegraphic Transfer)
Bank Transfer
Alibaba Sinosure Payment
Please choose the method that is most convenient for you.
Alibaba Address Requirement:
We only accept your Alibaba Address for payment. It is crucial to ensure that your Alibaba Address is 100% accurate. This helps us process your order correctly and ensures the secure delivery of your M220Z3-LA3 LCD Display.
Payment Timeframe:
Payment must be received within 5 business days of auction closing. This timeframe ensures a timely processing of your order and helps in expediting the shipment of your LCD Display.
Special Requests:
If you have any special requests, such as specific colors or sizes, please leave a note in PayPal when making the payment. This allows us to take note of your preferences and fulfill your order according to your specifications.
M220Z3-LA3 LCD Panel Shipping and Package :
M220Z3-LA3 LCD Display Packing Information:
At our company, we prioritize the safety and integrity of your M220Z3-LA3 LCD Display during transportation. Here are the details of our packing process:
Outer Packing:
The outer packing is a robust and durable carton designed to provide maximum protection during transit. This carton is chosen for its strength and resilience, ensuring that your M220Z3-LA3 LCD Display is shielded from external impact.
Inner Packing:
The inner packing consists of foam. This material is selected for its cushioning properties, providing an additional layer of protection against shocks and vibrations that may occur during transportation. The foam is strategically placed to secure the LCD display and prevent any movement within the carton.
Strength and Safety:
The combination of a sturdy outer carton and protective foam inner packing is designed to make the overall packaging strong and safe. This meticulous packing approach significantly reduces the risk of the M220Z3-LA3 LCD Display getting damaged or broken during the shipping process.
Transport Safety:
Our packing strategy is aligned with the goal of ensuring that your LCD display arrives at its destination in perfect condition. The robust packaging minimizes the impact of external factors and handling, contributing to a safe and secure transportation experience.
We take pride in our attention to detail when it comes to packaging, recognizing the importance of delivering products in pristine condition. If you have any specific requests or concerns regarding the packing of your M220Z3-LA3 LCD Display, please feel free to communicate with us.
M220Z3-LA3 LCD Display Logistics Information:
Worldwide Shipping:
We offer worldwide shipping to cater to customers across the globe. Whether you are located locally or internationally, our logistics network is designed to deliver the M220Z3-LA3 LCD Display to your specified destination.
Fast Order Processing:
Upon confirming your payment, orders will be processed swiftly. We commit to delivering your M220Z3-LA3 LCD Display within 3 working days from the payment confirmation, ensuring a quick turnaround time.
Express Shipping Partners:
To expedite the shipping process, we have partnered with major express carriers, including DHL, FedEx, UPS, and EMS. These reputable partners are known for their global reach and efficient delivery services.
Additional Taxes or Customs:
It's important to note that we are not responsible for any additional taxes or customs fees that may be incurred with your purchase. These charges, if applicable, are the responsibility of the buyer. We recommend understanding your country's customs policies to anticipate any potential additional costs.
We are committed to providing a seamless and reliable logistics experience. If you have specific shipping preferences or inquiries, please feel free to reach out to our customer support team.
M220Z3-LA3 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of M220Z3-LA3 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of M220Z3-LA3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How can I trace my order of M220Z3-LA3 ?
A: we will give you tracking number then you can trace your order from website.
