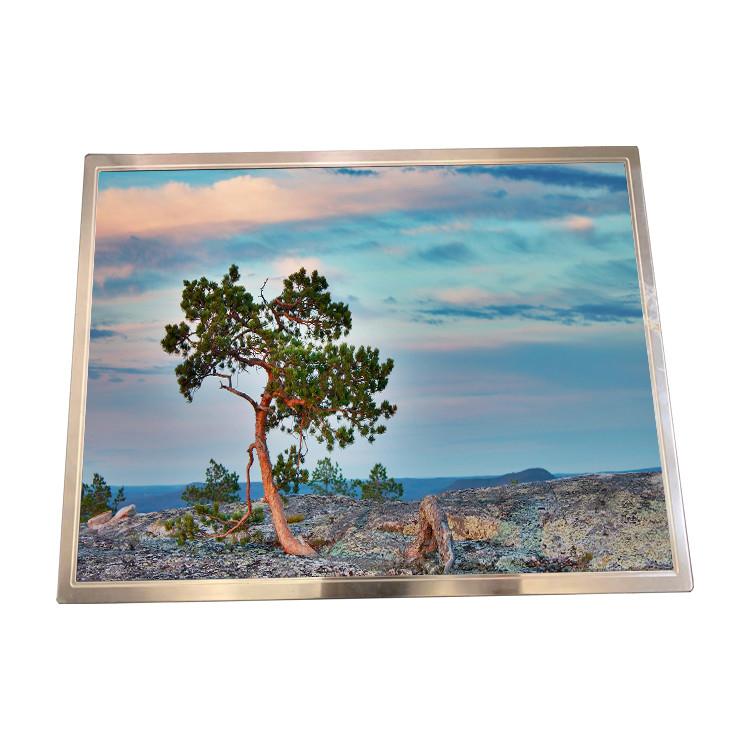

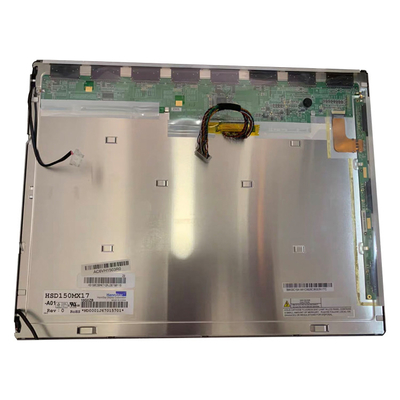

15.0 inch 1024*768 HSD150MX17-A01 LCD Monitors Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD150MX17-A01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD150MX17-A01 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 85PPI | Active Area: | 304.128(W)×228.096(H) Mm |
| Bezel Opening: | 307.4(W)×231.3(H) Mm | Outline Dim.: | 326.5(W)×253.5(H)×10.9(D) Mm |
| Treatment: | Antiglare, Hard Coating (3H) | Weight: | 925/955g (Typ./Max.) |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (1 Ch, 8-bit) 20 Pins Connector |
Product Description
15.0 inch 1024*768 HSD150MX17-A01 LCD Monitors Screen Display
HSD150MX17-A01 LCD Panel Product details :
| HannStar LCD Screen HSD150MX17-A01 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD150MX17-A01 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm |
| Outline Dim. | 326.5(W)×253.5(H)×10.9(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 65/65/45/55 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.2M 68% NTSC |
| Light Source | CCFL [2 pcs] , 30K hours , W/O Driver |
| Weight | 925/955g (Typ./Max.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | perating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 15.0 inch 1024*768 HSD150MX17-A01 LCD Monitors Screen Display | |
HSD150MX17-A01 LCD Screen Payment :
When purchasing the HSD150MX17-A01 LCD Screen, we offer convenient payment options tailored to your preferences and requirements. If you are interested in acquiring a larger quantity of our products, we encourage you to either reach out to us via email or through our online contact channels. This will enable us to discuss your specific needs and potentially provide customized solutions, such as bulk pricing or other considerations.
Our accepted payment methods include:
T/T (Wire Transfer): Bank wire transfers are a secure and direct method of payment. Please contact us for the necessary bank details to facilitate the transfer.
Western Union: A reliable and expedient payment option, Western Union allows for quick and efficient transactions. Contact us for the details required to complete the payment through Western Union.
PayPal: A widely used online payment platform, PayPal provides a secure and user-friendly option for making payments. You can use your PayPal account or pay with a credit/debit card through PayPal.
Escrow: For added security in transactions, we offer the option of using an escrow service. This ensures that payment is held securely until the product is delivered, providing peace of mind for both parties involved.
ALI Trade Security: If you prefer the security provided by ALI's Trade Assurance program, we support transactions through this platform. This adds an extra layer of protection for your purchase.
HSD150MX17-A01 LCD Panel Shipping and Package :
HSD150MX17-A01 LCD Screen Shipping :
When it comes to the shipping of the HSD150MX17-A01 LCD Screen, we prioritize efficiency and accuracy. Here are some important points to consider:
Dispatch Time:
We are committed to swift order processing. Upon receiving your order, we will dispatch your goods within 3 working days. This dedication to prompt handling ensures that you can anticipate the receipt of your products in a timely manner.
Estimated Delivery Time:
Under normal circumstances, you can expect to receive your goods within 27 calendar days from the date of placing the order. However, please be aware that actual delivery times may vary due to factors beyond our control, such as customs procedures or unforeseen shipping delays.
Shipping Information Accuracy:
To guarantee the successful delivery of your order, it is essential to ensure that your shipping information is accurate. Please double-check and confirm that your address, postal code, phone number, and contact person details are all correct before finalizing your order.
Address Modification:
If you wish to have your order shipped to an alternative address, kindly inform us in advance. You can communicate this preference by leaving a message in our transaction records. This proactive communication allows us to adjust the shipping details accordingly and ensures that your order reaches the correct destination.
HSD150MX17-A01 LCD Screen Import duties :
Import duties, taxes, and additional customs charges play a crucial role in the overall cost of purchasing the HSD150MX17-A01 LCD Screen. It is imperative to note that these charges are not integrated into the item prices or shipping fees initially quoted. As a buyer, it is your responsibility to bear all associated costs, if any, and it is advisable to ascertain these potential extra charges before completing the purchase.
When the package arrives, exercise due diligence by inspecting the product for any damages incurred during transportation and confirming the presence of the correct item. If, upon inspection, you find any discrepancies or damages, it is recommended to refuse signing for the package. By doing so, you are safeguarding your right to receive undamaged and correct items.
Our commitment to efficiency is reflected in our order processing timeline. We endeavor to process your order within 2 business days from the receipt of payment. However, please be aware that transit times may vary due to a multitude of reasons beyond our control. Notably, we absolve ourselves of responsibility for delays arising from customs procedures in your respective country.
Should you find yourself without the ordered items after 30 days from dispatch, we encourage you to reach out to us promptly. Our customer support team will diligently track the shipping information and provide you with a swift resolution.
HSD150MX17-A01 LCD Panel FAQ :
Q: If I order HSD150MX17-A01 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for HSD150MX17-A01 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of HSD150MX17-A01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty of HSD150MX17-A01 ?
A: 90 days warranty .
