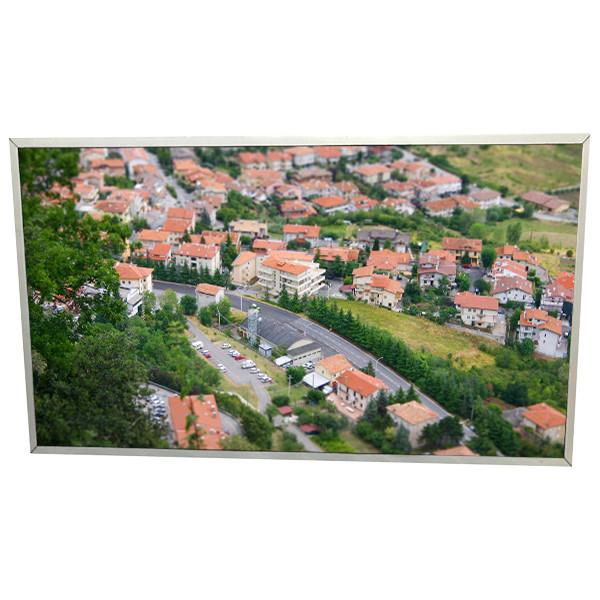

M215H3-LA5 21.5 inch lcd display 1920*1080 lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | M215H3-LA5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M215H3-LA5 | Diagonal Size: | 21.5" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 102PPI | Active Area: | 476.64(W)×268.11(H) Mm |
| Bezel Opening: | 479.8(W)×271.3(H) Mm | Outline Size: | 495.1(W)×292.2(H) ×12(D) Mm |
| Surface: | Glare (Haze 0%), Hard Coating (3H), Reflection 5.0% (Max.) | Panel Weight: | 2.01/2.06Kgs (Typ./Max.) |
| Application: | Desktop Monitor | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
Product Description
M215H3-LA5 21.5 inch lcd display 1920*1080 lcd screen
M215H3-LA5 LCD Panel Product details :
| Chimei Innolux LCD SCREEN M215H3-LA5 | |
|---|---|
| manufacturer | Chimei Innolux |
| Model Name | M215H3-LA5 |
| screen size | 21.5 inch |
| Screen type | LCM , a-Si TFT-LCD |
| Resolution | 1920(RGB)×1080 (FHD) 102PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 476.64 × 268.11 (H×V) |
| physical dimension | 495.1 × 292.2 × 12 (H×V×D) |
| Visual size | 479.8 × 271.3 (H×V) |
| surface treatment | Glare (Haze 0%), Hard coating (3H), Reflection 5.0% (Max.) |
| Brightness | 250 (Typ.)(cd/m²) |
| Contrast | 1000 : 1 (Typ.) (TM) |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 85/85/80/80 (Typ.)(CR≥10) |
| Responding time | 1.5/3.5 (Typ.)(Tr/Td) ms |
| Number of color | 16.7M 72% NTSC |
| Backlight type | 13S6P WLED , 30K hours , No Driver |
| Weight | 2.01/2.06Kgs (Typ./Max.) |
| Apply to | Desktop Monitor |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| M215H3-LA5 21.5 inch lcd display 1920*1080 lcd screen | |
M215H3-LA5 LCD Screen Purchase Attention:
1. Confirming the Screen Model:
Prior to placing your order, it is essential to confirm that the M215H3-LA5 is the correct and required screen model for your needs. Check your device's specifications or documentation to verify compatibility.
2. Uncertain About the Model? Contact Us:
If you are unsure about the model of the screen you need, please do not hesitate to contact us at the earliest opportunity. Our customer service team is here to assist you in identifying the correct model, preventing any potential errors in your purchase.
3. Prevention of Wrong Purchases:
We are committed to helping you avoid purchasing the wrong screen. By reaching out to us before finalizing your order, we can assist in distinguishing the correct model and preventing any compatibility issues.
4. Buyer Responsibility for Mistakes:
In the event that a buyer mistakenly orders an incompatible screen, resulting in the screen being rendered unusable, all associated freight costs will be the responsibility of the buyer. Please exercise due diligence in confirming the model to prevent any inconvenience or additional expenses.
M215H3-LA5 LCD Screen Shipping Information:
Dispatch Time:
Your ordered items are scheduled to be shipped within 72 hours after the payment reflects in our PayPal account. Often, we make efforts to dispatch the items to the shipper on the same day to expedite the shipping process.
Shipping Method:
Normally, your item will be shipped via Chinese [shipping method]. Please be aware that this shipping method typically does not include insurance. However, for transactions where the payment to our PayPal account exceeds $1000.00, we will, at our cost, purchase Chinese insurance to provide added protection during transit.
Insurance Details:
For transactions below $1000.00, the standard shipping will be without insurance. This is to ensure cost-effectiveness for both parties. However, in cases where the payment exceeds $1000.00, we prioritize your shipment's safety and will cover the additional cost of purchasing Chinese insurance.
M215H3-LA5 LCD Panel Shipping and Package :
M215H3-LA5 LCD Screen Returns Policy :
Contact Us for Defective Items:
If you receive defective items, please contact us via Messages within 30 business days of receiving the item. We are committed to resolving any issues promptly.
Wrong Item or Manufacturer Defect:
In the case of a wrong item or a manufacturer defect, please return the item, and we will send you a replacement free of charge. We aim to correct any errors and ensure your satisfaction with our products.
Return Conditions:
The returned item and all accessories must be in their original (unused) condition. Each item is affixed with a warranty label; please refrain from tearing up the label to ensure a smooth return process.
Damage or Loss during Return:
If items are damaged or lost during the return process, the buyer will be responsible for such damage or loss. We recommend that the buyer files a claim with the logistics company to recover the cost of any damage or loss incurred during return.
Shipping Fees Responsibility:
The buyer is responsible for covering the shipping fees associated with returning the items. Please ensure that the items are securely packaged for the return journey.
We strive to make the returns process as straightforward as possible, and our team is here to assist you throughout the process.
M215H3-LA5 LCD Panel FAQ :
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of M215H3-LA5 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for M215H3-LA5 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of M215H3-LA5 at a very low value ?
A: Yes , we can . pls inform us before shipping .
