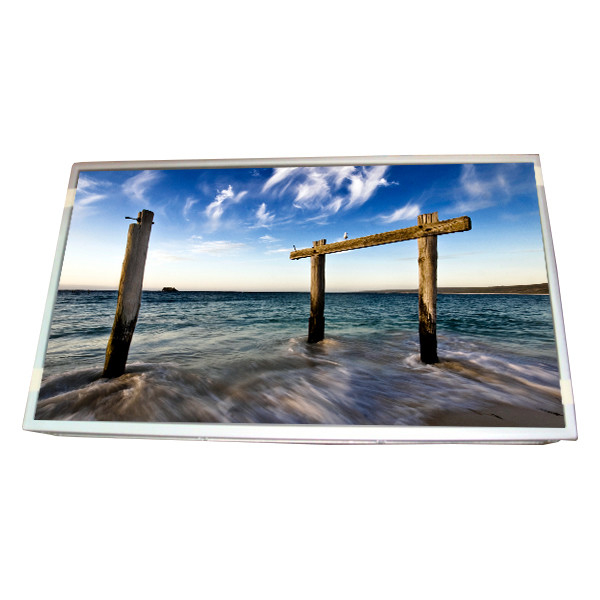

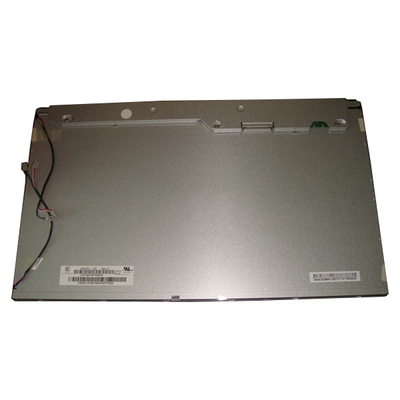

20.0 inch M200O1-L05 1600*900 LCD screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | M200O1-L05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M200O1-L05 | Diagonal Size: | 20.0" |
|---|---|---|---|
| Resolution: | 1600(RGB)×900, HD+ 91PPI | Active Area: | 442.8(W)×249.075(H) Mm |
| Bezel Opening: | 446.8(W)×253.2(H) Mm | Outline(mm): | 462.8(W)×272(H)×17.5(D) |
| Treatment: | Glare (Haze 0%), Hard Coating (3H), Reflection 5.0% (Max.) | Weight: | 2.30/2.35Kgs (Typ./Max.) |
| Touchscreen: | Desktop Monitor | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
Product Description
20.0 inch M200O1-L05 1600*900 LCD screen Display Panel
M200O1-L05 LCD Panel Product details :
| CMO LCD SCREEN M200O1-L05 | |
|---|---|
| Manufacturer | CMO |
| Model Name | M200O1-L05 |
| Screen size | 20.0 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1600(RGB)×900, HD+, 91PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 442.8(W)×249.075(H) mm |
| Outline(mm) | 462.8(W)×272(H) mm |
| Visual size | 446.8(W)×253.2(H) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H), Reflection 5.0% |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Viewing angle | 85/85/80/80 (Typ.)(CR≥10) |
| Responding time | 1.5/3.5 (Typ.)(Tr/Td) |
| Number of color | 16.7M 72% NTSC |
| Backlight type | 4 pcs CCFL , 50K hours , Without Driver |
| Weight | 2.30/2.35Kgs (Typ./Max.) |
| Apply to | Desktop Monitor |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Signal system | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 20.0 inch M200O1-L05 1600*900 LCD screen Display Panel | |
M200O1-L05 LCD Screen Payment Options:
Accepted Payment Methods:
Credit Card
Bank Transfer
Western Union
T/T (Telegraphic Transfer)
Payment Process via ALI:
Upon selecting your preferred payment method, the money will be directly sent to our ALI account.
Confirmation of receipt is crucial. Once you have received the items and confirmed the satisfactory condition on ALI, the ALI center will proceed to transfer your payment to our designated account.
Payment Issue Resolution:
In the event of any issues or concerns related to the payment process, we encourage you to contact us promptly. Our dedicated customer support team is available to assist you in resolving any payment-related queries or challenges.
Important Points to Note:
Confirmation on ALI:
Ensure to confirm the receipt of the items on ALI after you have received them. This step triggers the payment transfer process from ALI to our account.
Direct Payment to ALI Account:
The direct payment to our ALI account adds an extra layer of security to the transaction, ensuring a reliable and transparent payment process.
Contact for Payment Assistance:
Should you encounter any problems during the payment process or have questions about payment options, feel free to reach out to our team for assistance. We are committed to providing support and facilitating a smooth transaction experience.
M200O1-L05 LCD Panel Shipping and Package :
M200O1-L05 LCD Screen Shipping Information :
1. Strict Quality Testing:
Before shipping, each M200O1-L05 LCD screen undergoes rigorous testing to ensure its quality and functionality. Our commitment to quality control is aimed at providing you with a reliable product upon receipt.
2. Fast Dispatch Within 3 Working Days:
Upon receipt of your payment, we will promptly process and ship your order within 3 working days. This quick turnaround is designed to minimize delays and get your product to you as efficiently as possible.
3. Buyer's Responsibility for Customs Duty Fee:
Please be aware that the buyer is responsible for any customs duty fees associated with the shipment. It's essential to consider and adhere to your country's customs regulations and fees.
4. Estimated International Shipping Time:
International shipping typically takes between 10 to 45 business days. The exact duration may vary depending on factors such as destination, customs clearance, and local postal services. We appreciate your patience during this period.
5. Communication for Delayed Parcels:
If, for any reason, you do not receive the parcel within the expected timeframe, we encourage you to contact us. Open communication is vital, and our customer support team is ready to assist you in tracking the shipment and addressing any concerns you may have.
Important Notes:
We prioritize the careful packaging of our products to ensure they reach you in optimal condition.
Keep in mind that shipping times are estimates and may vary based on factors beyond our control.
Tracking information will be provided to facilitate monitoring of your shipment's progress.
M200O1-L05 LCD Screen Return Procedure :
1. Contact the Seller for Authorization:
Initiate the return process by contacting the seller within 7 days of receiving your M200O1-L05 LCD screen. This step is crucial for obtaining return authorization. Please provide details regarding the reason for the return, and our customer support team will guide you through the next steps.
2. Return Within 7 Days of Authorization:
Upon receiving return authorization, ensure that the items are shipped back to the seller within 7 days. Adhering to this timeframe helps in expediting the return process.
3. Original Packaging and Shipping Label:
To facilitate a successful return, all items must be returned in their original packaging with the original shipping label attached. This ensures that the product is protected during transit and can be efficiently processed upon return.
4. Buyer Responsible for Return Postage:
The buyer is responsible for the cost of return postage. We recommend using a shipping method that provides tracking and insurance to guarantee the safe return of the M200O1-L05 LCD screen.
5. Defective Items:
If the item is found to be defective, it will be repaired or replaced at the seller's discretion. Our aim is to resolve any issues promptly and ensure you receive a fully functional product.
6. Returned Items in Working Condition:
Items returned that are found to be in working condition as described will be sent back to the buyer at their expense. We conduct thorough assessments to ensure accurate processing of returns.
7. Shipping Costs Non-Refundable:
Please note that shipping costs, both for the initial purchase and the return, are non-refundable. We appreciate your understanding of this policy.
M200O1-L05 LCD Panel FAQ :
Q: How long will I receive my goods M200O1-L05 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of M200O1-L05 ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: Can I pay my order of M200O1-L05 via credit card ?
A: Yes!you can use your credit card through your Paypal account
