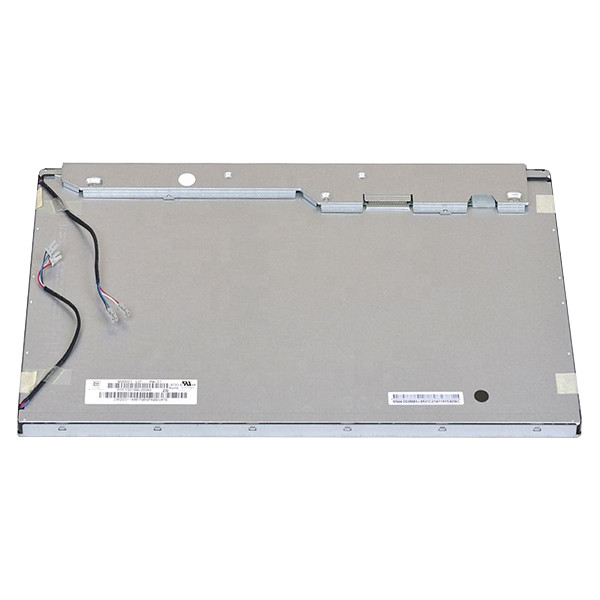

M200O1-L01 20.0 inch tft lcd screen 1600*900 lcd display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | M200O1-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M200O1-L01 | Diagonal Size: | 20.0" |
|---|---|---|---|
| Resolution: | 1600(RGB)×900, HD+ 91PPI | Active Area: | 442.8(W)×249.075(H) Mm |
| Bezel Opening: | 446.8(W)×253.2(H) Mm | Outline Size: | 462.8(W)×272(H) ×17.5(D) Mm |
| Surface: | Antiglare (Haze 25%), Hard Coating (3H) | Weight: | 2.30/2.35Kgs (Typ./Max.) |
| Application: | Desktop Monitor | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
Product Description
M200O1-L01 20.0 inch tft lcd screen 1600*900 lcd display panel
M200O1-L01 LCD Panel Product details :
| CMO LCD SCREEN M200O1-L01 | |
|---|---|
| Manufacturer | CMO |
| Model Name | M200O1-L01 |
| Screen size | 20.0 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1600(RGB)×900 [HD+] 91PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 442.8(H)×249.075(V) mm |
| Outline Dim. | 462.8(H)×272(V) mm |
| Visual size | 446.8(H)×253.2(V) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (TM) |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 85/85/80/80 (Typ.)(CR≥10) |
| Responding time | 1.5/3.5 (Typ.)(Tr/Td) |
| Number of color | 16.7M 72% NTSC |
| Backlight type | CCFL [4 pcs] , 50K hours , W/O Driver |
| Weight | 2.30/2.35Kgs (Typ./Max.) |
| Apply to | Desktop Monitor |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Signal system | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| M200O1-L01 20.0 inch tft lcd screen 1600*900 lcd display panel | |
