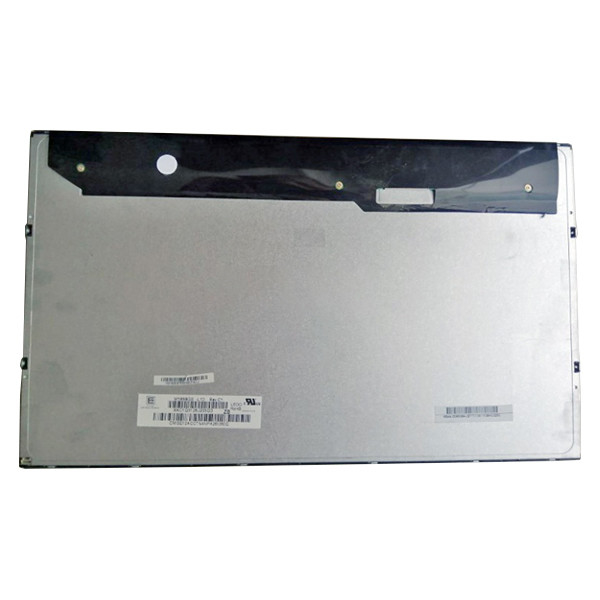

M185BGE-L10 LCD screen display panel for Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | M185BGE-L10 |
| Document: | M185BGE-L10.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M185BGE-L10 | Diagonal Size: | 18.5" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 84PPI | Active Area: | 409.8(W)×230.4(H) Mm |
| Bezel Opening: | 413.4(W)×234.0(H) Mm | Outline Dim.: | 430.37×254.6×11 (H×V×D) |
| Response: | 1.5/3.5 (Typ.)(Tr/Td) Ms | Backlight: | 4 Strings WLED , 40K Hours , No Driver |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (1 Ch, 8-bit) , Connector 30 Pins |
Product Description
M185BGE-L10 LCD screen display panel for Desktop Monitor
M185BGE-L10 LCD Panel Product details :
| Chimei Innolux LCD SCREEN M185BGE-L10 | |
|---|---|
| Manufacturer | Chimei Innolux |
| Model Name | M185BGE-L10 |
| Screen size | 18.5 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 409.8(W)×230.4(H) mm |
| Outline Dim. | 430.37(W)×254.6(H) ×11(D) mm |
| Visual size | 413.4(W)×234.0(H) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast | 700:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 85/85/80/80 (Typ.)(CR≥10) |
| Responding time | 1.5/3.5 (Typ.)(Tr/Td) |
| Number of color | 16.7M 72% NTSC |
| Backlight type | 4 strings WLED , 40K hours , Without Driver |
| Weight | 1.53/1.60Kgs (Typ./Max.) |
| Apply to | Desktop Monitor |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Signal system | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| M185BGE-L10 LCD screen display panel for Desktop Monitor | |
M185BGE-L10 LCD Screen Payment Information:
T/T (Wire Transfer):
Bank Transfer (T/T) is a secure and direct payment method.
You can initiate a wire transfer from your bank to ours, using the provided bank details.
Please ensure accurate information when conducting the wire transfer to avoid any delays.
PayPal:
PayPal is a widely used and secure online payment platform.
You can make payments using your PayPal account or through credit/debit cards linked to your PayPal account.
The process is quick and provides an added layer of security for online transactions.
Western Union:
Western Union is a reliable method for cash transfers.
You can visit a Western Union agent location to make the payment.
Once the payment is made, please provide the necessary details for confirmation.
MoneyGram:
MoneyGram is another option for secure and efficient money transfers.
Visit a MoneyGram agent location to complete the payment.
Ensure that you provide accurate details to facilitate a smooth transaction.
It's important to note that the choice of payment method is flexible, and you can select the option that best suits your preferences and convenience. After selecting your preferred method, follow the provided instructions for a seamless transaction.
If you have any questions or require further assistance regarding the payment process, feel free to contact us.
M185BGE-L10 LCD Panel Shipping and Package :
M185BGE-L10 LCD Screen Package Information:
For the M185BGE-L10 LCD screen, we take great care in packaging to ensure the safe and secure delivery of your order. Here are the details regarding the packaging:
Protective Packaging:
Your M185BGE-L10 LCD screen will be meticulously wrapped in bubble sheets.
This protective layer serves to safeguard the screen from potential damage during transit.
Secure Carton Box:
The wrapped LCD screen will then be placed in a sturdy and hard Carton Box.
This outer layer provides an additional level of protection, shielding the screen from external impacts.
Testing Instructions:
Upon receiving the parcel, we recommend testing the LCD screen as soon as possible.
Ensure that the panel is in good working condition before proceeding with the installation.
Installation Guidelines:
After confirming the functionality, you can proceed with the installation of the LCD screen.
Please follow the standard installation procedures to ensure a proper fit.
Communication in Case of Issues:
If, for any reason, the LCD screen doesn't work as expected, we encourage you to contact us.
Please refrain from opening a dispute without prior communication. We are committed to resolving any issues you may encounter.
Important Precaution:
Before testing or installing the LCD screen, it's crucial to power off your device or remove the battery.
This precautionary measure helps prevent any potential issues during the testing and installation process.
We prioritize the safe delivery of your M185BGE-L10 LCD screen and strive to provide comprehensive instructions for testing and installation.
M185BGE-L10 LCD Screen Shipment Details:
Global Shipping with Tracking:
We proudly offer worldwide shipping for the M185BGE-L10 LCD screen, and each order is assigned a tracking number. This allows you to monitor the status and location of your shipment throughout the delivery process.
Swift Processing Time:
Your item will be dispatched promptly within 2 business days after the payment has been verified. We understand the importance of timely shipping and strive to get your order on its way as quickly as possible.
Service Transit Time and Holiday Considerations:
The transit time for your shipment is determined by the carrier and excludes weekends and holidays. It's essential to note that transit times may vary, especially during peak seasons such as Christmas and the period leading up to the Chinese New Year Holiday. During these times, increased demand and full warehouses may result in delays.
Timely Communication for Customer Satisfaction:
Your satisfaction is our priority. If, for any reason, you haven't received your items within 30 days after payment for postage delivery (e.g., using China Post), please notify us. We will promptly track the parcel and provide you with an update. Our goal is to ensure customer satisfaction throughout the entire shipping process.
Versatile Shipping Options:
We support a variety of shipping methods to cater to your preferences. Whether you prefer expedited services like DHL, UPS, and FedEx or standard options like EMS, HK Post, SG Post, or China Post, we aim to accommodate your needs.
M185BGE-L10 LCD Panel FAQ :
Q: How long will I receive my goods M185BGE-L10 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of M185BGE-L10?
A:Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of M185BGE-L10 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Do you accept sample orders of M185BGE-L10 ?
A: Of course!sample order is welcome !
