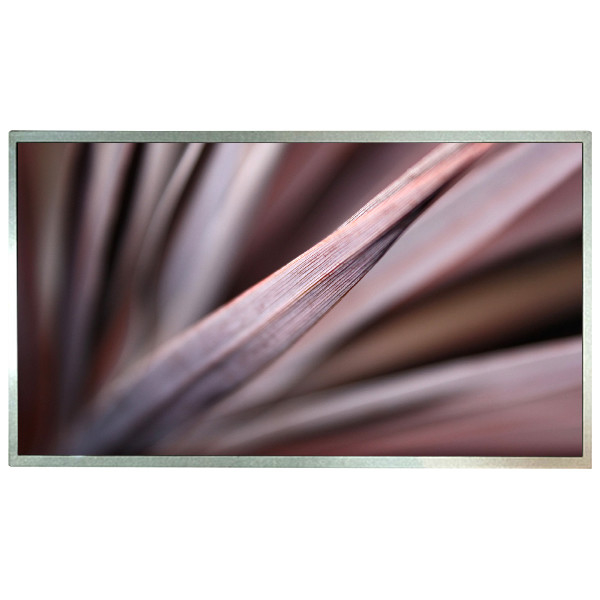

M185B3-LA1 LCD screen display panel for Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | M185B3-LA1 |
| Document: | M185B3-LA1.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M185B3-LA1 | Diagonal Size: | 18.5" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 84PPI | Active Area: | 409.8(W)×230.4(H) Mm |
| Bezel Opening: | 413.4(W)×234.0(H) Mm | Outline Dim.: | 430.37(W)×254.6(H) ×11(D) Mm |
| Response Time: | 1.3/3.7 (Typ.)(Tr/Td) | Lamp Type: | WLED [13S8P] , 30K Hours , W/O Driver |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (1 Ch, 8-bit) , 30 Pins Connector |
Product Description
M185B3-LA1 LCD screen display panel for Desktop Monitor
M185B3-LA1 LCD Panel Product details :
| Chimei Innolux LCD SCREEN M185B3-LA1 | |
|---|---|
| Manufacturer | Chimei Innolux |
| Model Name | M185B3-LA1 |
| Screen size | 18.5 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 [WXGA] 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 409.8(H)×230.4(V) mm |
| Outline Size | 430.37(H)×254.6(V) ×11(D) mm |
| Visual size | 413.4(H)×234.0(V) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (TM) |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 85/85/80/80 (Typ.)(CR≥10) |
| Responding time | 1.3/3.7 (Typ.)(Tr/Td) |
| Number of color | 16.7M 70% NTSC |
| Backlight type | WLED [13S8P] , 30K hours , W/O Driver |
| Weight | 1.53/1.58Kgs (Typ./Max.) |
| Apply to | Desktop Monitor |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Signal system | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| M185B3-LA1 LCD screen display panel for Desktop Monitor | |
