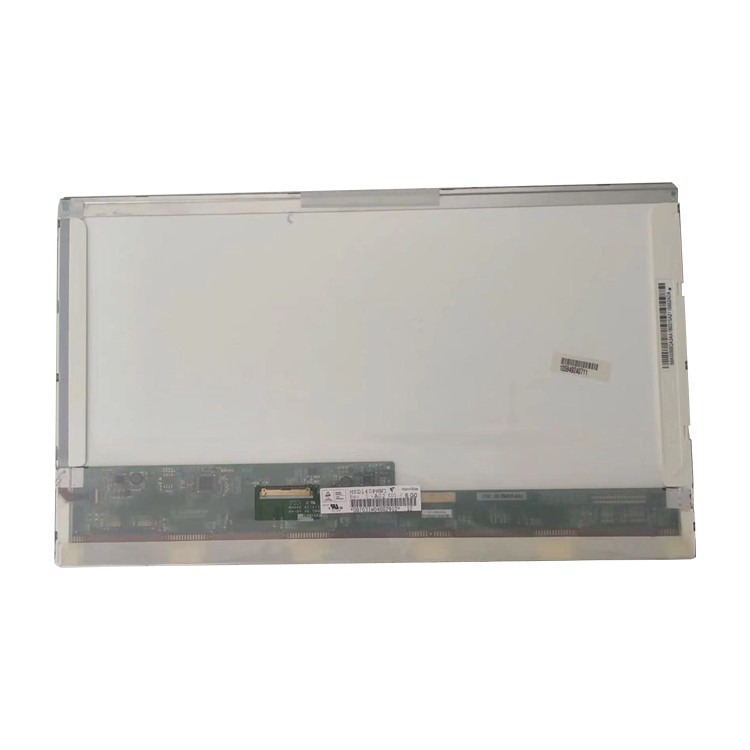

14.0 inch TFT LCD Screen Display HSD140PHW1-A02 With 1366*768 LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD140PHW1-A02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD140PHW1-A02 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 112PPI | Active Area: | 309.399(W)×173.952(H) Mm |
| Bezel Opening: | 312.80(W)×177.35(H) Mm | Outline Dim.: | 323.5(W)×192(H)×5.2(D) Mm |
| Response Time: | 8 (Typ.)(Tr+Td) | Form Style: | Wedge (PCBA Bent, T≥5.2mm) |
| Designed For: | Laptop | Interface Type: | LVDS (1 Ch, 6-bit) 40 Pins Connector |
Product Description
14.0 inch TFT LCD Screen Display HSD140PHW1-A02 With 1366*768 LCD Panel
HSD140PHW1-A02 LCD Panel Product details :
| HannStar LCD Screen HSD140PHW1-A02 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD140PHW1-A02 |
| Diagonal Size | 14.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 112PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 309.399(W)×173.952(H) mm |
| Bezel Opening | 312.80(W)×177.35(H) mm |
| Outline Dim. | 323.5(W)×192(H)×5.2(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 65% NTSC |
| Light Source | WLED , 10K hours , With LED Driver |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit) 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 14.0 inch TFT LCD Screen Display HSD140PHW1-A02 With 1366*768 LCD Panel | |
HSD140PHW1-A02 LCD Screen Ordering Guidelines :
To ensure a seamless and accurate order placement, we kindly request your attention to the following details:
1. Verify Laptop Compatibility:
Before placing your order, it is crucial to check whether the HSD140PHW1-A02 LCD screen is compatible with your laptop model. Refer to our compatible list or specify whether your laptop has a wide screen or a standard screen. This step helps prevent the inconvenience of ordering the wrong item.
2. Confirm LCD Screen Size and Resolution:
Double-check the LCD screen size and resolution of the HSD140PHW1-A02 to match the specifications you require. This ensures that the screen you order aligns perfectly with your expectations and meets the specific needs of your laptop.
3. Inspect Data Connector Type and Position:
Pay close attention to the data connector details, including the number of pins (14pin, 20pin, 30pin(S M L), 40pin(S,M,L), 50pin, 60pin), and its position on the LCD screen. This information is vital in ensuring that the replacement screen seamlessly integrates with your laptop's existing hardware.
4. Verify Physical Resolution Pixels:
Check the physical resolution pixels of the HSD140PHW1-A02 LCD screen. This information is critical for achieving optimal display quality. Ensure that the resolution aligns with your preferences and meets the visual standards you desire.
By adhering to these guidelines, you significantly reduce the risk of ordering the wrong item or encountering compatibility issues. We prioritize your satisfaction, and these steps are designed to streamline the ordering process, providing you with a hassle-free experience.
If you have any uncertainties or require assistance in verifying these details, our customer support team is readily available to guide you through the selection process. We appreciate your attention to these considerations, and we look forward to fulfilling your order accurately and efficiently.
HSD140PHW1-A02 LCD Panel Shipping and Package :
HSD140PHW1-A02 LCD Screen Shipping :
1. Global Shipping Convenience:
Our commitment extends worldwide! We take pride in our ability to deliver HSD140PHW1-A02 LCD screens to customers around the globe. Whether you're located in bustling urban centers or remote corners of the world, our efficient shipping services are designed to reach you.
2. Address Verification:
To ensure a seamless delivery experience, please double-check and confirm the accuracy of your shipping address. A valid and precise address is crucial for the successful delivery of your order. Additionally, providing an up-to-date phone number is equally important, as it facilitates timely communication and ensures any unforeseen delivery challenges are quickly addressed.
3. Swift Dispatch Within 72 Working Hours:
Time is of the essence, and we understand the urgency associated with your purchase. As soon as your payment is cleared, our dedicated team initiates the process of preparing your order for shipment. Rest assured, all items will be dispatched within 72 working hours, minimizing any unnecessary delays.
4. Real-time Tracking for Peace of Mind:
We recognize the importance of staying informed about the status of your order. Therefore, upon dispatch, we provide you with a tracking number. This number allows you to monitor the real-time progress of your parcel as it makes its way to your doorstep. Stay in control and stay informed with our comprehensive tracking system.
5. Reliable Customer Support:
Should you have any questions or concerns regarding your shipment, our customer support team is readily available to assist you. We believe in fostering a transparent and responsive relationship with our customers, ensuring that your experience with our products and services exceeds expectations.
6. Secure Packaging for Safe Transit:
The integrity of your order is our priority. All HSD140PHW1-A02 LCD screens are meticulously packaged to withstand the rigors of transit. Our packaging is designed to protect your purchase from external elements and ensure that it arrives in pristine condition, ready to meet your expectations.
In summary, our commitment to global shipping, accurate address verification, swift dispatch, real-time tracking, responsive customer support, and secure packaging underscores our dedication to providing a seamless and reliable shipping experience for your HSD140PHW1-A02 LCD screen.
HSD140PHW1-A02 LCD Screen Return Policy :
1. Return Window of 30 Days:
We understand that circumstances may change, and we want you to be completely satisfied with your purchase. Therefore, all unnecessary items must be returned within 30 days from the date of purchase. Your satisfaction is our priority, and we aim to make the return process as smooth as possible.
2. Customer Responsibility for Returns:
As the customer, you are responsible for initiating the return process and covering the associated return shipping costs. Please ensure that the returned items are in their original condition, including all accessories and packaging.
3. Requirement for RMA Number:
To facilitate a prompt and efficient return process, all returned products must have a valid Return Merchandise Authorization (RMA) number. This number is obtained by contacting our customer support team. Along with the RMA number, a detailed description of the defect or reason for return must be included.
4. Displaying RMA Number on Packaging:
It is crucial to display the RMA number prominently on the outside of the packaging box. This helps our warehouse team quickly identify and process your return upon receipt. Failure to display the RMA number may result in delays in processing your return.
5. Notification of Carrier Damage:
In the unfortunate event that your product is damaged during transit, please notify us within 24 hours of receiving the shipment. This allows us to take swift action with the carrier and initiate the necessary steps to rectify the situation. We prioritize the timely resolution of any issues related to carrier-induced damages.
6. Warranty Information:
All warranties are covered by the manufacturer or foundation associated with the product. It's important to note that YONGS is not responsible for any damage that may occur during the return process. Our responsibility extends to ensuring the product's condition upon receipt, and any damage incurred during return shipping is outside our purview.
HSD140PHW1-A02 LCD Panel FAQ :
Q: Do you accept sample orders of HSD140PHW1-A02 ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of HSD140PHW1-A02 vai credit card?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of HSD140PHW1-A02 ?
A: The order will be shipped within 2-3 working days after received your payment.
