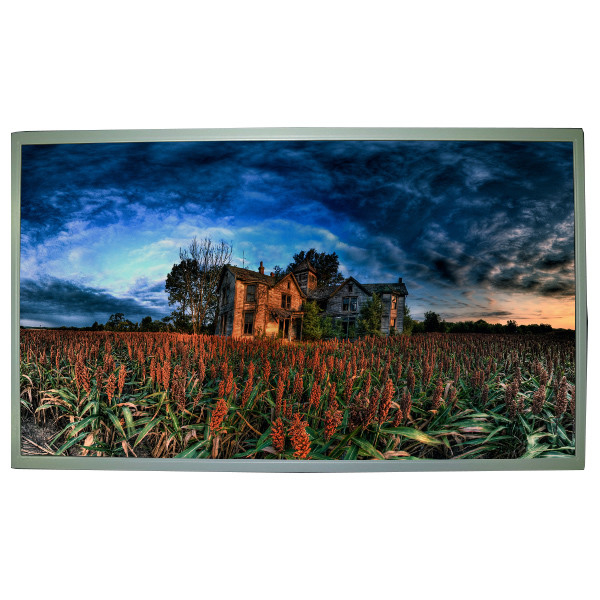

LCD Display Screen 18.5 inch 1366*768 M185B1-L06 LCD panel
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | M185B1-L06 |
| Document: | M185B1-L06.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M185B1-L06 | Diagonal Size: | 18.5" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 84PPI | Active Area: | 409.8(W)×230.4(H) Mm |
| Bezel Opening: | 413.4(W)×234.0(H) Mm | Outline Dim.: | 430.37(H)×254.6(V) ×16.75(D) Mm |
| Treatment: | Antiglare (Haze 25%), Hard Coating (3H) | Weight: | 1.97/2.00Kgs (Typ./Max.) |
| Designed For: | Desktop Monitor | Interface Type: | LVDS (1 Ch, 8-bit) , 30 Pins Connector |
Product Description
LCD Display Screen 18.5 inch 1366*768 M185B1-L06 LCD panel
M185B1-L06 LCD Panel Product details :
| CMO LCD SCREEN M185B1-L06 | |
|---|---|
| Brand | CMO |
| Model Name | M185B1-L06 |
| Screen size | 18.5 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 [WXGA] 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 409.8(H)×230.4(V) mm |
| Outline(mm) | 430.37(H)×254.6(V) ×16.75(D) mm |
| Visual size | 413.4(H)×234.0(V) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast | 700:1 (Typ.) (TM) |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 45/45/20/45 (Typ.)(CR≥10) |
| Responding time | 1.3/3.7 (Typ.)(Tr/Td) |
| Number of color | 16.7M 72% NTSC |
| Backlight type | CCFL [2 pcs] , 40K hours , W/O Driver |
| Weight | 1.95/2.00Kgs (Typ./Max.) |
| Apply to | Desktop Monitor |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Signal system | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LCD Display Screen 18.5 inch 1366*768 M185B1-L06 LCD panel | |
Welcome to YONGS!
About Us:
YONGS is a leading provider of LCD screens and related products, offering a diverse range of displays to meet your specific needs. With a focus on quality and innovation, we cater to a wide customer base, providing products ranging from 1.5-inch to 88-inch LCD screens, LCD test motherboards, portable displays, and customizable solutions.
Our Product Range:
LCD Screens: We specialize in LCD screens of various sizes, ensuring that you find the perfect display for your requirements. Whether you need a compact 1.5-inch screen or a larger 88-inch display, we have a diverse inventory to meet your specifications.
LCD Test Motherboards: In addition to LCD screens, we offer LCD test motherboards to facilitate testing and integration processes. Our test motherboards are designed to ensure the compatibility and functionality of LCD screens, providing a comprehensive solution for your testing needs.
Portable Displays: Our selection includes portable displays that combine convenience with high-quality visuals. These displays are suitable for a range of applications, offering flexibility and ease of use for users on the go.
Customization Options:
At YONGS
, we understand that unique projects may require special considerations. Therefore, we offer customization services for portable displays. If you have specific requirements, such as special models, unique LCD screens, or a DIY project in mind, our customer service team is ready to assist you. We can help you find or create the perfect solution tailored to your project's specifications.
Why Choose Us:
Diverse Inventory: We offer a comprehensive range of LCD screens and related products to meet various needs.
Quality Assurance: Our products undergo rigorous quality checks to ensure durability and performance.
Customization Services: We provide tailored solutions for projects that require special considerations.
Expert Customer Service: Our dedicated customer service team is available to assist you with any inquiries or customization requests.
Contact Us:
For inquiries, orders, or customization requests, please contact our customer service directly. We are committed to providing exceptional products and services to meet your display needs. Thank you for choosing YONGS.
M185B1-L06 LCD Panel Shipping and Package :
M185B1-L06 LCD Screen Shipping :
Thank you for choosing YONGS for your LCD screen needs. Here's some important information regarding the shipping process for the M185B1-L06 LCD Screen:
Shipping Timeframe:
We understand the importance of timely delivery. We will dispatch your item via Registered Airmail within 2 business days after the payment has been cleared. Please note that business/working days exclude weekends and holidays. While we strive for swift delivery, shipping times may vary due to customs clearance, holidays, or unforeseen circumstances.
Customs and Possible Delays:
Occasionally, customs procedures, holidays, or other unpredictable events may cause slight delays in shipping. We appreciate your understanding in such situations. If you have specific delivery time requirements, please contact us for express shipping details to expedite the process.
Worldwide Shipping as Gift:
We ship parcels worldwide and mark them as gifts. This ensures a smoother customs process. It's important to provide us with the correct shipping address to avoid any delivery issues.
Signature Requirement:
For added security, our packages are shipped with a signature requirement. If there is no one available to sign for the package upon delivery, it will be returned. We recommend checking the shipping carrier's tracking information for the expected delivery date and ensuring that someone is available to receive the package. If missed, the package can be picked up at your local post office.
Express Shipping Options:
If you require faster delivery, please contact us to discuss express shipping options. We are happy to provide details on expedited shipping services available for your location.
We aim to provide a reliable and transparent shipping process. If you have any questions, concerns, or specific shipping requirements, feel free to reach out to our customer service team.
M185B1-L06 LCD Screen Return :
We understand that sometimes issues may arise with your order for the M185B1-L06 LCD Screen. Here is our return policy to ensure a smooth and satisfactory resolution:
Damaged or Wrong Item Received:
If you receive a damaged or incorrect item, please reach out to us immediately via message. We will promptly arrange the return process and work towards resolving the issue. We kindly request that you refrain from leaving negative feedback or opening any cases before contacting us to allow for a timely and satisfactory resolution.
Return Period:
Returns are accepted within 30 days after receiving the item. This provides you with a reasonable timeframe to inspect the product and decide if it meets your expectations.
Safe Packaging for Returns:
When initiating a return, it's crucial to pack the product securely, similar to the original packaging. Given that LCD screens are fragile, proper packaging is essential to prevent any damage during the return transit. We recommend using the same packaging that the product was initially delivered in.
Return Shipping Costs:
In cases where the buyer has purchased the wrong product, wrong size, or for any other reasons that are the responsibility of the buyer, the buyer is responsible for the return shipping costs. This includes situations where the product did not meet expectations due to buyer error.
Our goal is to address any concerns or issues you may have with your order promptly and professionally. We appreciate your cooperation in following these return guidelines to ensure a hassle-free process. If you have any questions or need assistance with the return, please don't hesitate to contact us. We are here to help and ensure your satisfaction with the M185B1-L06 LCD Screen and our service.
M185B1-L06 LCD Panel FAQ :
Q: Can I pay my goods M185B1-L06 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods M185B1-L06 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: How to make payment for M185B1-L06 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of lcd module M185B1-L06 at a very low value ?
A: Yes , we can . pls inform us before shipping .
